(U30-12A)

3-Year Limited Warranty

UAG Services stands behind the Ultra-Slim 12W Amber LED Warning Light Head with a 3-year limited warranty. This warranty covers defects in materials and workmanship under normal use. If your light head fails due to a manufacturing defect, we will repair or replace it at no cost. The warranty does not cover damage from improper installation, misuse, or external factors. Proof of purchase is required for all warranty claims.

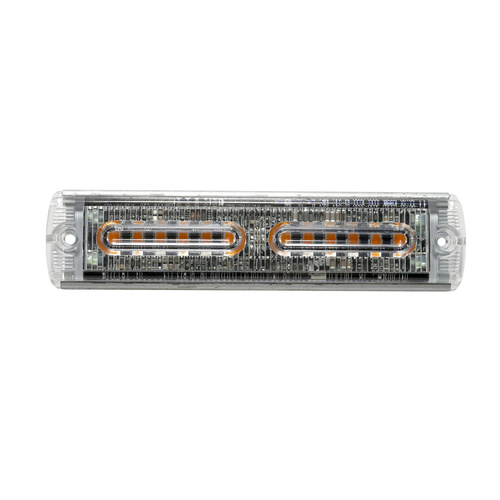

• High-Intensity Illumination: 12 x 1W LEDs with TIR lens for superior brightness and visibility.
• Versatile Flash Patterns: 19 customisable patterns, including single, double, and quad flashes at 75 or 120 FPM.
• Dimmable Control: Adjust brightness for optimal performance in any lighting condition.
• Synchronized Flashing: Connect up to six units for coordinated flash patterns.
• Ultra-Slim Design: Compact 119 x 7.5 x 28 mm size for easy installation on any vehicle.
• Rugged Durability: IP67 waterproof and dustproof rating for harsh environments.
• Certified Performance: Meets ECE R65 Class 1 standards for emergency vehicle compliance.
• Wide Voltage Range: Operates on 10-30Vdc, suitable for various vehicles and machinery.
• Easy Installation: Surface-mount design with clear wiring instructions for quick setup.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Light Characteristics:

• LED Power: 12 x 1W LEDs
• LED Color: Amber
• Lens Type: TIR
• Flash Patterns: 19 (Single, Double, Quad Flash at 75/120 FPM, Steady Burn)
• Flash Rate: 1-4 Hz

Electrical Characteristics:

• Voltage: 10-30Vdc
• Max Power Consumption: 1.8A at 12.8Vdc
• Fuse: 2A

Physical Characteristics:

• Dimensions: 119 mm (L) x 7.5 mm (W) x 28 mm (H)
• Mounting: Surface mount
• Waterproof Rating: IP67
• Operating Temperature: -20°C to +65°C

Standards and Certifications:

• Compliance: ECE R65 Class 1, ECE R10
• Application: Emergency Services, Vehicles, Trucks, Plant, Machinery

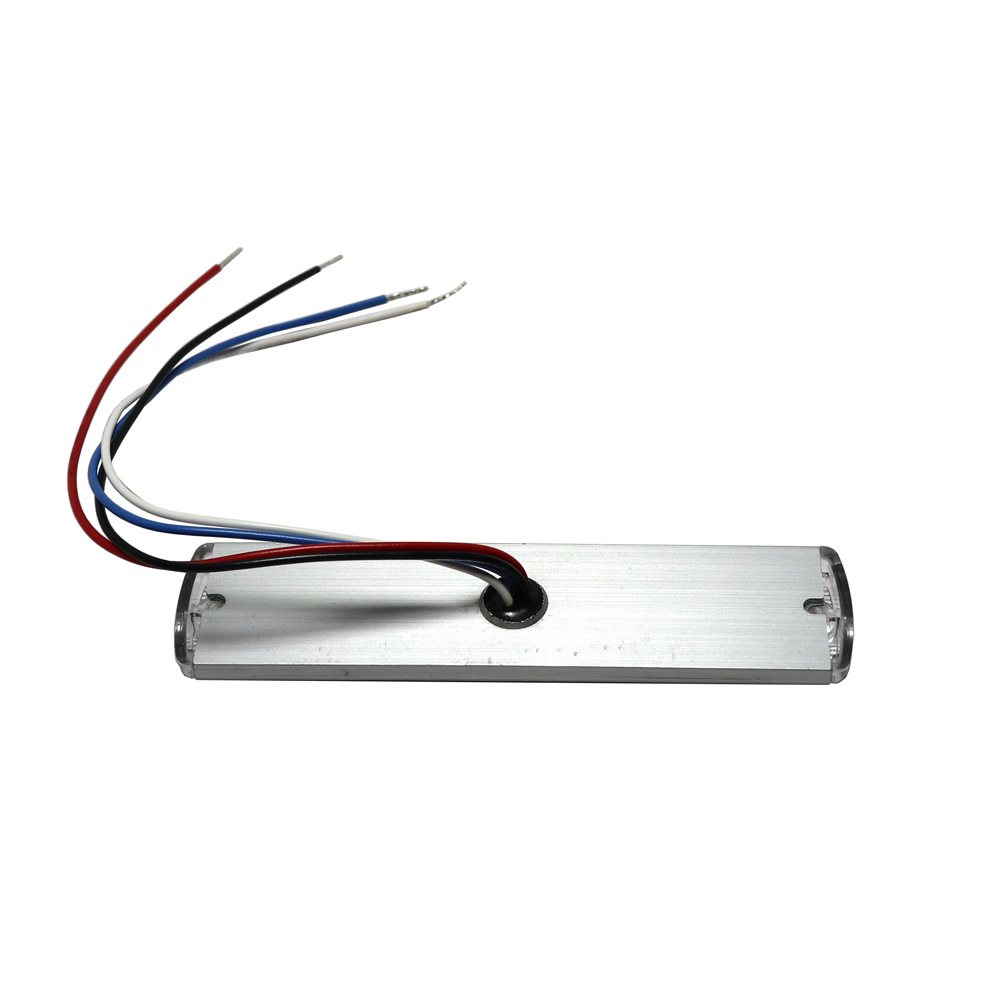

Wiring Instructions:

• Connect RED Wire to +VDC (Fuse @2A)
• Connect BLACK wire to chassis ground
• Connect BLUE wire to BLACK (GND) wire momentarily to select next flash pattern
• Connect BLUE wire to BLACK wire for greater than 5 sec. to turn off the unit.
• Connect WHITE wire to BLACK wire (GND) for dimming function

Flash Patterns:

1. SINGLE FLASH PH 1 75FPM
2. SINGLE FLASH PH 2 75FPM
3. SINGLE FLASH ALT 75FPM
4. DOUBLE FLASH PH 1 75FPM
5. DOUBLE FLASH PH 2 75FPM
6. DOUBLE FLASH ALT 75FPM
7. QUAD FLASH PH 1 75FPM
8. QUAD FLASH PH 2 75FPM
9. QUAD FLASH ALT 75FPM
10. SINGLE FLASH PH 1 120FPM
11. SINGLE FLASH PH 2  120FPM
12. SINGLE FLASH ALT  120FPM
13. DOUBLE FLASH PH 1 120FPM
14. DOUBLE FLASH PH 2 120FPM
15. DOUBLE FLASH ALT 120FPM
16. QUAD FLASH PH 1 120FPM
17. QUAD FLASH PH 2 120FPM
18. QUAD FLASH ALT 120FPM
19. STEADY BURN

SKU	U30-12A
Barcode #	2020124227587
Brand	UAG Services
Shipping Weight	0.0600kg
Shipping Width	0.045m
Shipping Height	0.045m
Shipping Length	0.013m
Shipping Cubic	0.000026000m3
Unit Of Measure	ea
