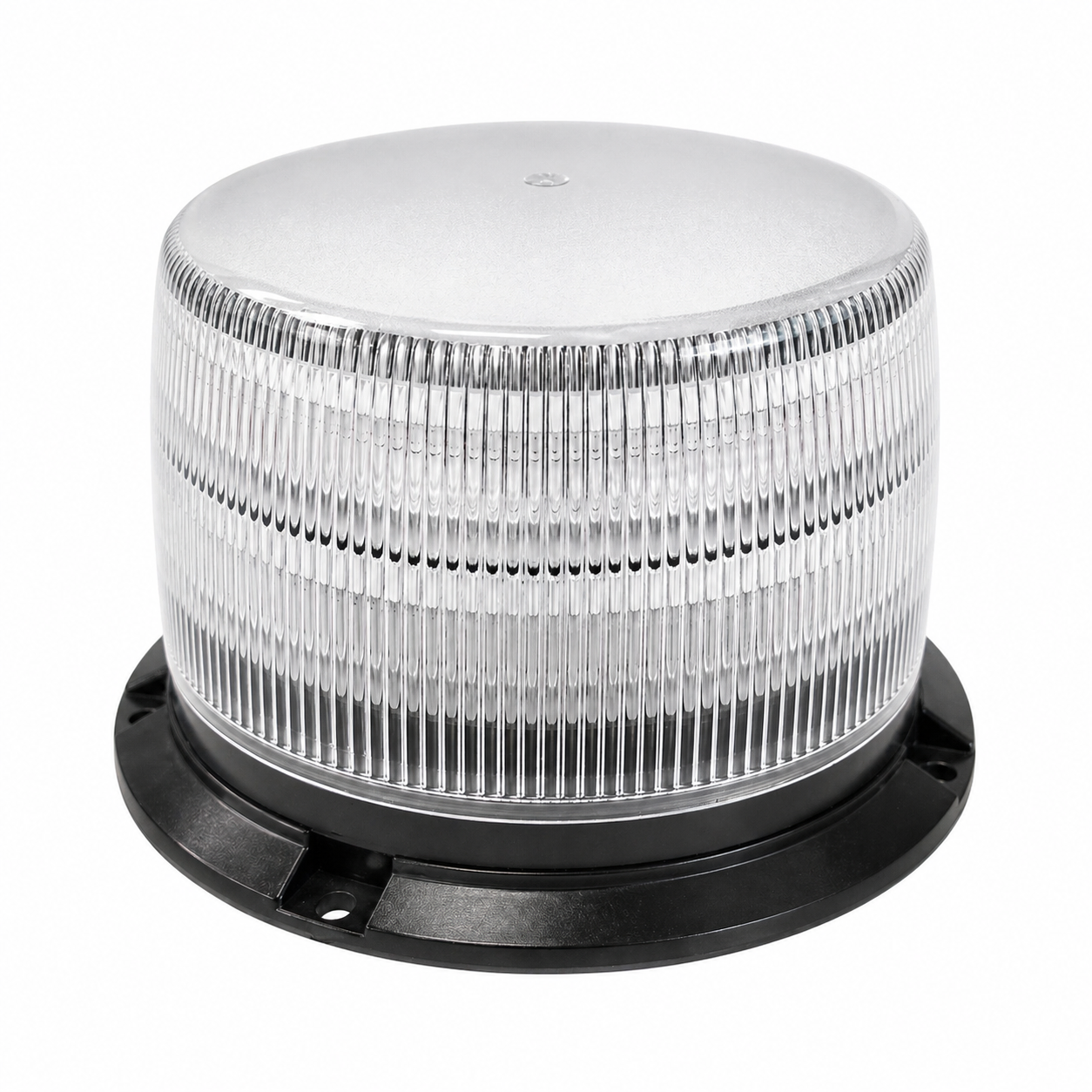

U7-24CAT Amber LED Warning Beacon provides amber hazard warning for traffic control vehicles, civil construction vehicles, council fleets and contractor trucks operating in live traffic and worksite environments. The beacon signals vehicle presence during lane closures, mobile works, roadside maintenance and site access activity where nearby traffic, pedestrians and workers need vehicle movement awareness.

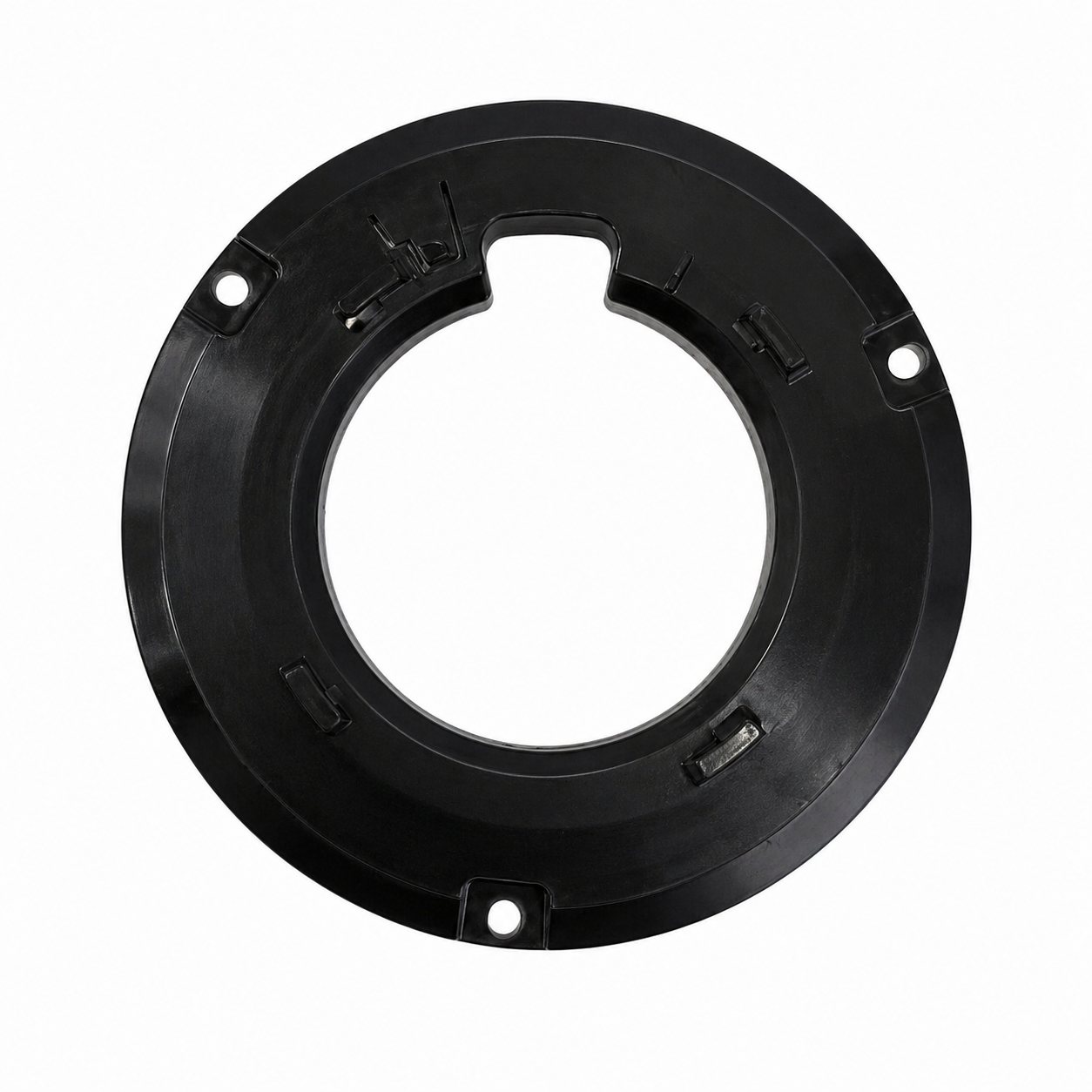

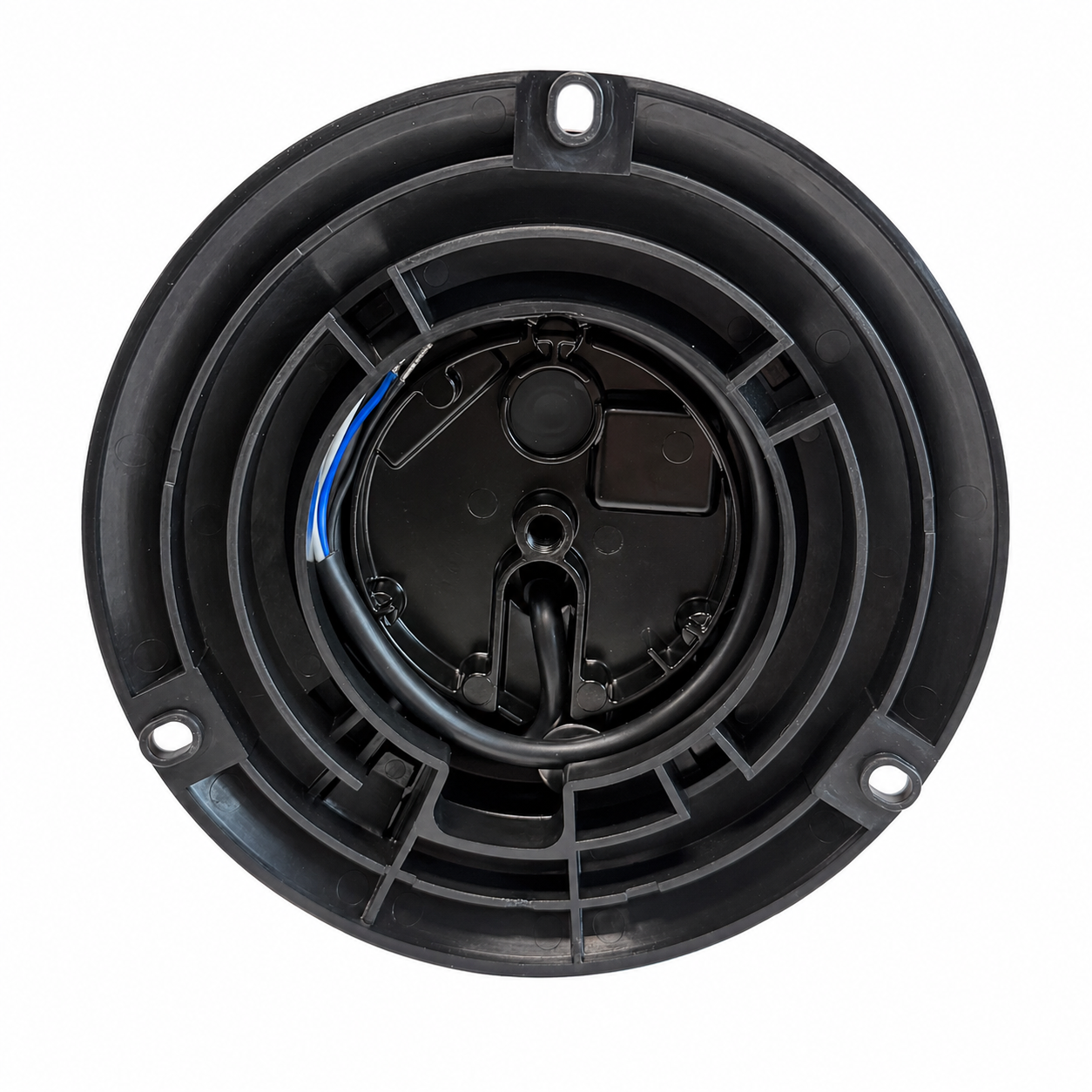

The beacon uses a two-part mounting system consisting of a fixed base ring and a removable beacon body. The base ring is permanently mounted to the vehicle using a three-point fixing pattern on trays, headboards, roof racks or dedicated mounting plates. The beacon body is then positioned onto the base and rotated to lock into place, allowing the unit to be removed or replaced without disturbing the mounted base hardware.

The internal LED system uses a 24 LED single-colour configuration, delivering multiple selectable flash patterns including ECE R65 Class 2 modes. The amber output is projected through a clear high dome lens, maintaining a neutral appearance when not active while delivering full amber warning function when energised. Pattern change, dimming and steady-on functions are controlled through external wiring inputs.

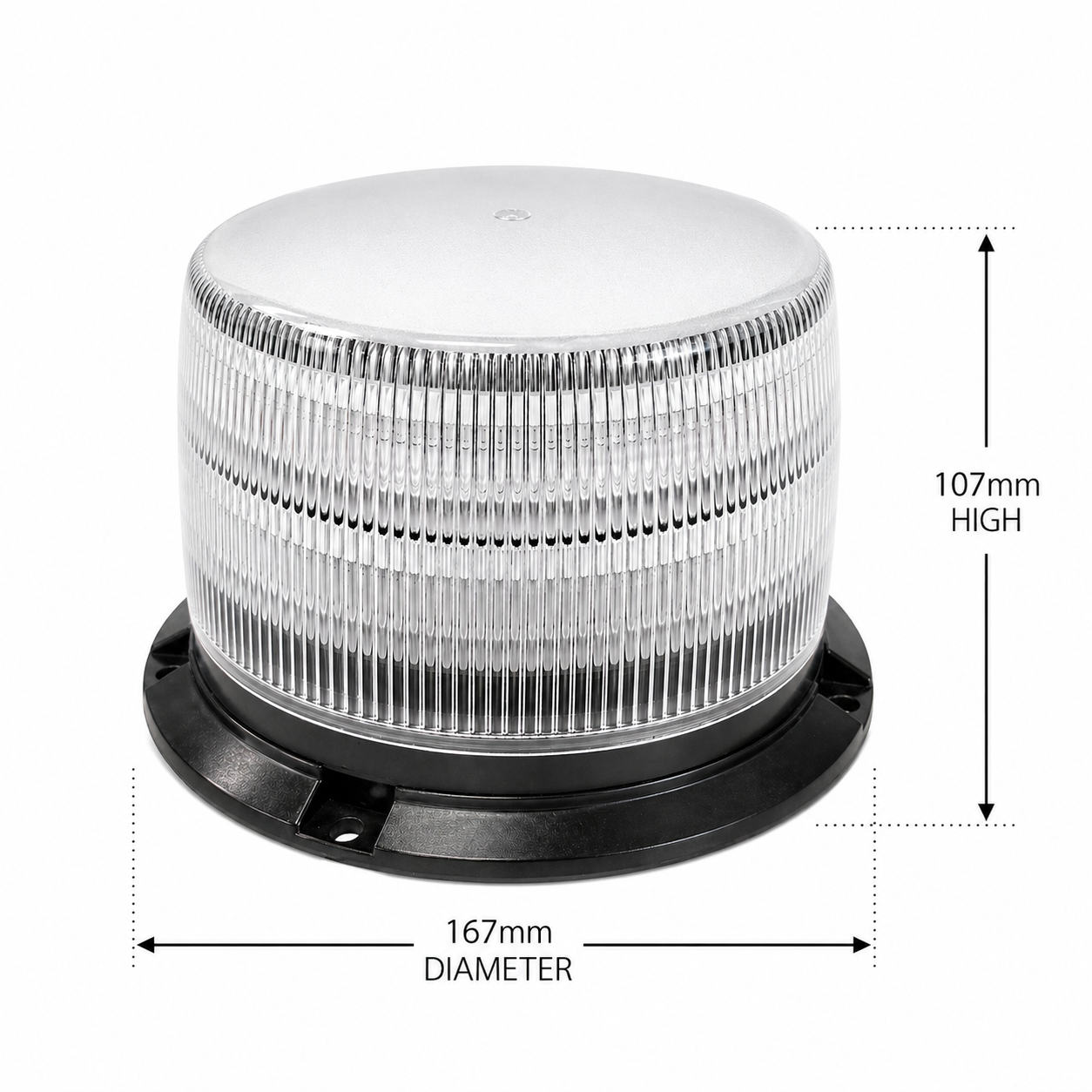

Constructed for exposed vehicle environments, the unit is rated to IP65 and operates across 12V to 48V DC systems. The housing supports continuous use in vibration, dust and weather exposure, with an operating temperature range of -30°C to +50°C and storage range down to -40°C. Maximum current draw is 3.24A at 12.8V. This clear lens version is suited to installations where amber warning output is required with a more neutral outer lens appearance. For the same beacon with an amber outer lens, use the U7-24AAT 48W Amber LED Flashing Beacon.

Approved to ECE R65 Class 2 and ECE R10, this beacon supports vehicle warning systems where confirmed beacon approval and electromagnetic compatibility are required. It integrates into vehicle electrical systems alongside arrow boards, work lights and other auxiliary warning equipment as part of a complete traffic control fitout.

In real-world deployment, this beacon is fitted to traffic control utes, civil construction vehicles, council fleets and contractor trucks where compliant amber warning output is required as part of the main vehicle warning setup. The quick-lock mounting system allows damaged units to be swapped out on site without tools, reducing downtime and keeping vehicles operational.
