(U7-24AAT)

UAGS Warning Light Warranty - 3-Year Limited Coverage
This product is imported and branded by UAG Services Pty Ltd, which acts as the manufacturer of this item for warranty purposes. It is covered by a 3-year limited warranty against defects in materials and workmanship under normal use.

This warranty does not cover normal wear and tear, weathering or UV degradation, accidental or impact damage, water ingress caused by damaged seals not reported at delivery, incorrect or unauthorised installation, unauthorised modification, or use outside the product's stated voltage and operating conditions. Installation should be carried out by a qualified auto electrician; damage caused by DIY wiring is not covered.

To make a warranty claim, contact UAG Services Pty Ltd (Gate 2, 7 Royan Place, Bayswater North VIC 3153) at [email protected] or (03) 8750 0926 with your order reference, a description of the fault and photos of the product. Claims are subject to inspection and approval. Where a defect is confirmed, UAG Services Pty Ltd will repair, replace or refund the product at its discretion. Return shipping costs are handled in accordance with the UAGS Returns Policy unless otherwise required under Australian Consumer Law.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to these rights and does not limit or exclude them.

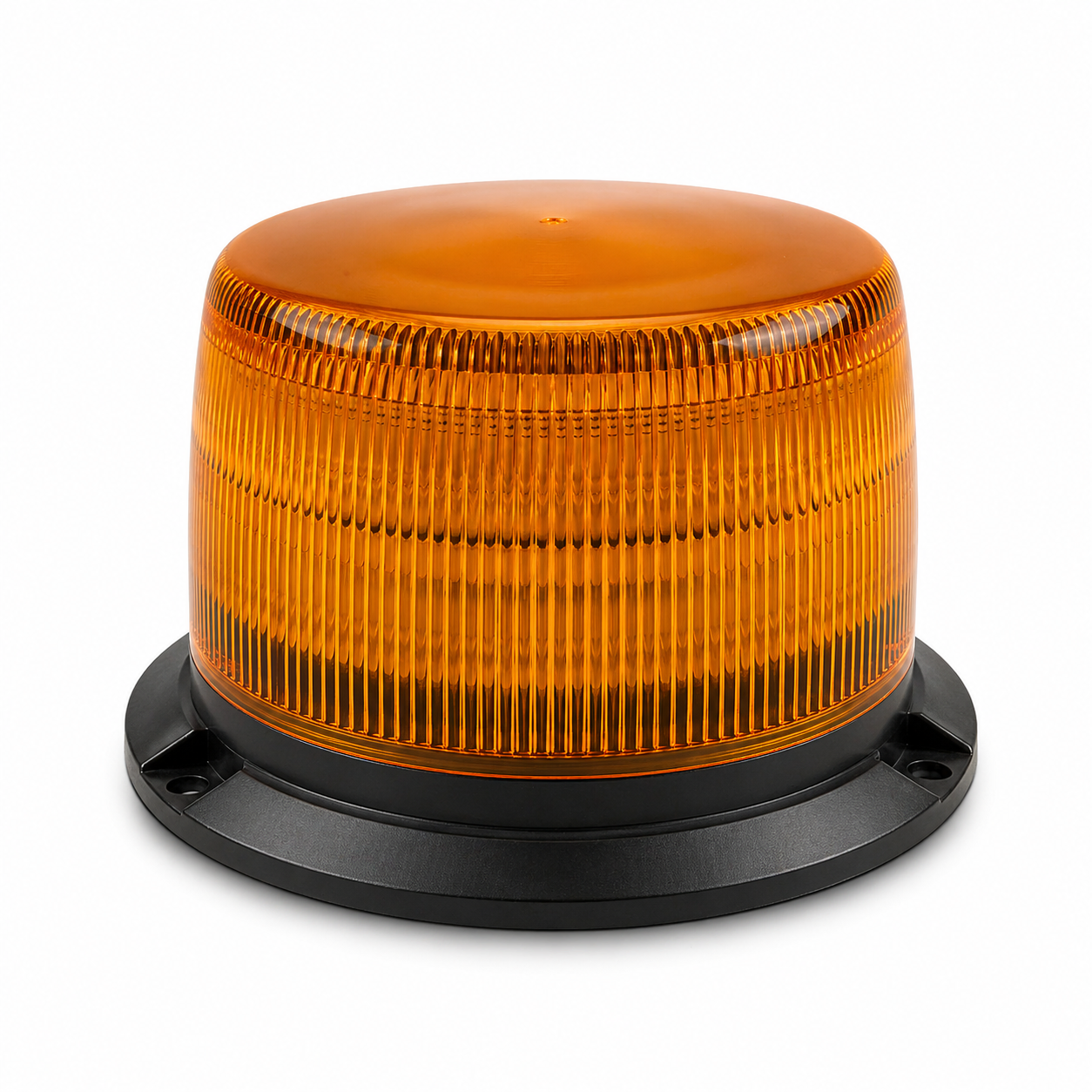

• 24 x 2W LED single colour amber beacon with high dome lens profile

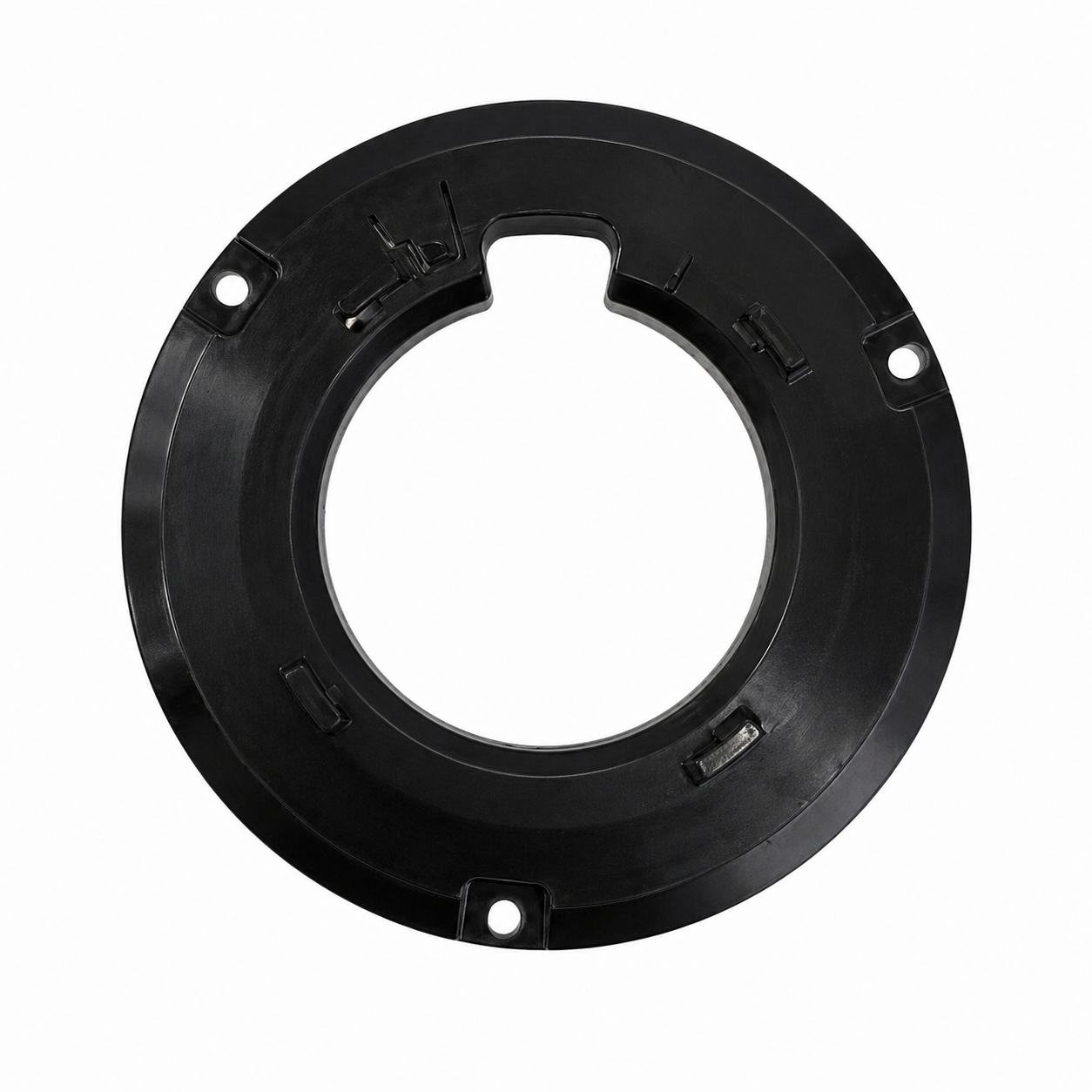

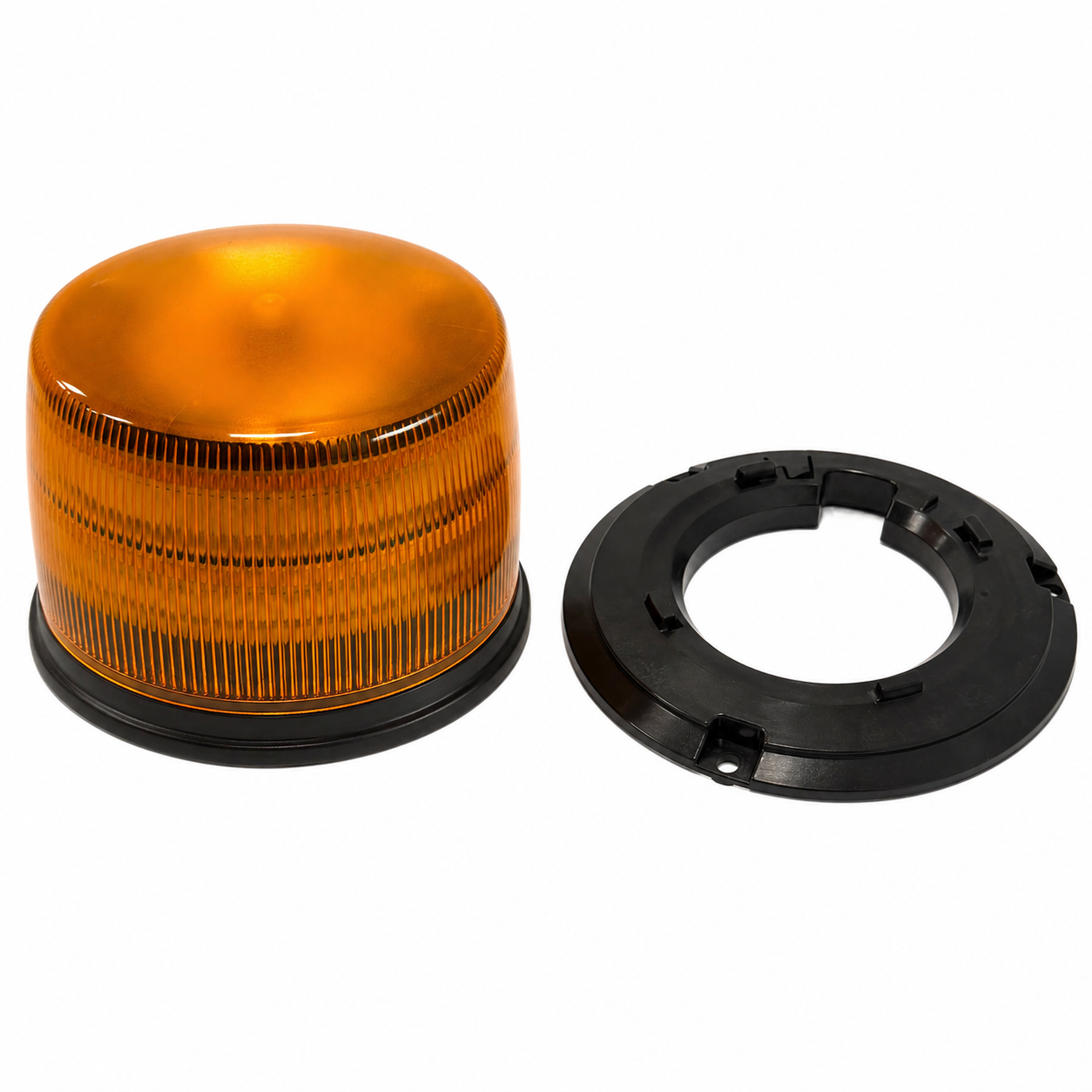

• Fixed base ring with three-point bolt pattern and twist-lock beacon attachment
• Multi-pattern operation with R65 flash sequences, rotate and steady burn modes
• 360° amber warning output for roof, canopy, tray and plant-mounted installations
• 12V to 48V DC compatibility for light commercial vehicles, trucks and plant equipment
• Pattern select, dimming and steady-on functions for vehicle warning system control
• IP65 rated housing for outdoor and exposed vehicle mounting positions
• ECE R65 Class 2 and ECE R10 approved
• Used on traffic control vehicles, civil fleet, utility vehicles and plant equipment

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Model	U7-24AAT
Product Type	LED flashing beacon
LED Configuration	24 x 2W LED single colour

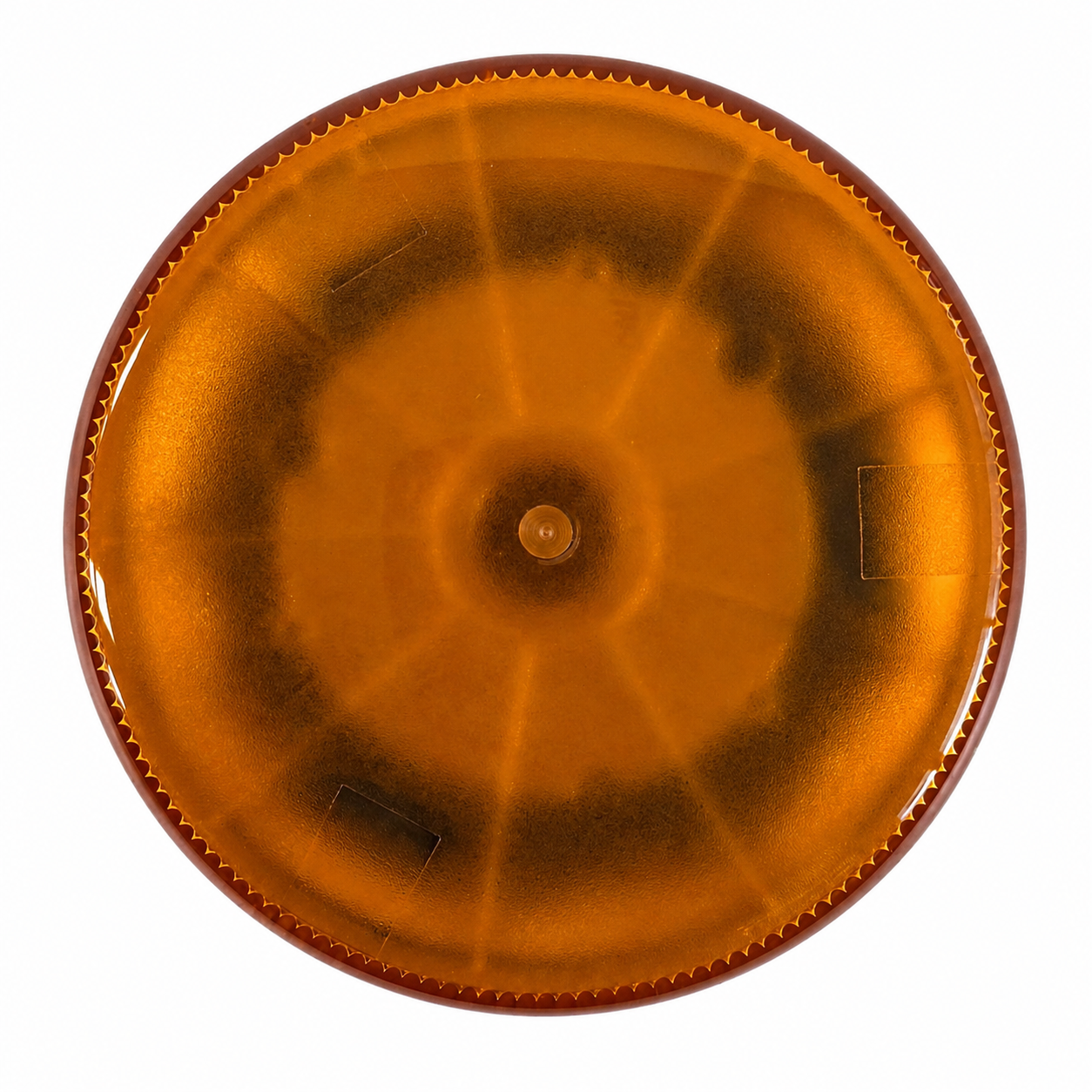

Lens Type / Lens Colour	Replaceable amber high dome lens
Light Output Colour	Amber
Voltage Range	12–48V DC
Current Draw	3.24A @ 12.8V
Wattage	48W
Flash Patterns	Multiple patterns including R65 single flash, double flash, quad flash, rotate and steady modes
Functions	Pattern select, dimming, steady on

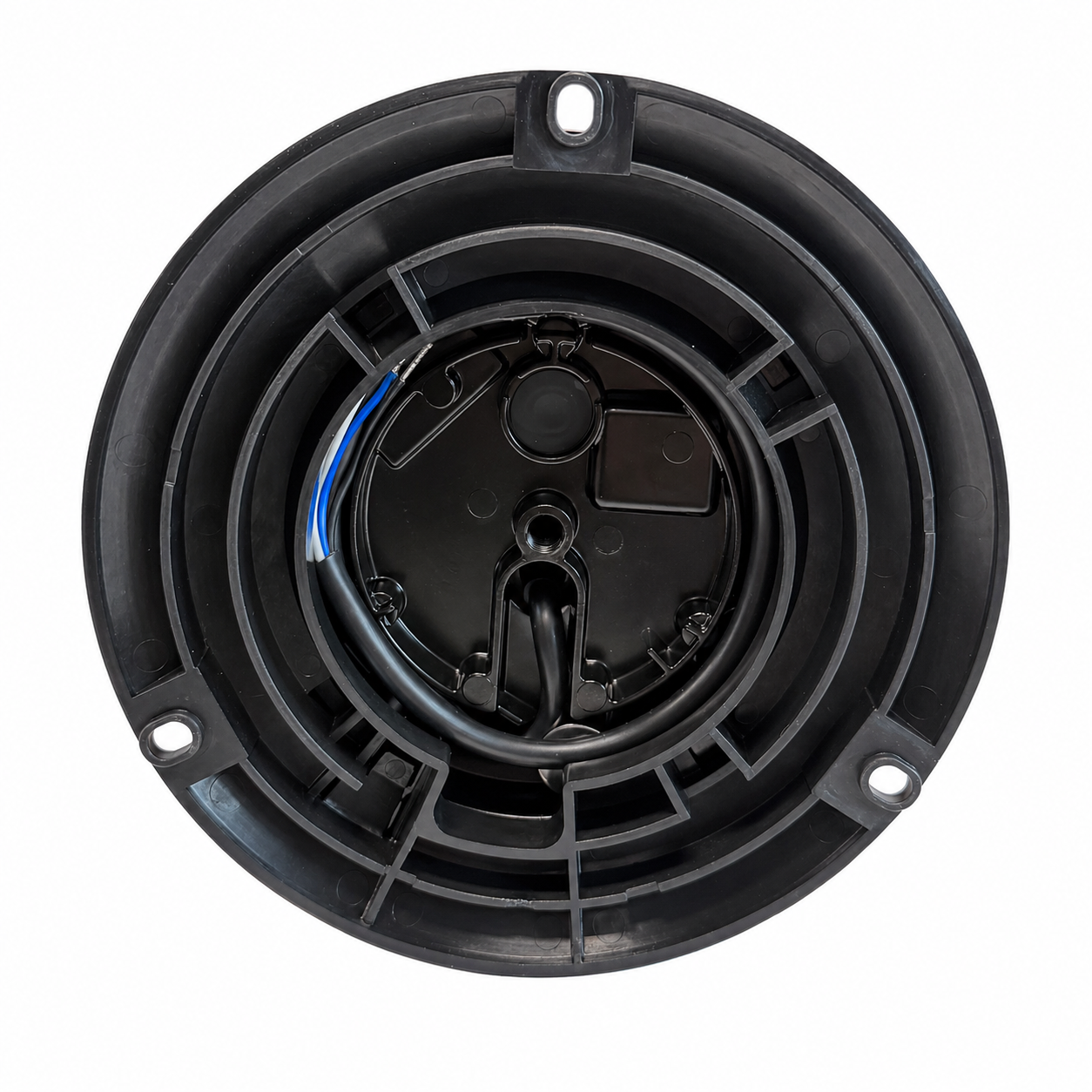

Mounting	Fixed base, three-bolt mounting plate with twist-lock beacon attachment
Ingress Protection	IP65
Operating Temperature	-30°C to +50°C
Storage Temperature	-40°C to +90°C
Housing Material	Impact-resistant housing and lens
Approvals / Certifications	ECE R65 Class 2, ECE R10

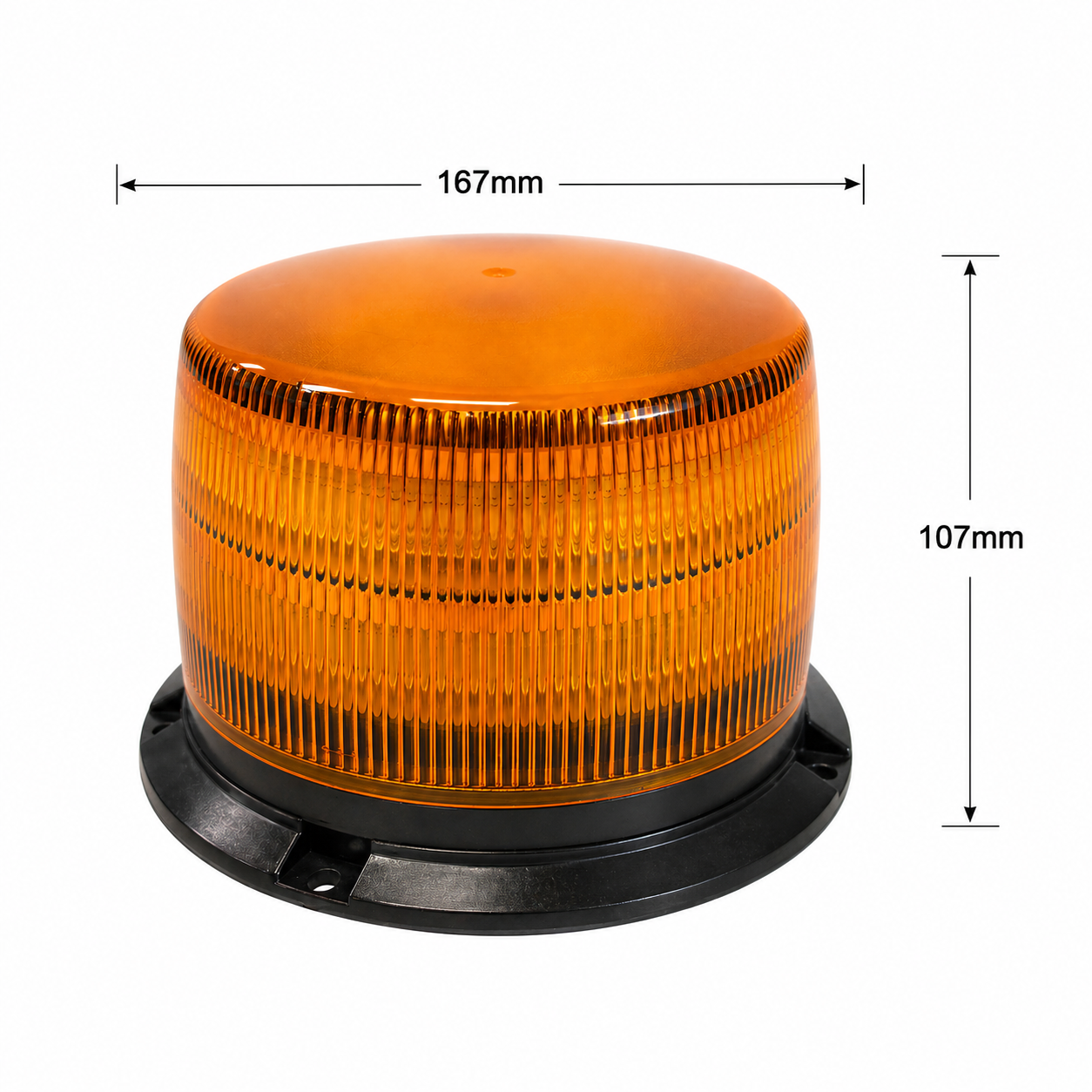

Dimensions	167mm diameter x 107.2mm height
Application	Traffic control vehicles, civil fleet, plant equipment and service vehicles
Warranty	3 years

SKU	U7-24AAT
Brand	UAG Services
Shipping Weight	1.0000kg
Shipping Width	0.190m
Shipping Height	0.130m
Shipping Length	0.180m
Shipping Cubic	0.004446000m3
