The B Class LED Arrow Board Single Sided is a vehicle-mounted B Class LED traffic control arrow board used for rear-facing directional guidance and hazard warning on traffic control vehicles, civil fleet vehicles, utility vehicles, contractor vehicles and temporary traffic management vehicle fitouts. It is used where traffic approaching from behind the vehicle needs clear directional or caution information during roadworks, lane closures, mobile works, roadside works, utility works and civil works.

This arrow board conforms to AS 4192-2006 and is NSW RTA / RMS FAS/5 Type Approved, with testing completed by a NATA-accredited laboratory as part of the FAS/5 approval process. Standards compliance and Type Approval do not make a vehicle, worksite, traffic management plan, traffic guidance scheme or traffic setup compliant on their own. Product selection, installation and use should be confirmed against the supplied product documentation, current standards, project requirements, applicable traffic management documentation and road authority conditions.

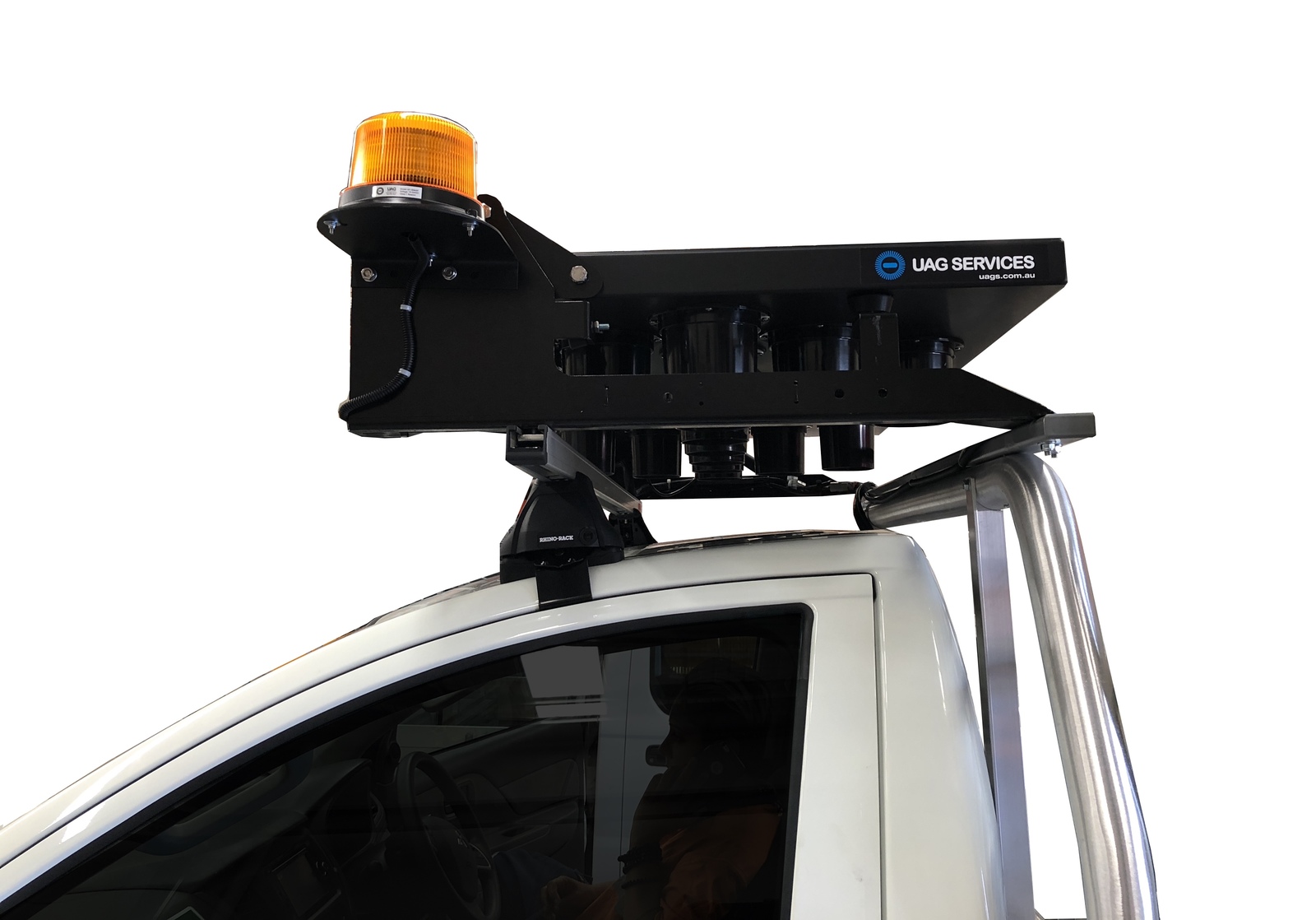

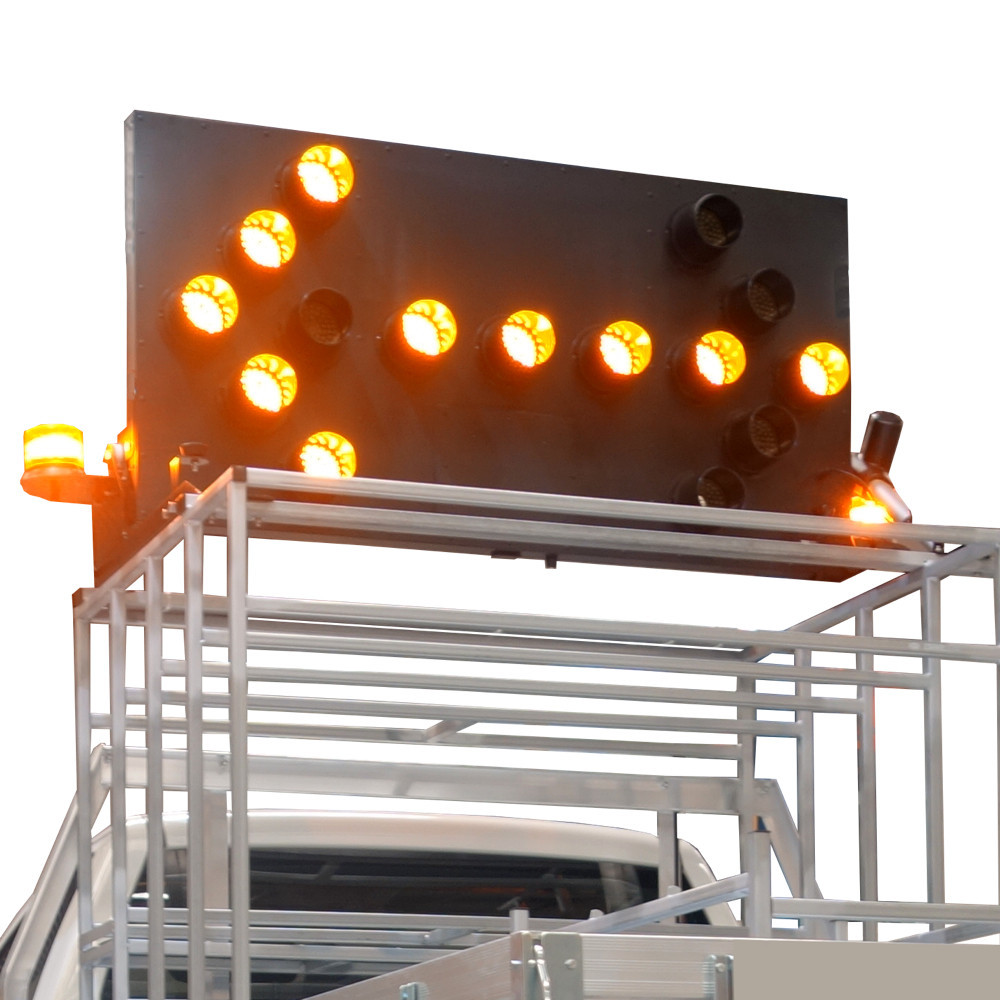

The arrow board may be fitted to a suitable cabin rack, traffic control cage, tray headboard, tray-mounted frame, rear tray structure or other compatible vehicle mounting structure. Final mounting must be confirmed against the vehicle setup, mounting structure, project requirements and applicable traffic management documentation. Installation must be completed by a qualified auto electrician.

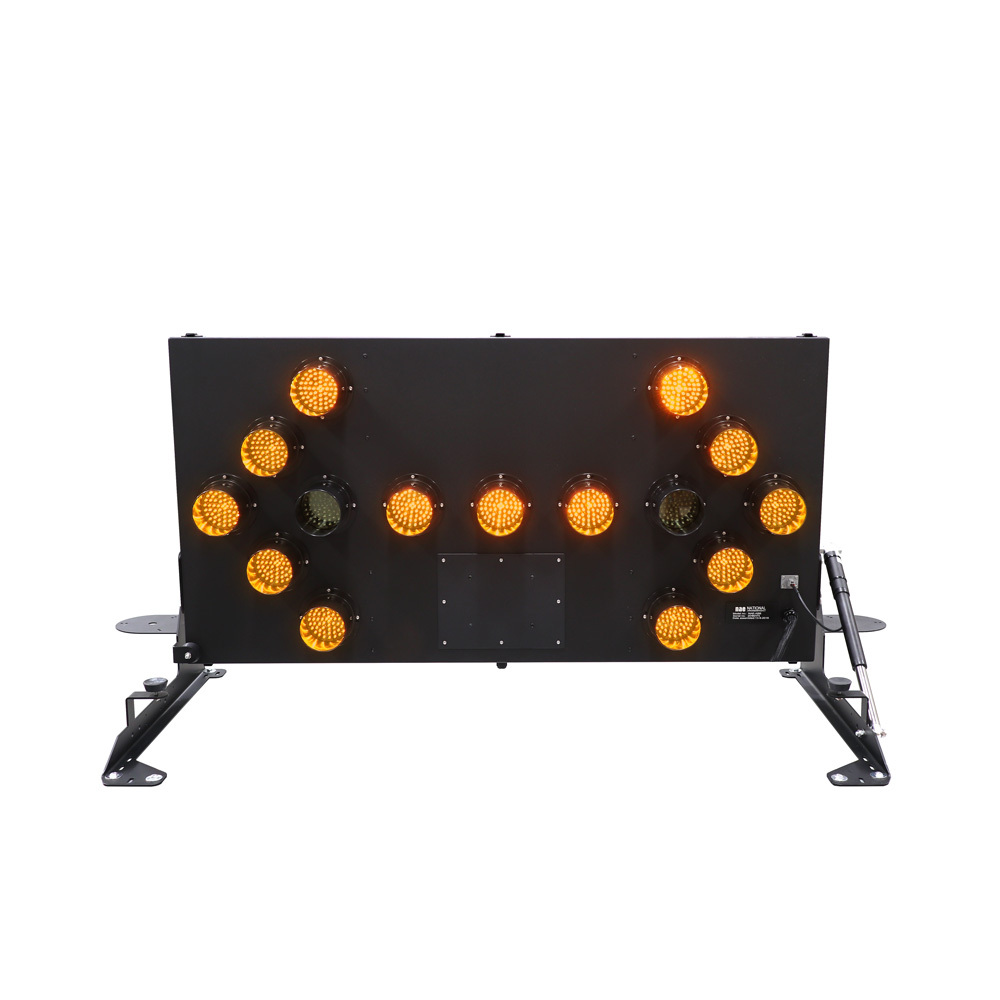

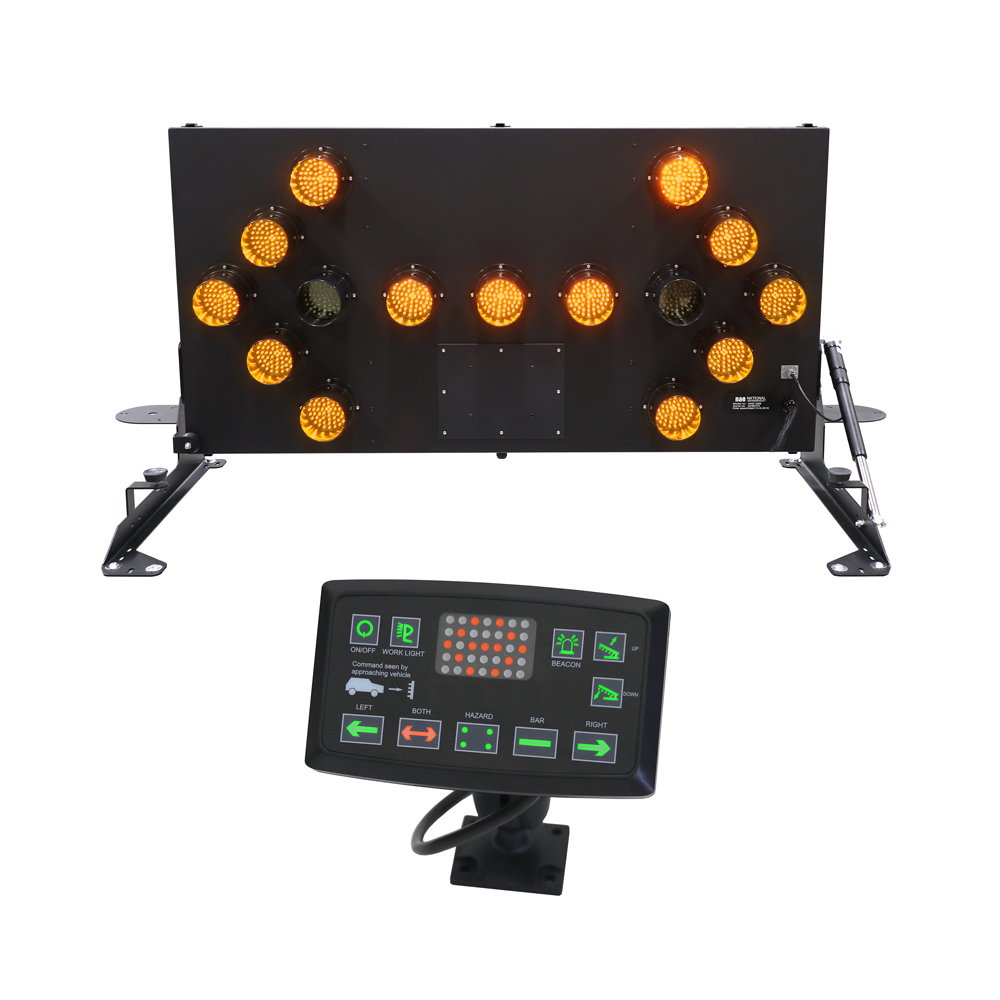

The single-sided board has a 1500mm x 770mm display area, a 1545mm x 770mm mounting footprint and 15 LED clusters with luminous intensity greater than 700 cd. Display modes include Arrow Left, Arrow Right, Double Arrow and Hazard, with Hazard mode used as the non-directional warning / flashing corner mode. The flash rate is 35–45 cycles per minute.

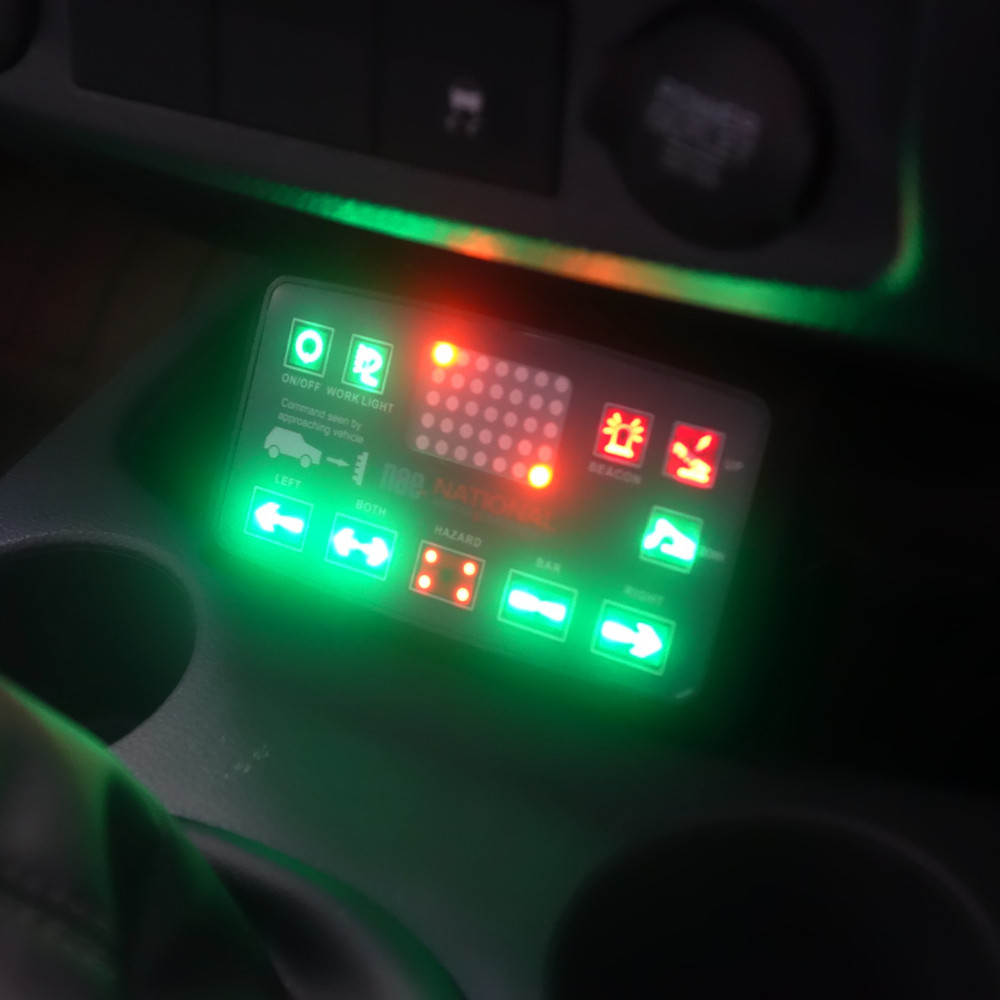

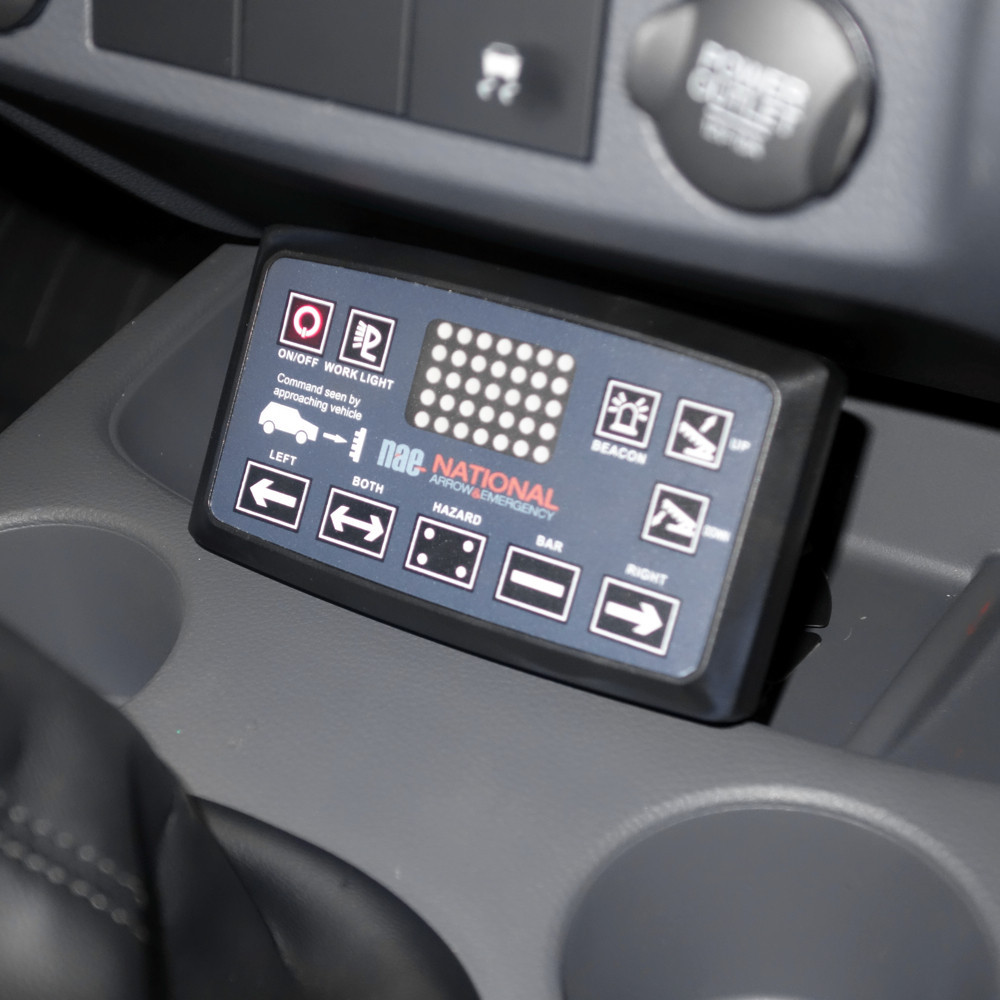

The in-cabin touch controller has illuminated buttons and a swivel mounting bracket. Controller buttons include On/Off, Work Light, Beacon, Raise, Lower, Arrow Left, Arrow Right, Double Arrow and Hazard. The controller uses illuminated button feedback, with green for standby / ready and red for active functions. The electric actuator allows the board to be raised and lowered from inside the cabin.

The arrow board is supplied standard with a 12V DC actuator, with a 24V DC actuator available on request for suitable 24V vehicle systems. Confirm the required vehicle voltage before ordering. The integrated light sensor supports automatic dimming for day and night operation. The system includes short-circuit protection, solid-state circuitry, low-voltage monitoring, reverse polarity protection, over-voltage protection and fail-safe behaviour that defaults to Hazard mode during communication loss or low-voltage fault.

The enclosure is IP54 rated and uses a weather-resistant vented design to assist with internal air movement and condensation management. The product is assembled in Australia using locally manufactured structural components with imported electrical systems and actuator hardware, supporting practical servicing and integration into UAGS traffic control vehicle fitouts.

B Class LED Arrow Board FAQs

What is included with the single-sided B Class LED arrow board?

The product includes the single-sided B Class LED arrow board, mounting brackets, 12V DC actuator, in-cabin controller, controller swivel mount, 4-core power cable, controller cable, accessory patch cables for beacon and work light outputs, dual MIDI fuse holder, 23A MIDI fuses and beacon mounting plates.

Are side beacons or work lights included?

No. Side beacons and work lights are not included unless separately supplied or fitted as part of a vehicle fitout. The arrow board includes accessory outputs for compatible beacons and rear-facing work lights, but the connected accessories must be ordered or arranged separately where required.

Is vehicle fitment or installation included?

No. Vehicle fitment, installation, wiring beyond the supplied components, dual battery system integration and additional warning equipment are not included unless separately quoted. Installation must be completed by a qualified auto electrician.

Can this arrow board be used on 12V and 24V vehicle systems?

The arrow board is supplied standard with a 12V DC actuator. A 24V DC actuator is available on request for suitable 24V vehicle systems. Confirm the required vehicle voltage before ordering.

Where can the arrow board be mounted?

It may be fitted to a suitable cabin rack, traffic control cage, tray headboard, tray-mounted frame, rear tray structure or other compatible vehicle mounting structure. Final mounting should be confirmed against the vehicle setup, mounting structure, project requirements and applicable traffic management documentation.

What is the difference between the single-sided and double-sided version?

This single-sided model, SKU AB-BCLASS-1500-15-S, has one rear-facing display with 15 LED clusters. The double-sided version has LED clusters on both sides for dual-facing display capability.

Does this product make a vehicle or traffic setup compliant?

No. This arrow board is one item of powered traffic control equipment. Product selection, installation and use should be confirmed against the supplied product documentation, current standards, project requirements, applicable traffic management documentation and road authority conditions.

Does the arrow board have FAS/5 Type Approval?

Yes. This single-sided B Class LED arrow board is NSW RTA / RMS FAS/5 Type Approved. Road authority, project and site requirements may still apply, and Type Approval should not be treated as automatic suitability for every vehicle, project or traffic management setup.

Was the arrow board tested by a NATA-accredited laboratory?

Yes. Testing was completed by a NATA-accredited laboratory as part of the FAS/5 approval process. This should be described as NATA-accredited testing, not as a NATA-approved arrow board.
