The B Class LED Arrow Board is a double-sided vehicle-mounted traffic control arrow board used to display directional and caution information in temporary traffic management environments. It is used on traffic control vehicles, civil works vehicles, utility vehicles, mobile works vehicles and roadside works setups where supported by the relevant traffic management plan, project requirements and road authority conditions.

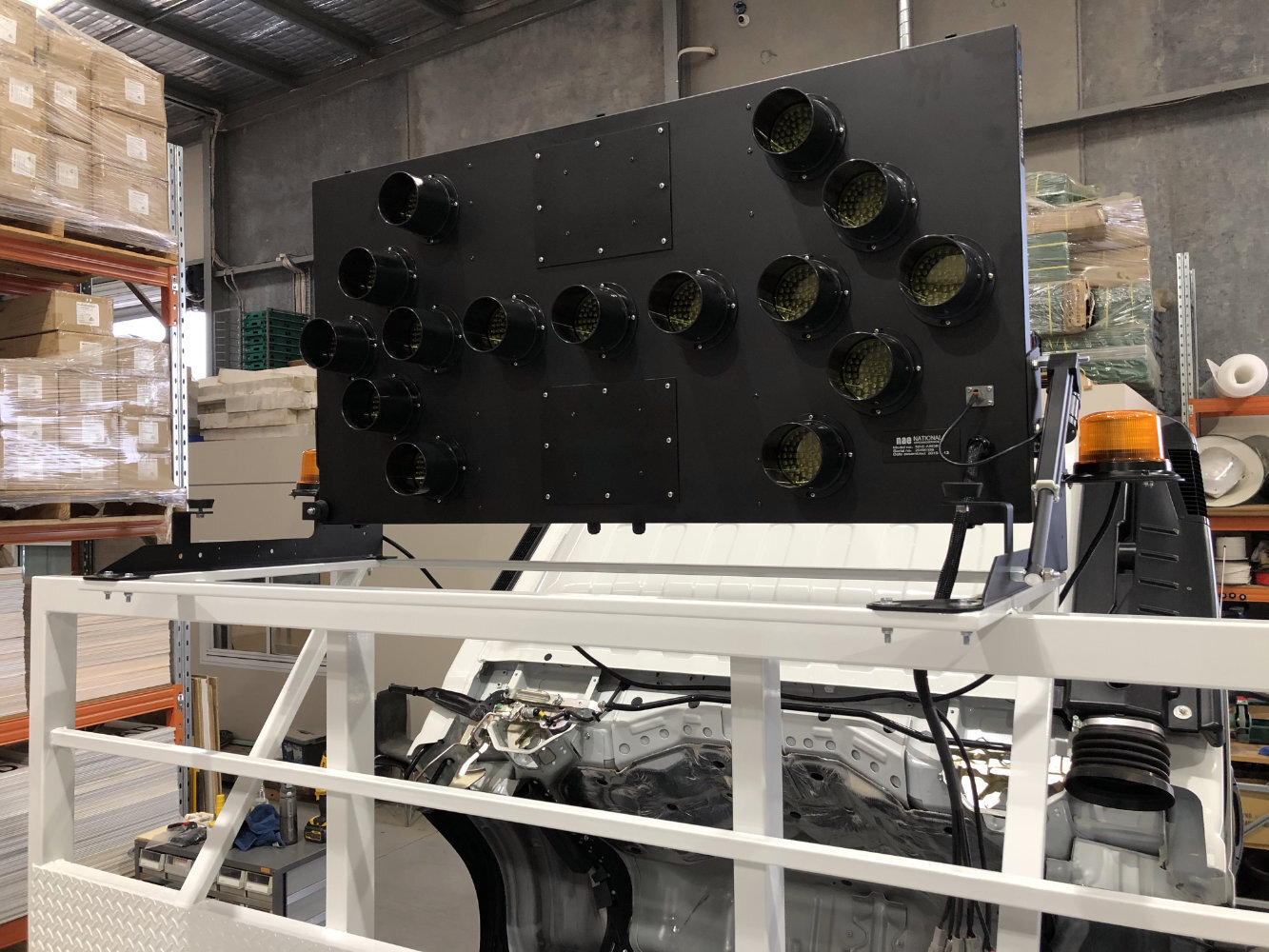

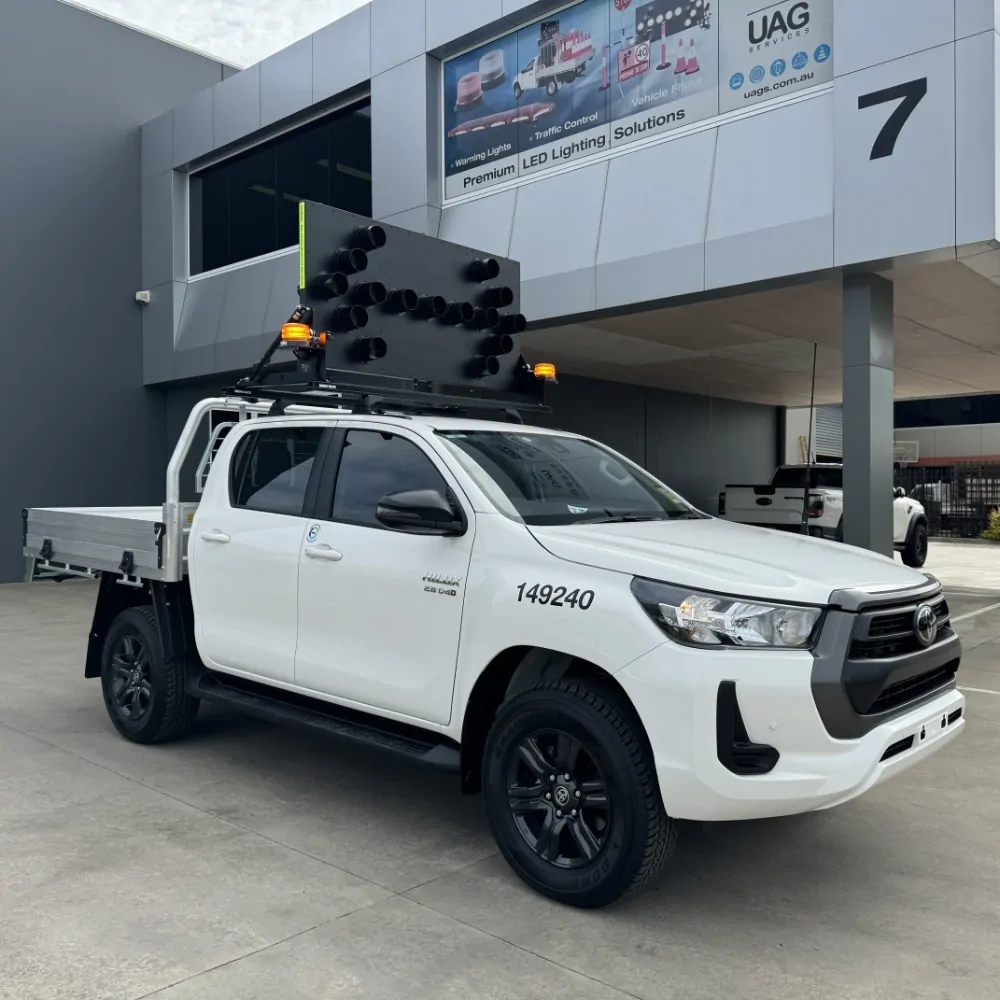

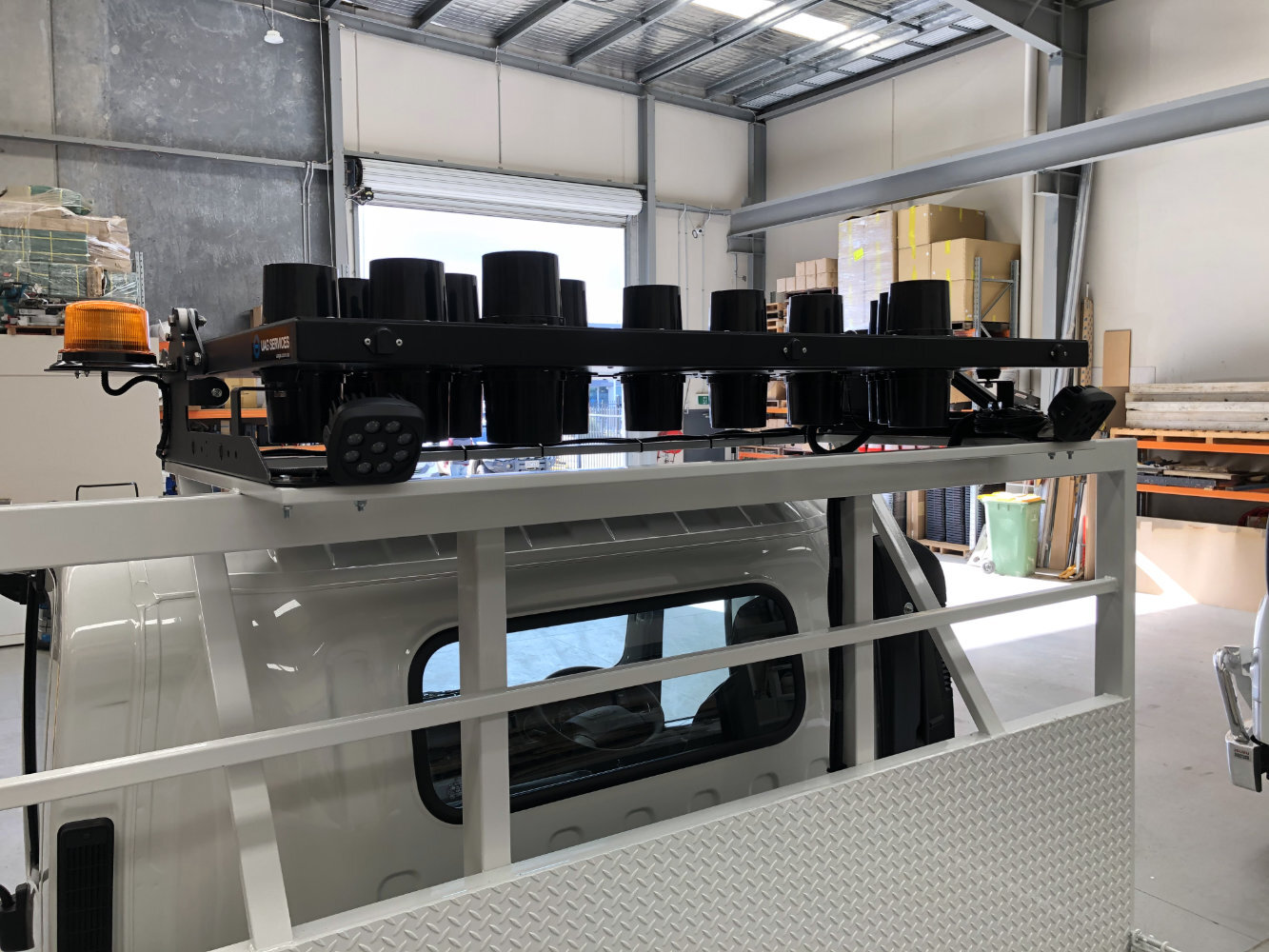

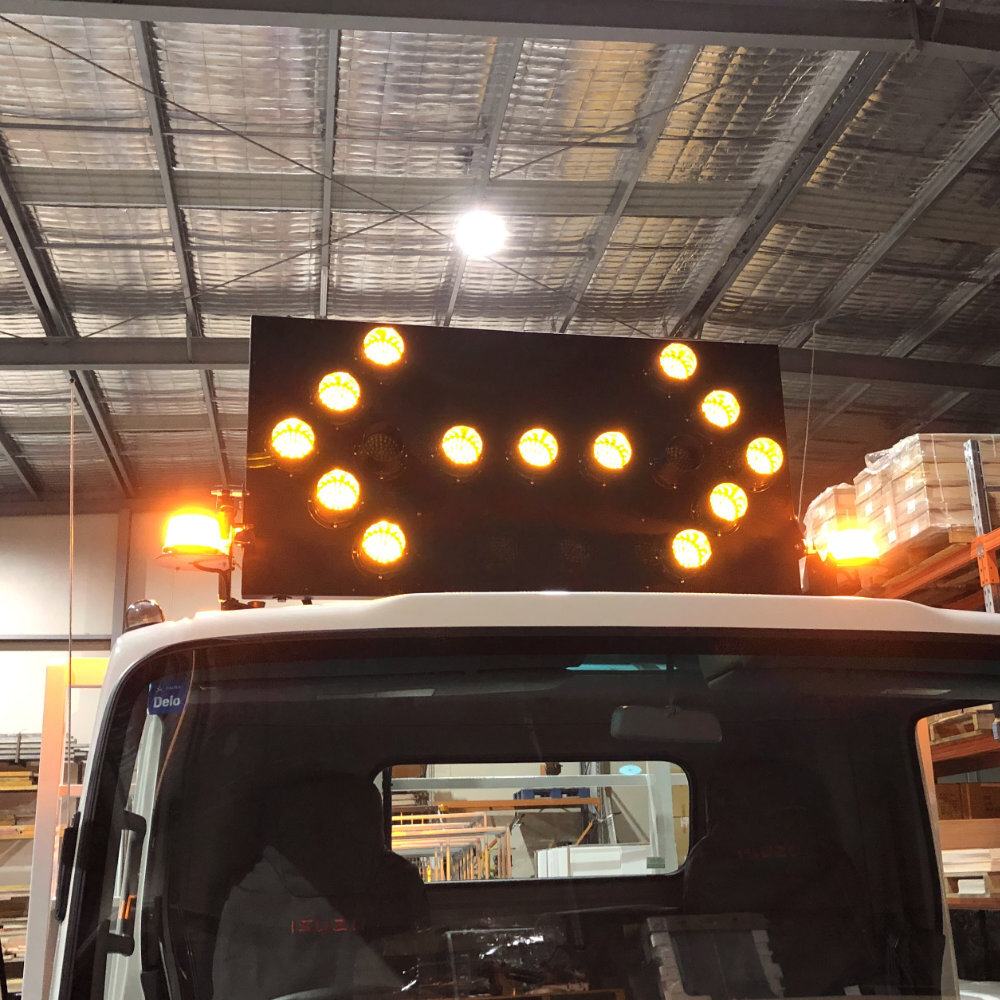

This dual-facing arrow board is designed to display toward traffic approaching from both directions. It may be fitted to a suitable cabin rack, traffic control cage, tray headboard, tray-mounted frame, rear tray structure or other compatible vehicle mounting structure, with final fitment confirmed against the vehicle setup, mounting structure, project requirements and applicable traffic management documentation.

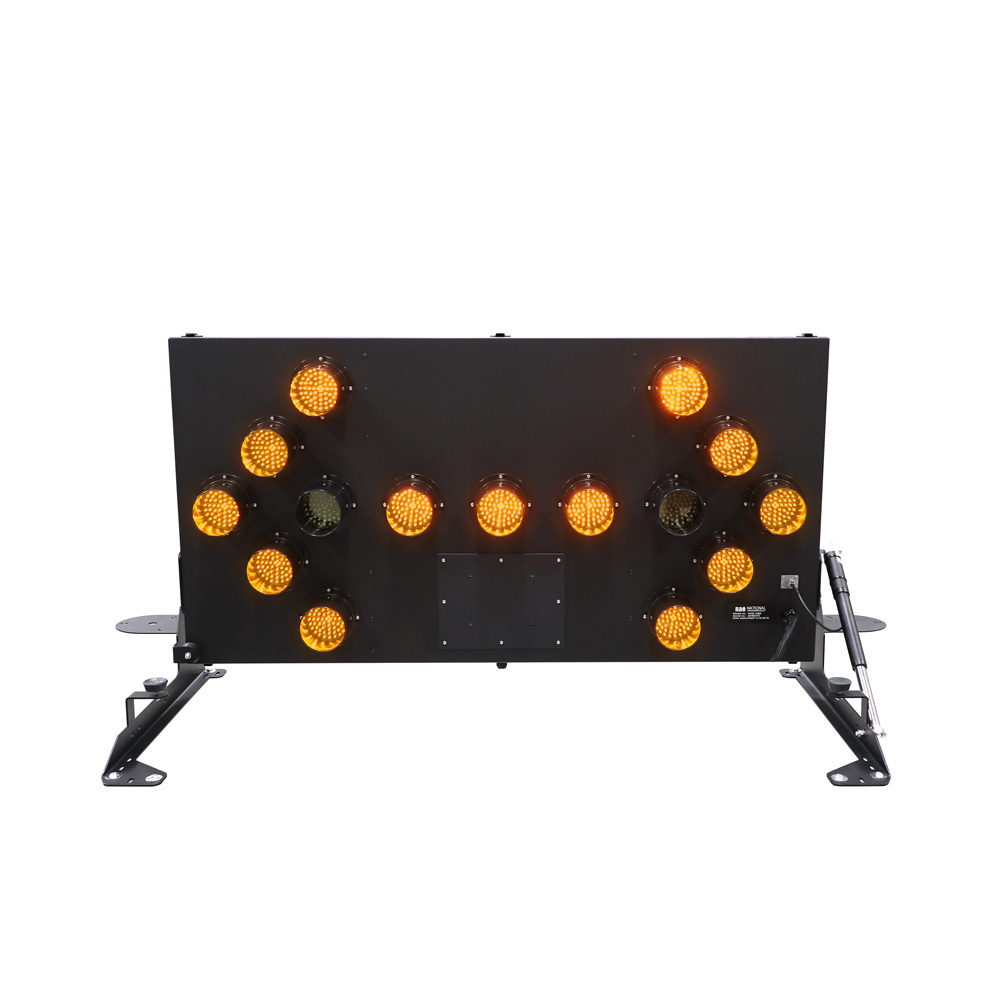

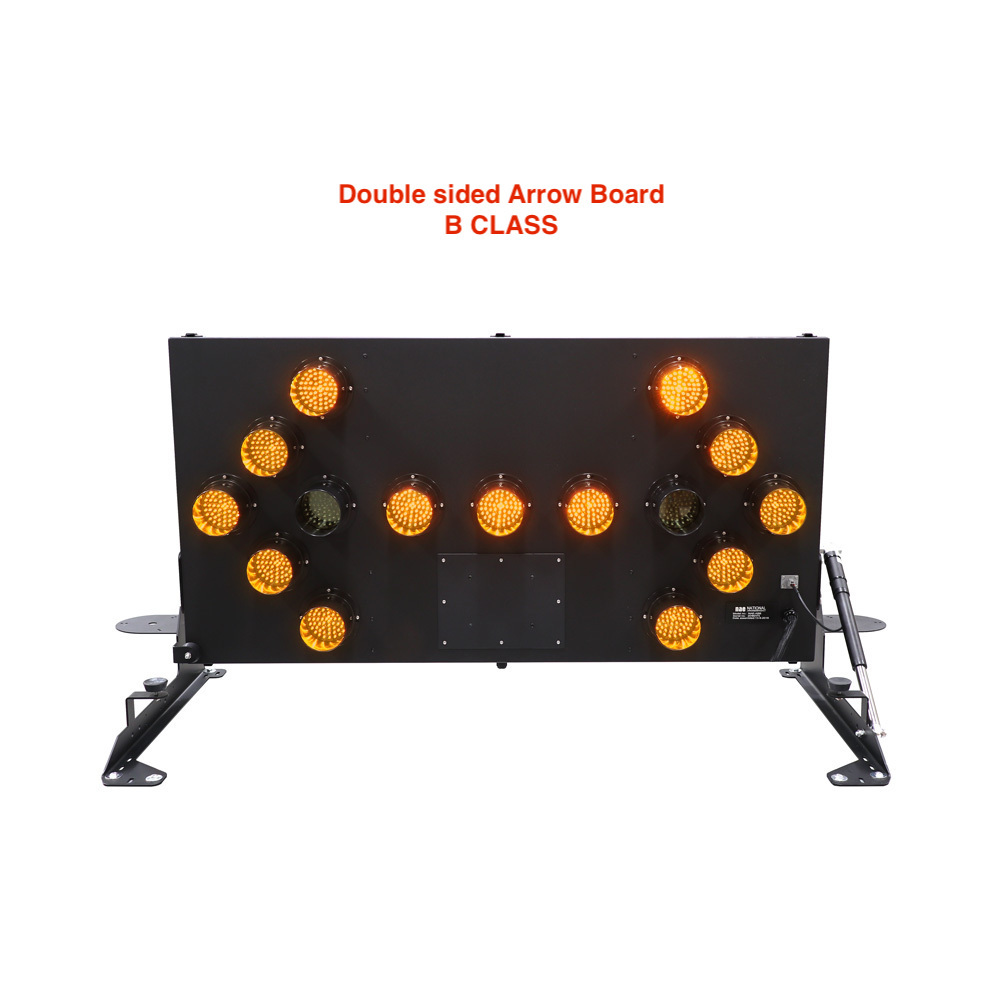

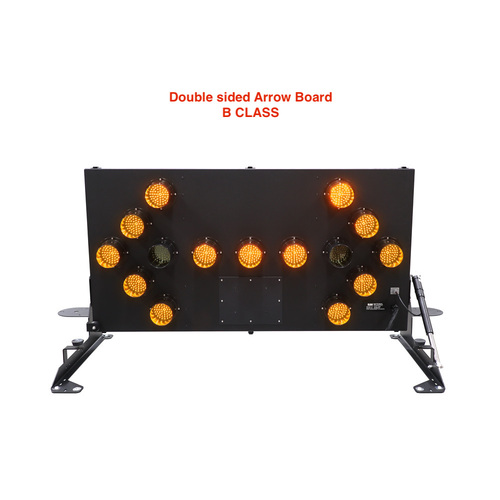

The board has a 1500mm x 770mm display area, a 1545mm x 770mm mounting footprint and 30 LED clusters total, with 15 LED clusters per side. Display modes include Arrow Left, Arrow Right, Double Arrow and Caution. The system includes a backlit swivel-mounted in-cabin controller, plus a specific controller, additional controller cable and bracket plate for the forward-facing side of the board.

The enclosure is weather-resistant with a vented design to assist with internal air movement and condensation management. The arrow board includes short-circuit protection, fail-safe operation, solid-state circuitry and an integrated light sensor for automatic dimming. It is assembled in Australia using locally manufactured structural components with imported electrical systems and actuator hardware.

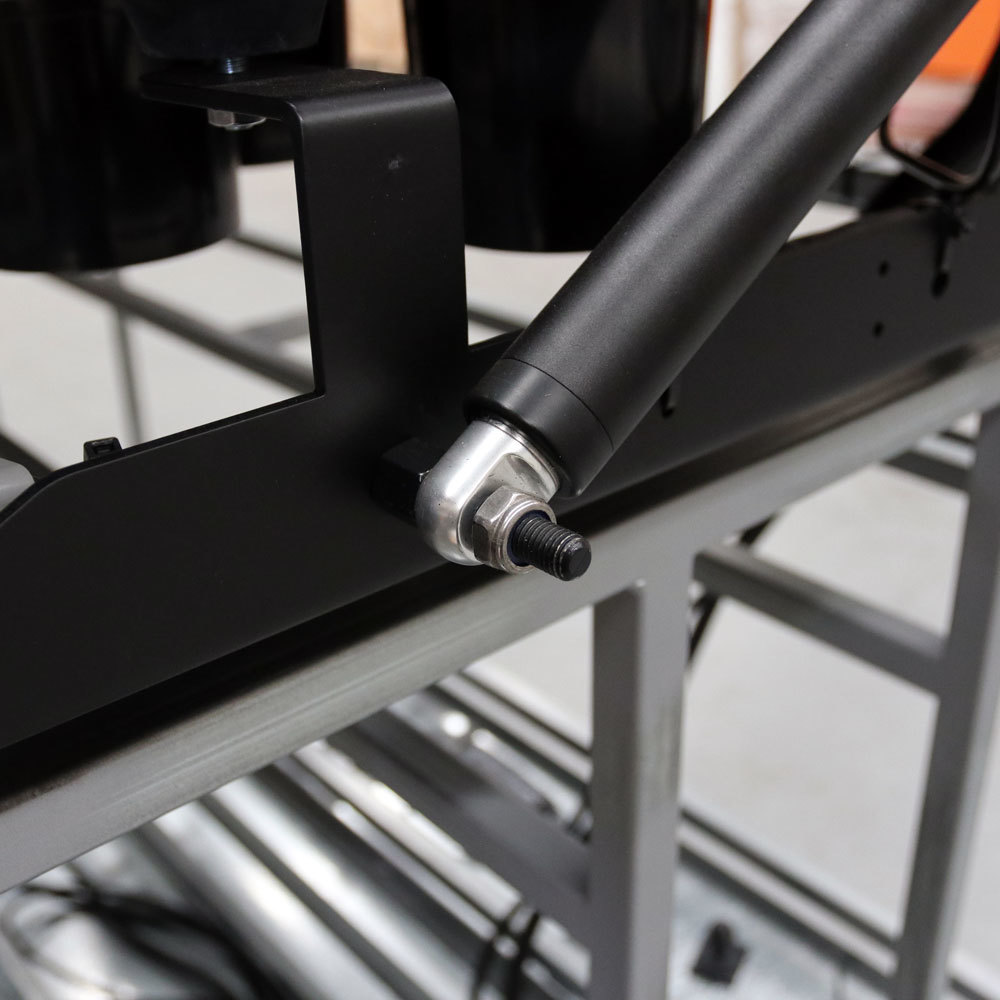

This is a multi-voltage arrow board system supplied standard with a 12V DC electric actuator. A 24V DC actuator is available on request for suitable 24V vehicle systems. Confirm the required vehicle voltage before ordering. Vehicle integration, installation requirements and power supply arrangements should be checked against the vehicle, electrical system, fitout requirements and supplied installation documentation.

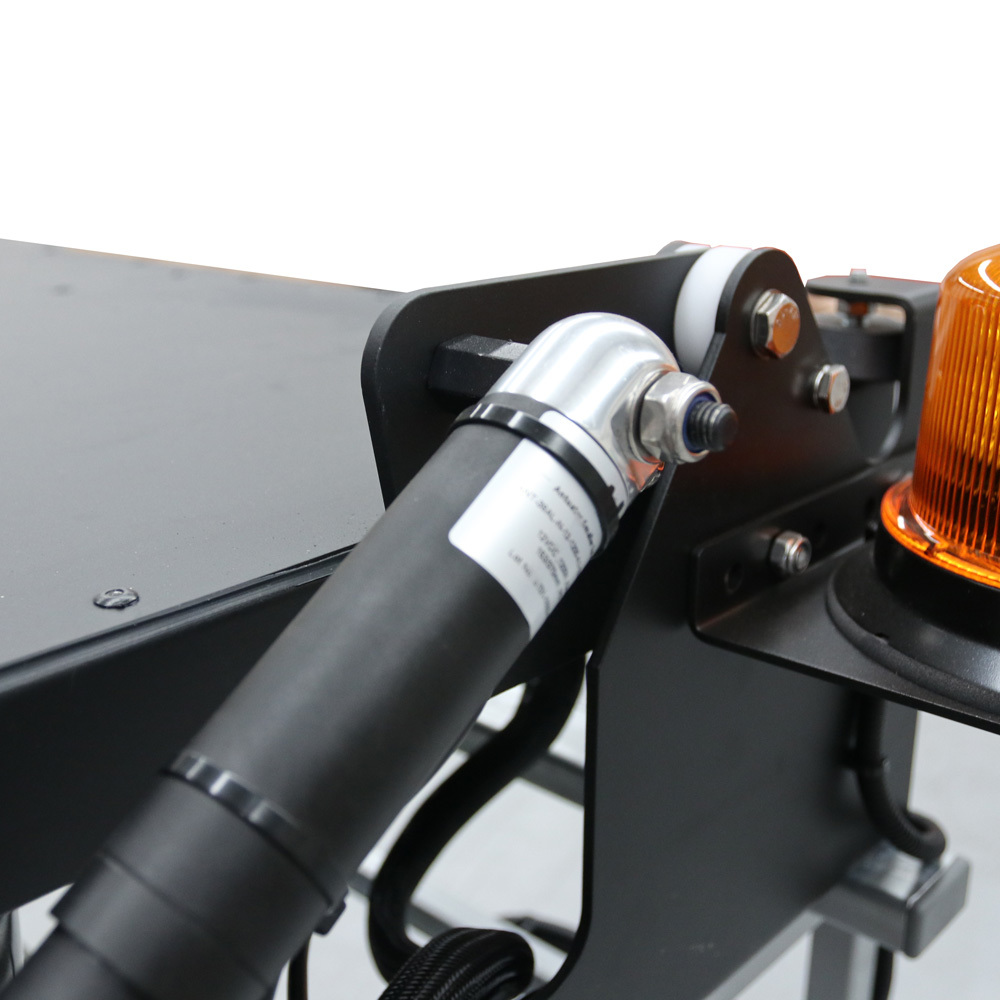

The double-sided model is supplied with mounting brackets, beacon brackets, a 12V DC actuator, in-cabin controller, swivel controller mount, specific controller for the forward-facing side, additional controller cable, additional controller bracket plate, 4-core power cable, controller cable, Deutsch connector tails, dual MIDI fuse holder and MIDI fuses.

Side beacons, work lights and additional warning equipment are sold separately. Vehicle fitment, installation, wiring beyond the supplied components and dual battery system integration are not included with this product.

Frequently Asked Questions

What is included with this double-sided B Class LED arrow board?

The product includes the double-sided B Class LED arrow board, mounting brackets, 12V DC actuator, in-cabin controller, controller swivel mount, specific controller for the forward-facing side, additional controller cable, additional bracket plate, 4-core power cable, controller cable, Deutsch connector tails, dual MIDI fuse holder, MIDI fuses and beacon brackets.

Are side beacons or work lights included?

No. Side beacons and work lights are not included with this product. Additional warning equipment is sold separately.

Is vehicle fitment or installation included?

No. Vehicle fitment, installation, wiring beyond the supplied components and dual battery system integration are not included with this product. Installation requirements should be confirmed against the vehicle, electrical system, fitout requirements and supplied installation documentation.

Can this arrow board be used on 12V and 24V vehicle systems?

The arrow board system is multi-voltage, with a 12V DC actuator supplied as standard. A 24V DC actuator is available on request for suitable 24V vehicle systems. Confirm the required vehicle voltage before ordering.

Where can the double-sided arrow board be mounted?

It may be fitted to a suitable cabin rack, traffic control cage, tray headboard, tray-mounted frame, rear tray structure or other compatible vehicle mounting structure. The board should be mounted in a position where both display faces can be clearly seen, subject to vehicle setup, mounting structure, project requirements and applicable traffic management documentation.

What is the difference between this model and the single-sided version?

This model is the double-sided version with 30 LED clusters total, arranged as 15 LED clusters per side for a dual-facing display. The single-sided version is available separately as AB-BCLASS-1500-15-S.

Does this product make a vehicle or traffic setup compliant?

No. This arrow board is one item of powered traffic control equipment. Product selection, mounting, installation and use should be confirmed against the supplied product documentation, vehicle setup, project requirements, applicable traffic management documentation and road authority conditions.
