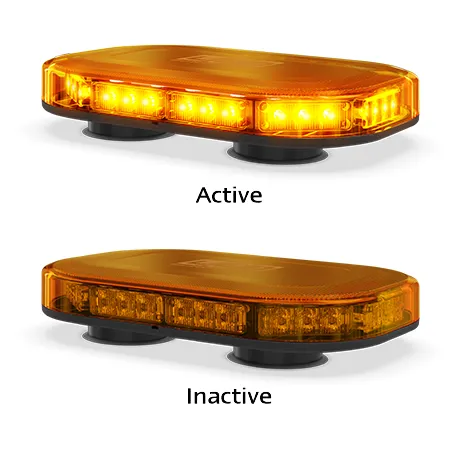

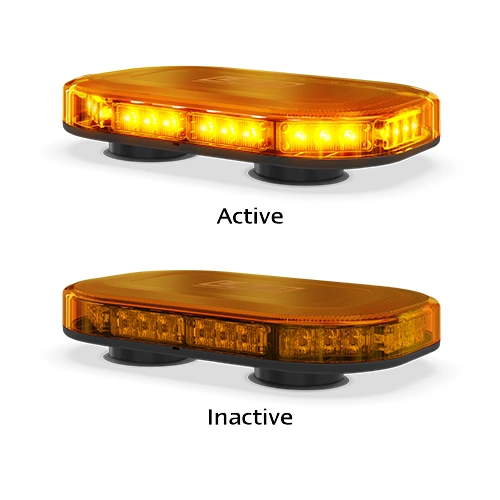

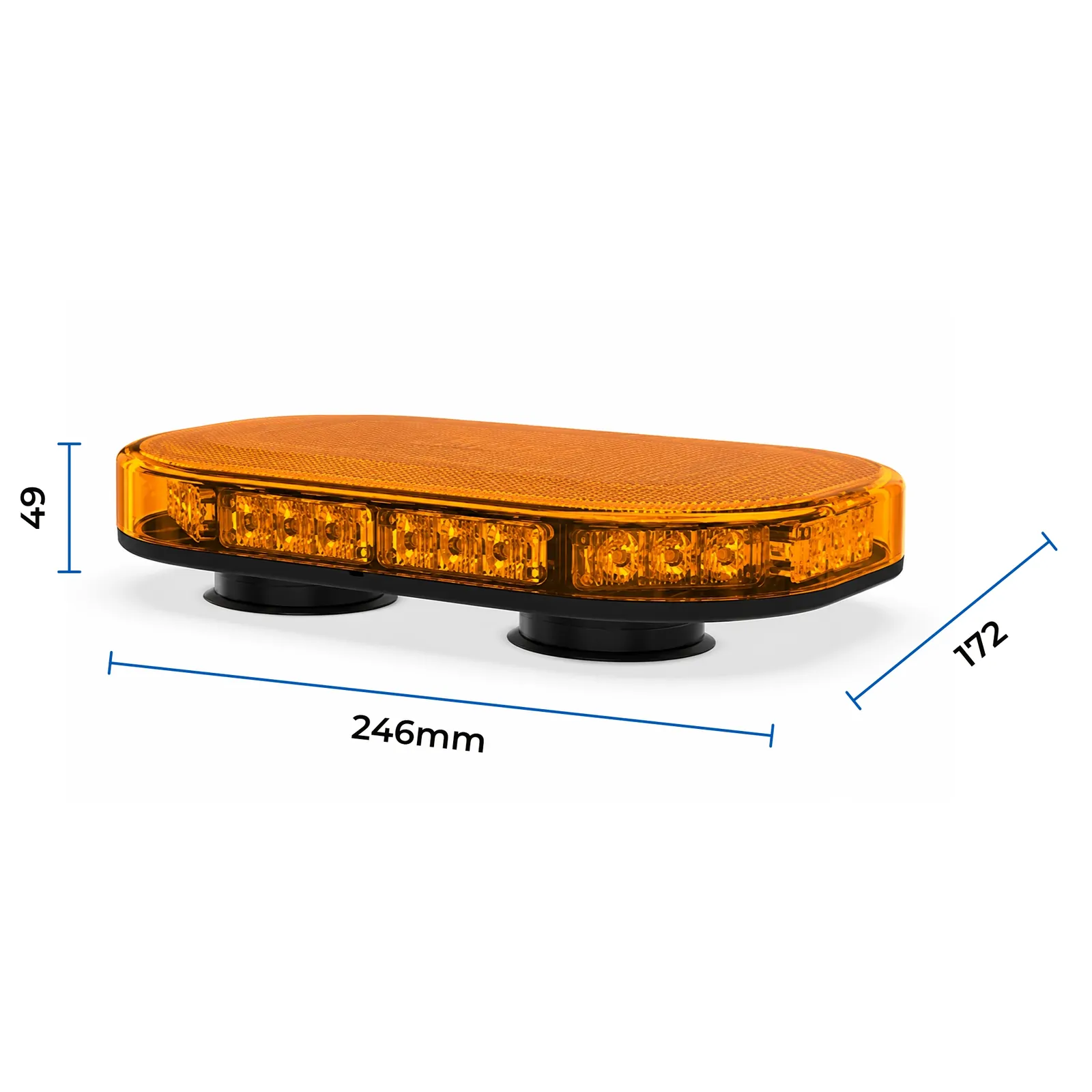

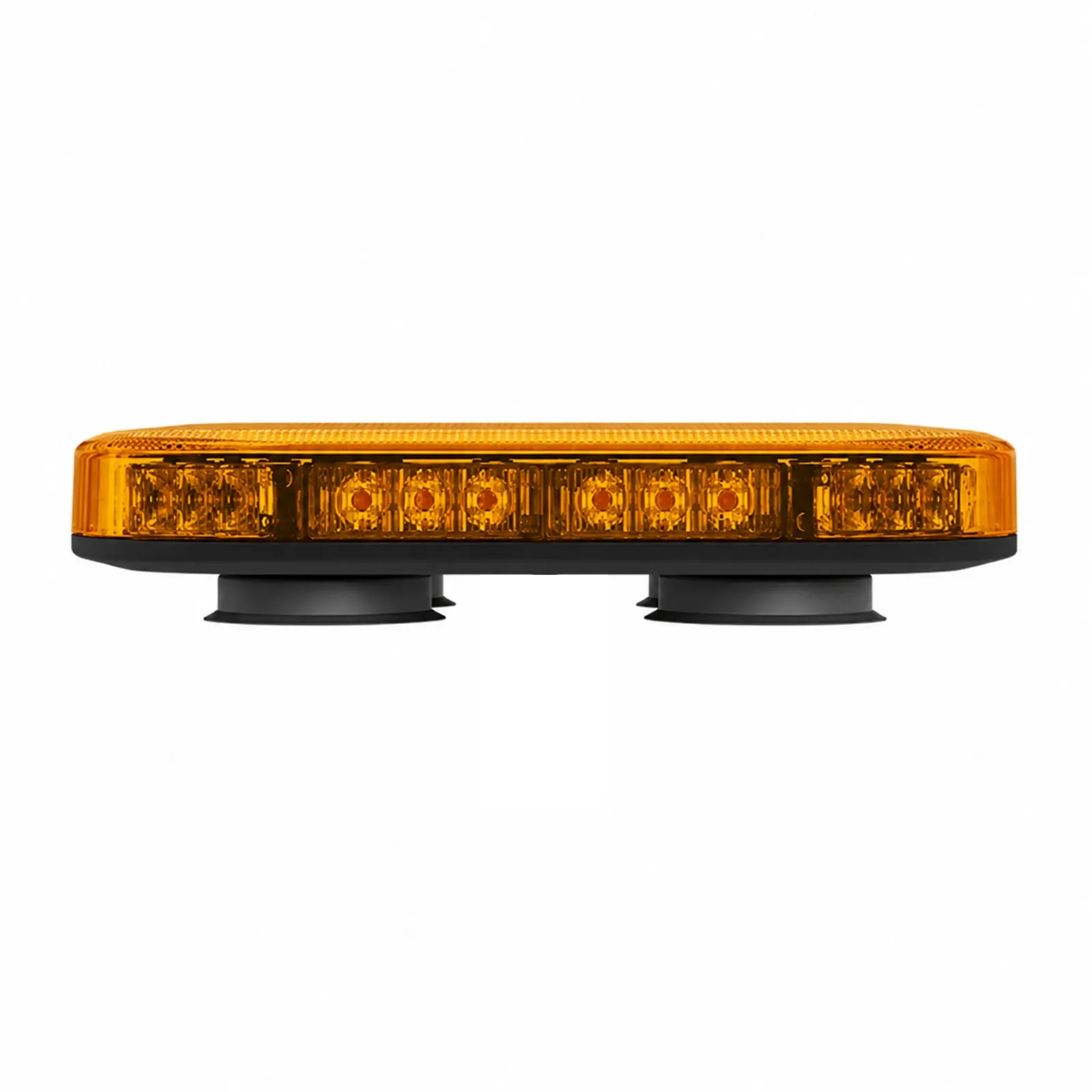

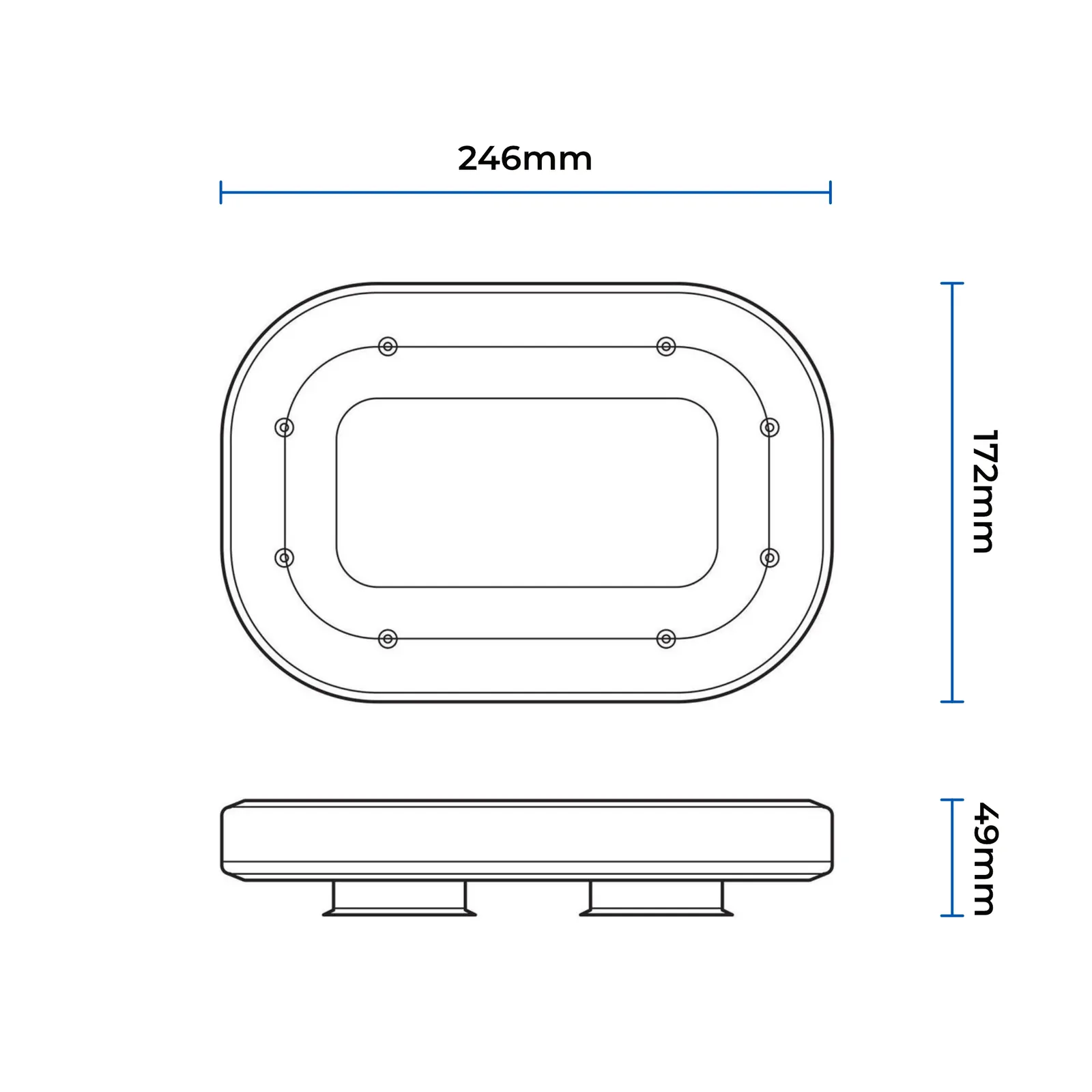

The LB246AMM amber LED magnetic warning mini light bar is a compact 246mm rooftop warning light designed to support vehicle visibility in traffic control, civil, utility, council and mobile works environments. It delivers amber warning output through an amber lens for temporary vehicle warning applications.

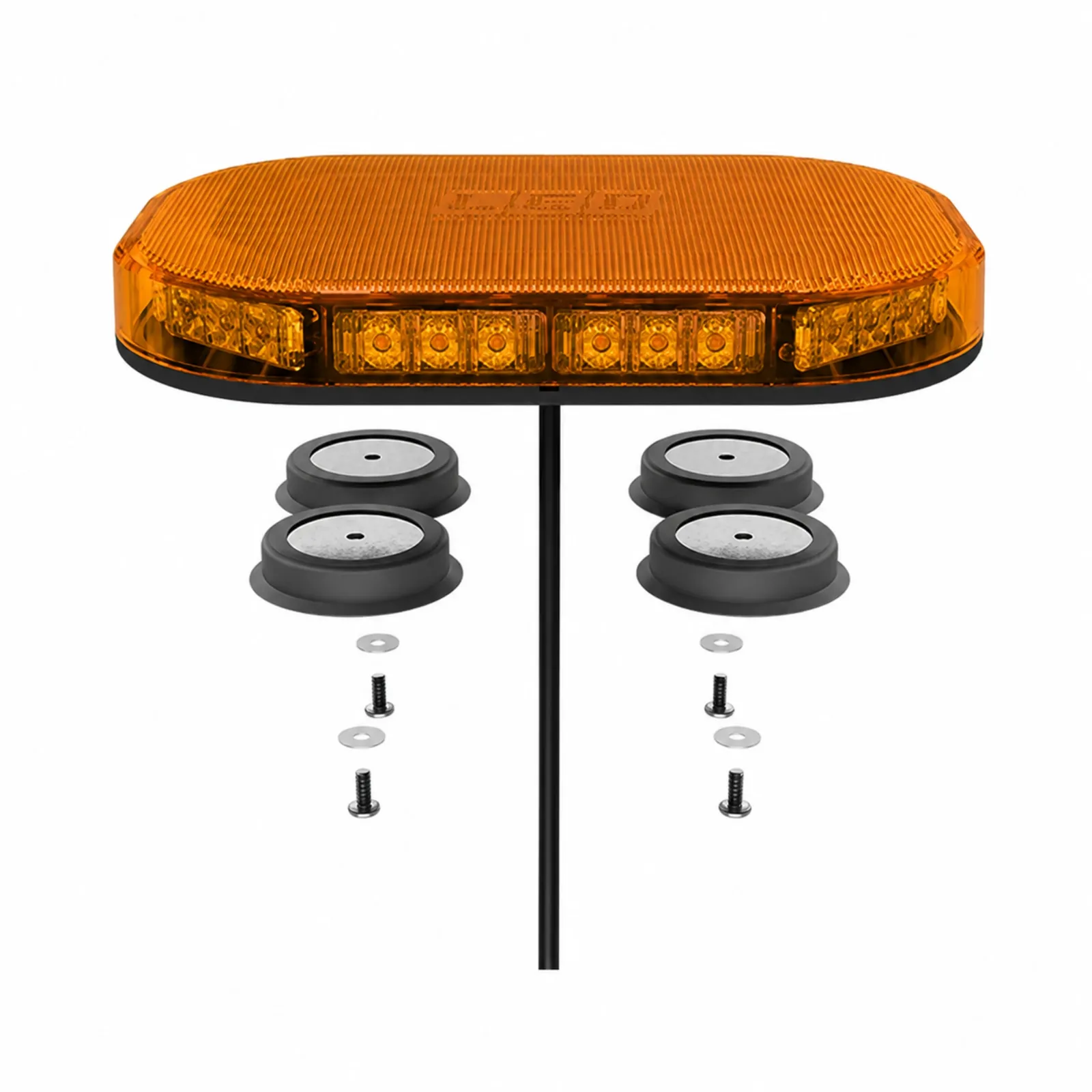

This model uses magnetic suction cup mounting for temporary roof installation on compatible steel vehicle surfaces. It includes a 3 metre cable with plug and integrated on/off and flash pattern selection switch, making it suitable where a removable warning light setup is required.

The LB246AMM operates across a 10–30V DC voltage range and uses 30 x 1W LEDs. It includes 18 selectable flash patterns and supplied operating instructions list synchronisation capability when multiple compatible units are configured together.

The minibar has an IP67 ingress protection rating for exposed operating environments. Supplied product data lists a polycarbonate lens, ABS housing and magnetic suction cup fittings.

The supplied product data lists SAE J845 Class 1, ECE R65 and ECE R10. These listed standards relate to the supplied product data and should not be treated as road authority approval or confirmation of suitability for every vehicle or operating environment.

Commonly used on traffic management vehicles, civil fleet vehicles, utility vehicles, council vehicles and mobile works vehicles where a temporary rooftop warning light is required. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use.

Vehicle warning systems support visibility but do not replace a traffic management plan, traffic guidance scheme, site controls or safe operating procedures. Final configuration and use should align with project-specific requirements, applicable standards and site conditions.

Magnetic LED Warning Mini Light Bar FAQs

How is the LB246AMM mounted?

This model uses magnetic suction cups for temporary mounting to compatible steel vehicle roofs.

Does this light bar include a plug?

Yes. The LB246AMM includes a 3 metre cable with plug and integrated on/off and flash pattern selection switch.

What colour is the lens?

This model has an amber lens with amber LED output.

How many flash patterns are available?

The supplied product data lists 18 selectable flash patterns.

Can multiple LB246AMM units be synchronised?

Yes. The supplied operating instructions describe synchronisation of multiple compatible units by selecting the same flash pattern and joining the white wires together.

What standards are listed for this model?

The supplied product data lists SAE J845 Class 1, ECE R65 and ECE R10.

Can this magnetic light bar remain fitted while driving?

The supplied operating instructions state that the magnetic suction mount is intended for temporary use only and includes a warning that the magnetic warning lamp has been rated for use at speeds not exceeding 100 km/h. Users should follow the manufacturer's instructions and ensure the unit is securely mounted before operation.
