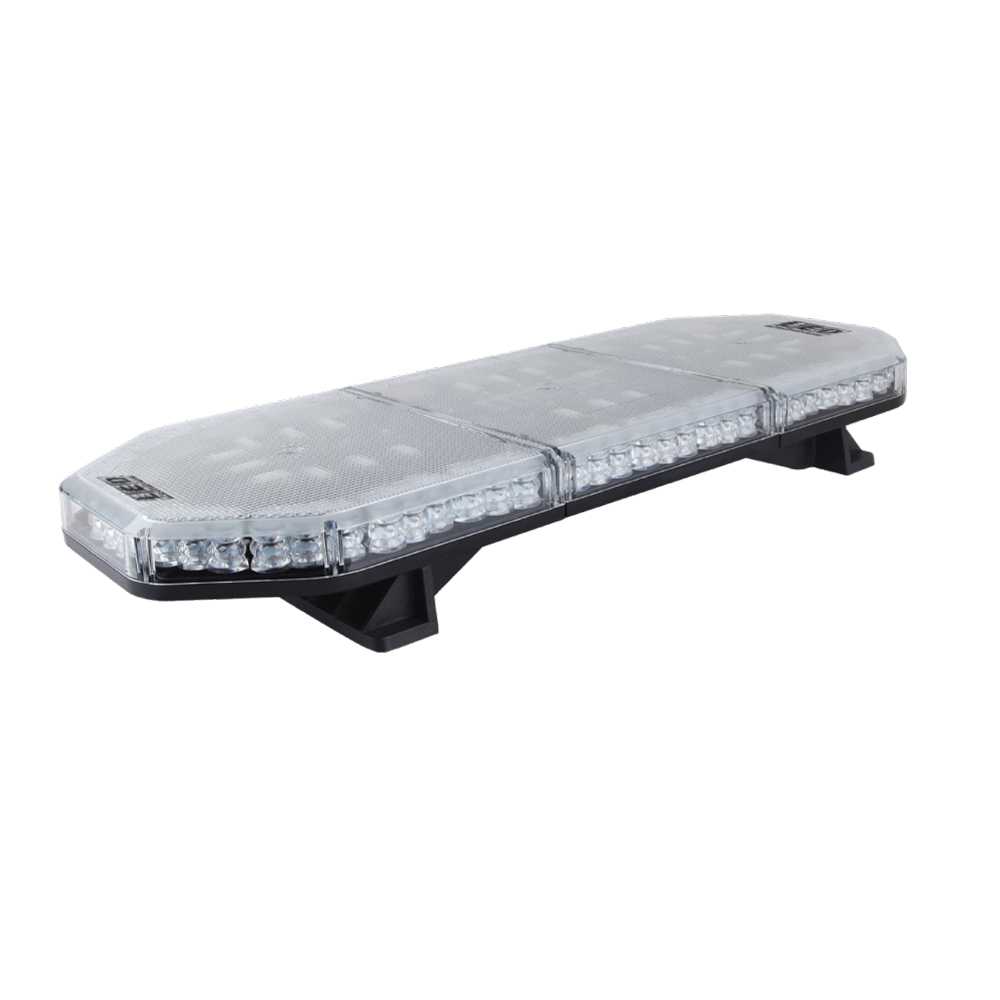

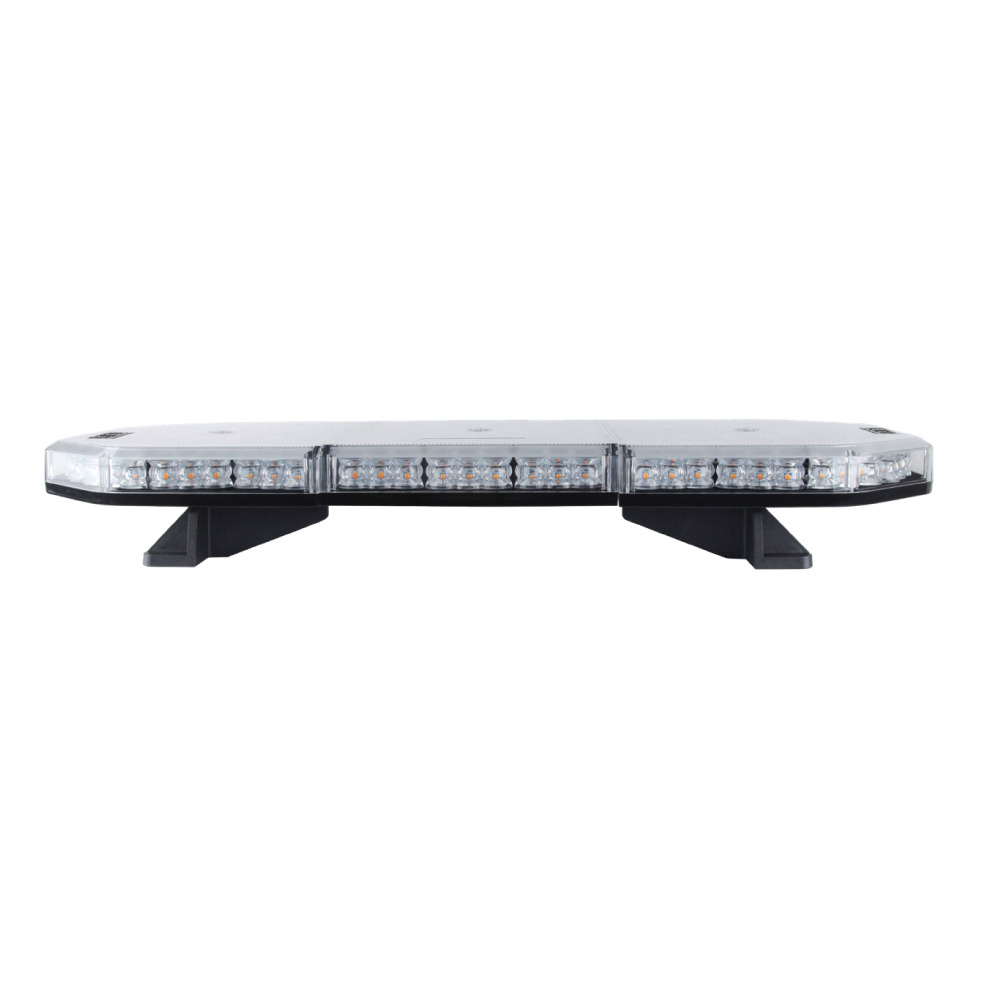

The LB744ACM amber LED warning light bar is a 744mm rooftop warning light bar designed to support vehicle visibility in traffic control, civil, utility, council and mobile works environments. It delivers amber warning output for work vehicles operating around roadside works, maintenance activities and fleet-based site operations.

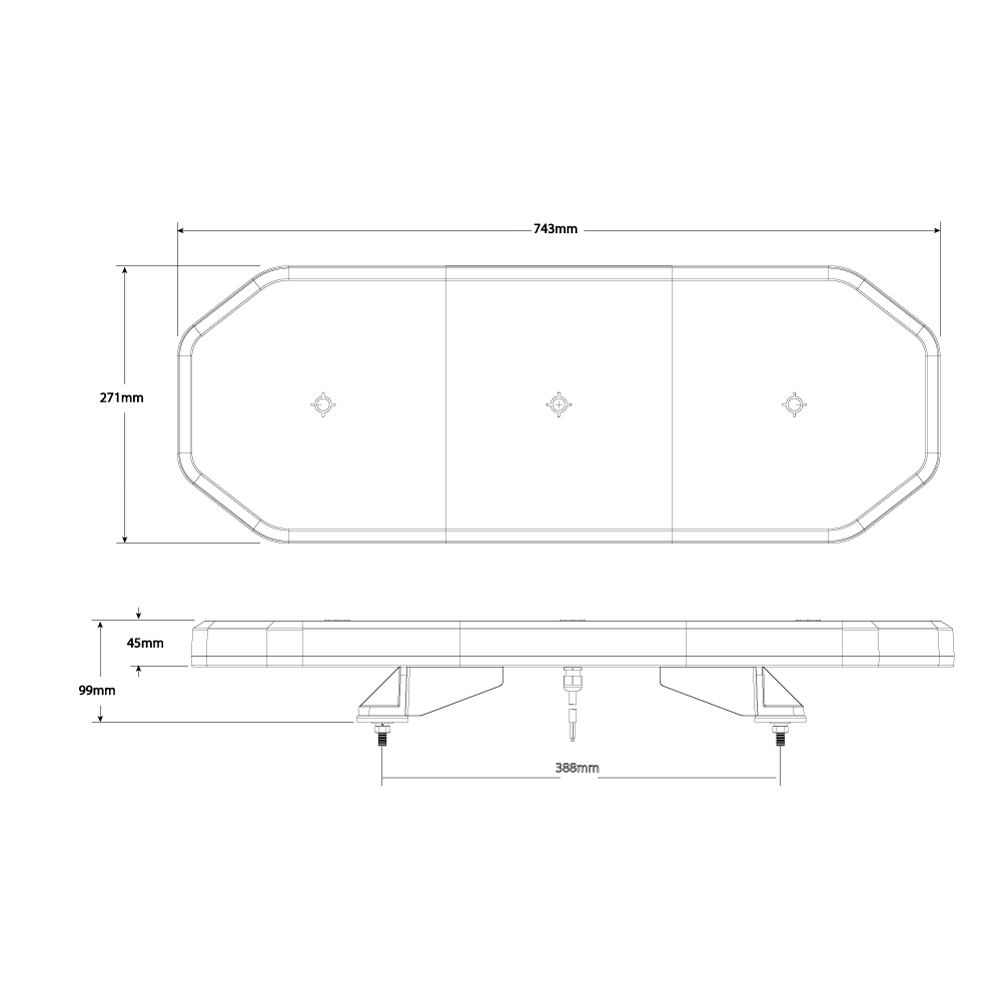

This model uses permanent four-point mounting feet for fixed roof installation. The low-profile 743mm body suits commercial vehicle fitouts where a mounted amber warning light bar is required rather than a temporary or plug-in unit.

The LB744ACM operates across a 10–30V DC voltage range and uses 72 x 1W LEDs. It includes 19 selectable flash patterns, with supplied operating instructions listing synchronisation capability on patterns 1–12 when multiple compatible units are configured together.

The light bar has an IP65 ingress protection rating for exposed vehicle mounting positions. Supplied product data lists a polycarbonate lens, ABS housing, aluminium thermal component and stainless steel fittings, supporting use in vehicle environments exposed to weather, dust and vibration.

The supplied product data lists ECE R65, ECE R10 and SAE J845 Class 1. These listed standards relate to the product data supplied for this light bar and should not be treated as road authority approval or confirmation of suitability for every vehicle or operating environment.

Commonly used on traffic management vehicles, civil fleet vehicles, utility vehicles, council vehicles and mobile works vehicles. Selection, installation and use should be based on the vehicle setup, operating conditions, project requirements and applicable road authority requirements. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use.

Vehicle warning systems support visibility but do not replace a traffic management plan, traffic guidance scheme, site controls or safe operating procedures. Final configuration and use should align with project-specific requirements, applicable standards and site conditions.

LED Warning Light Bar FAQs

What vehicles is the LB744ACM light bar commonly used on?

The LB744ACM is commonly used on traffic control vehicles, civil fleet vehicles, utility vehicles, council vehicles and mobile works vehicles where the vehicle setup and operating requirements support its use.

How does this warning light bar mount to the vehicle?

This model uses permanent four-point mounting feet for fixed rooftop installation.

What voltage range does the LB744ACM support?

The supplied product data lists a 10–30V DC voltage range.

How many flash patterns does this light bar have?

The LB744ACM has 19 selectable flash patterns.

Can multiple LB744ACM light bars be synchronised?

Supplied operating instructions list synchronisation for the LB744ACM on flash patterns 1–12 when compatible units are configured together.

What standards are listed for this light bar?

The supplied product data lists ECE R65, ECE R10 and SAE J845 Class 1. These listed standards should be checked against project requirements, vehicle requirements and applicable road authority requirements before use.

Is this light bar road authority approved?

Road authority approval or acceptance has not been claimed. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use.
