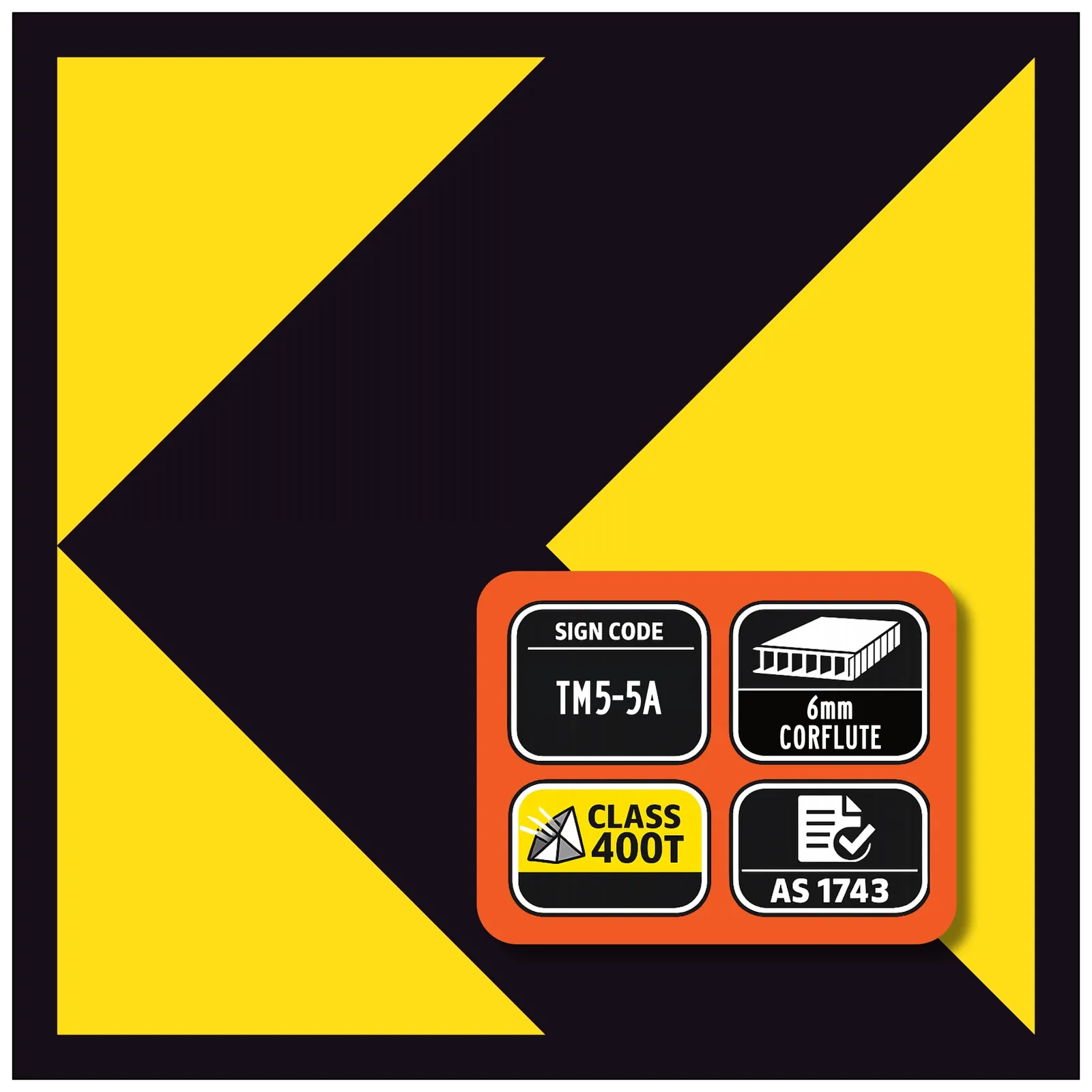

Temporary Hazard Marker (SYM) TM5-5A (600x600mm) corflute sign panel displays a black chevron-style temporary hazard marker symbol on a yellow retroreflective background. Commonly called a chevron sign, it is used in temporary traffic management setups where road users need visual guidance through a change in alignment, temporary lane deviation, worksite edge or hazard area.

The signface layout, chevron symbol and colours follow the applicable AS 1743:2023 signface design for the TM5-5A code. This TM Series temporary hazard marker / chevron delineation panel is supplied as a modular corflute panel for use with compatible temporary roadwork sign frame systems.

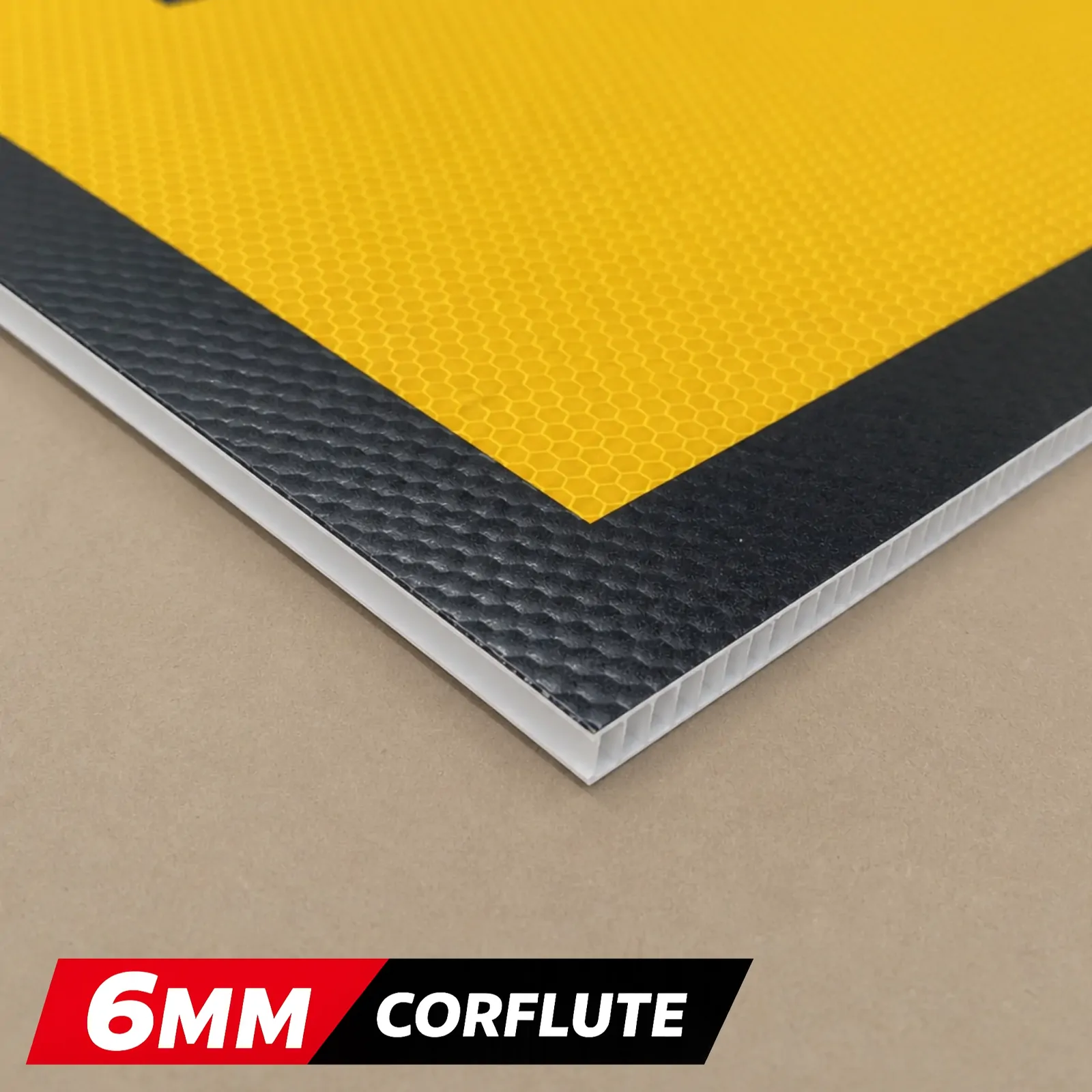

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black chevron symbol, black border and yellow retroreflective background support clear temporary hazard marker visibility where this panel is specified.

This 600x600mm corflute sign panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm corflute panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 600x600mm corflute panels and the overall sign arrangement is suitable.

In practical use, this panel may be used to guide drivers through lateral shifts, temporary lane deviations, changed alignments, chicanes, median openings, traffic islands, worksite edges or non-trafficable areas adjacent to the travelled path where a temporary hazard marker is specified.

In compatible Multi-Message Sign Frame No. 1 arrangements, this panel may be used with related warning, condition or guidance panels such as Reduce Speed, Prepare To Stop, Merge Left, Merge Right, Two Way Traffic, Road Work Ahead, Lane Closed or other relevant temporary traffic management panels where specified by the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements.

This panel provides temporary hazard marker / chevron delineation information only. It does not create a lawful lane shift, road closure, lane closure, traffic diversion, site compliance, TMP validity, TGS validity or approved traffic control arrangement by itself, and it does not replace cones, bollards, barriers, delineators, lane closure devices, physical controls or approved traffic guidance layouts where those are required.

Selection, placement, orientation, spacing, pairing, visibility, frame arrangement and use remain subject to the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements.

Temporary Hazard Marker TM5-5A FAQs

What is the Temporary Hazard Marker TM5-5A panel used for?

This panel is used to help guide road users through changes in travel path alignment and to delineate hazards, non-trafficable areas or worksite edges adjacent to the travelled path where specified as part of a broader temporary traffic management arrangement.

Is this the same as a chevron sign?

Yes. This panel is commonly called a chevron sign because it displays a black chevron-style temporary hazard marker symbol on a yellow retroreflective background. The formal national code used for this listing is TM5-5A.

What signface design does this panel follow?

The signface layout, chevron symbol and colours follow the applicable AS 1743:2023 signface design for TM5-5A. This wording refers to signface design only and does not determine site suitability, road authority approval or TMP/TGS compliance.

What do the TfNSW TM5-5n(A) and VicRoads TM5-V5 references mean?

TfNSW Sign Code TM5-5n(A), Drawing No. tm5-5n_a and VicRoads Sign Code TM5-V5, Drawing No. 541534 are supplied as state or legacy identification references only. They should not be treated as national codes, road authority approval claims, mandatory use requirements or confirmation of site suitability.

Is this a regulatory sign?

No. This product should not be described as a regulatory sign. It is supplied as a temporary traffic management temporary hazard marker / chevron delineation sign panel with the TM5-5A signface design.

What reflective sheeting is used?

This panel uses Class 400T retroreflective yellow sheeting with opaque black printing. Reflective wording relates to the supplied signface material and printed signface construction only. Selection and use remain subject to the applicable TMP, TGS, site conditions and project requirements.

Which frames is this 600x600mm panel compatible with?

This 600x600mm corflute panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm corflute panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 600x600mm corflute panels and the overall sign arrangement is suitable.

Can this panel be used in a Multi-Message Sign Frame No. 1?

Yes, where specified. It may be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame accepts 600x600mm corflute panels and the overall sign arrangement is suitable for the applicable temporary traffic management setup.

Can this panel be used with Reduce Speed, Prepare To Stop or Merge signs?

Yes, where specified. It may form part of a broader temporary traffic management arrangement with related warning, condition or guidance panels such as Reduce Speed, Prepare To Stop, Merge Left, Merge Right, Two Way Traffic, Road Work Ahead, Lane Closed or other relevant temporary traffic management panels where specified by the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements.

Does this panel create a compliant lane shift or traffic diversion by itself?

No. This panel does not create a lawful lane shift, road closure, lane closure, traffic diversion, site compliance, TMP validity, TGS validity or approved traffic control arrangement by itself. It is one component within a broader temporary traffic management arrangement.

Does this panel replace cones, bollards, barriers or delineation?

No. This panel does not replace cones, bollards, barriers, delineators, lane closure devices, physical controls or approved traffic guidance layouts where those are required.

Should placement and spacing be checked against the TMP or TGS?

Yes. Selection, placement, orientation, spacing, pairing, visibility, frame arrangement and use should be checked against the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements before use.
