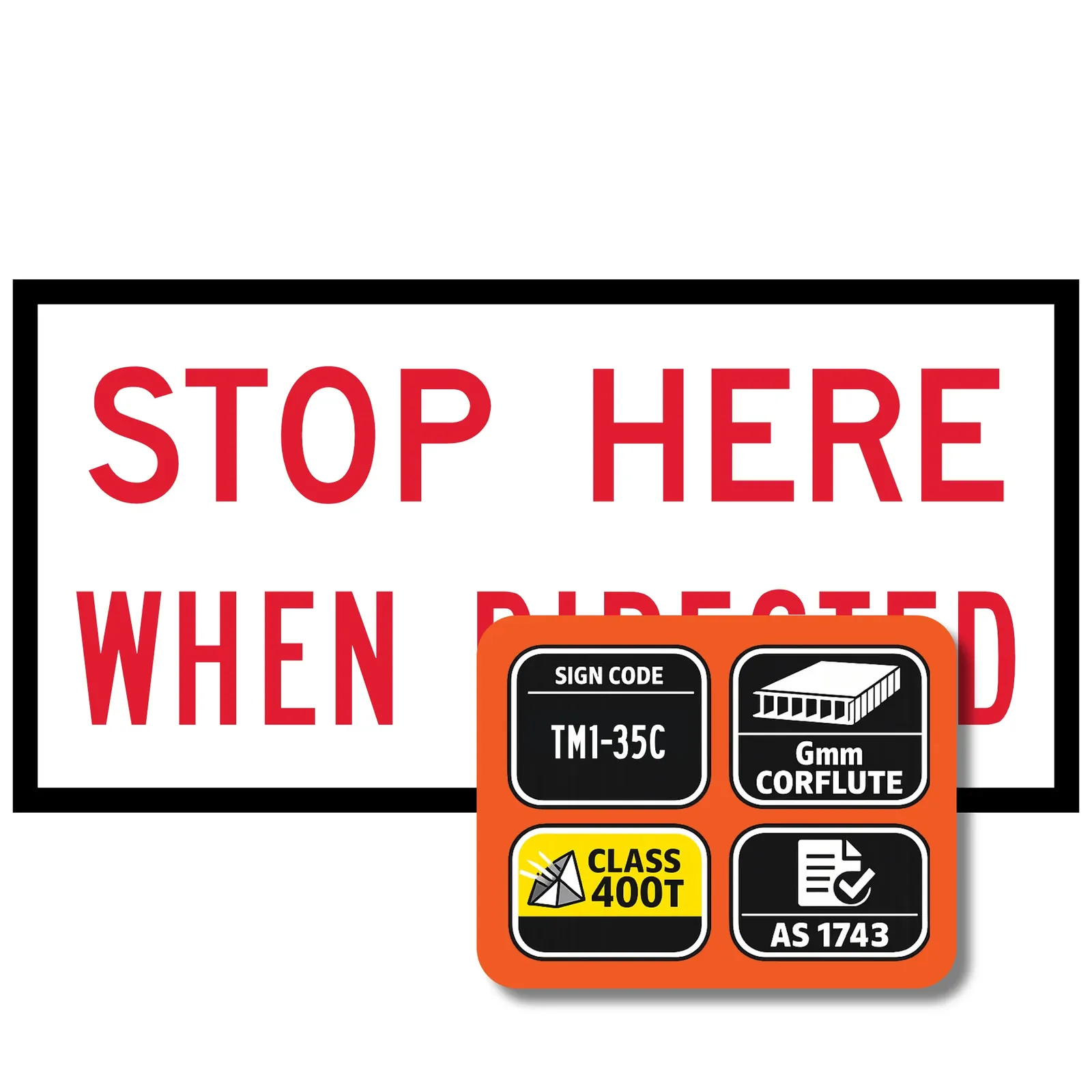

Stop Here When Directed TM1-35C (1200x600mm) corflute sign panel displays a STOP HERE WHEN DIRECTED message for temporary traffic management and site access arrangements where motorists may need to stop at a controlled point when directed under the applicable traffic management arrangement.

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for TM1-35C. This standard-listed TM Series temporary traffic management sign panel is supplied as a modular corflute panel for use in compatible temporary roadwork sign frame systems.

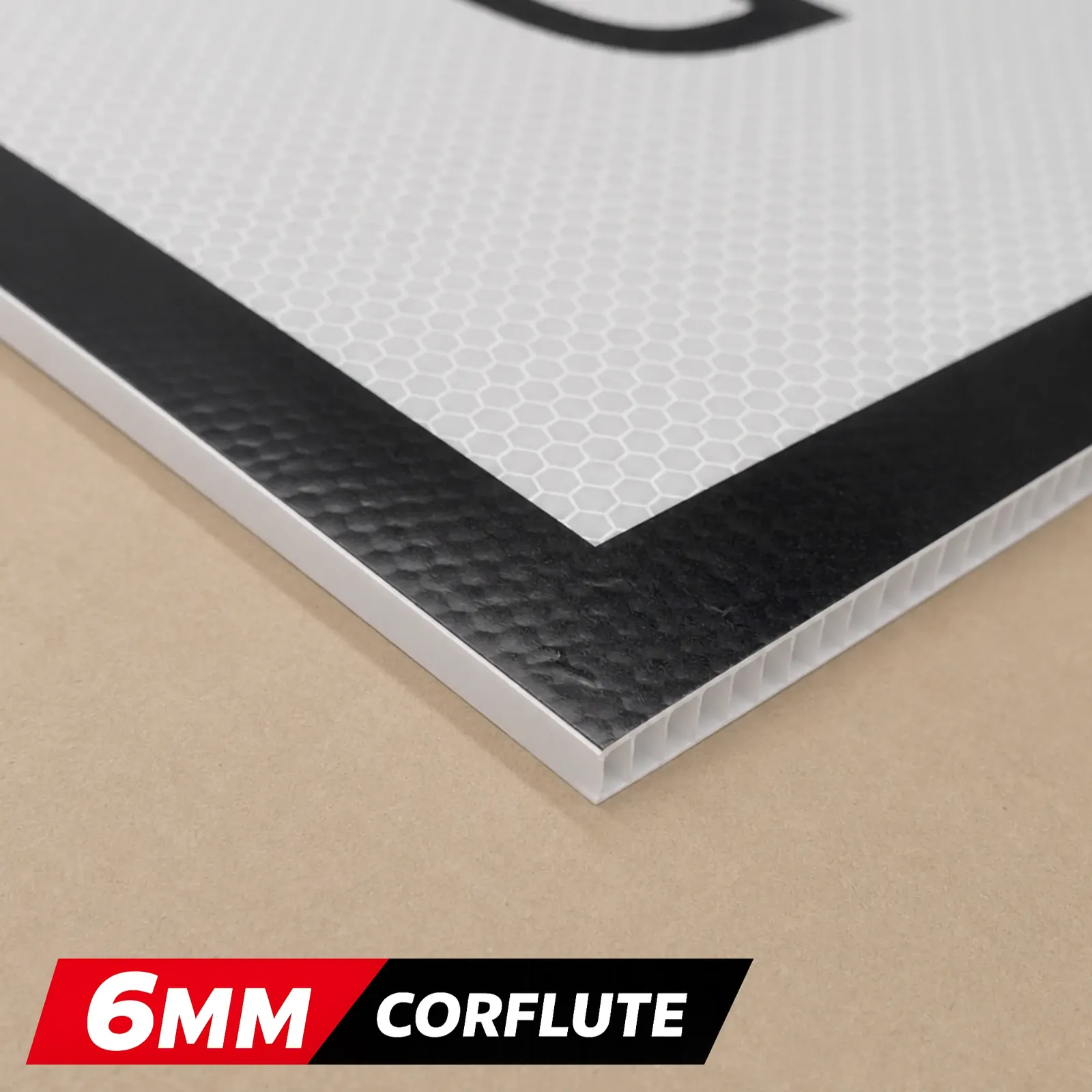

UAGS temporary traffic sign corflute panels are manufactured on 6mm UV stabilised corflute using Class 400T retroreflective white sheeting. The red uppercase legend, black border and white retroreflective background support visibility in temporary traffic management environments where this message is specified.

This 1200x600mm corflute sign panel is designed to slide into compatible temporary roadwork sign frames, including suitable Multi-Message Sign Frame No. 1 arrangements where the frame accepts a 1200x600mm corflute panel.

This panel may be used to indicate a controlled stopping point in temporary traffic arrangements where vehicles are being directed under traffic controller direction, portable signal control, changed lane conditions, detour arrangements or site access control. Typical use may include lane closures, alternating traffic flow, temporary intersection control, worksite entry points, road closures, detours, mobile works and changed traffic movement arrangements.

This panel may form part of broader temporary traffic management arrangements involving traffic controllers, stop / slow bats, signals, advance warning signs, lane condition signs, detour signs, cones, bollards, barriers, delineation devices, portable traffic signals or other site controls where specified. It should not be treated as creating the stopping requirement, authorising traffic control or controlling traffic flow by itself.

Selection, placement, panel arrangement and use remain subject to the applicable TMP, TGS, project requirements, site traffic management arrangement, facility requirements, site conditions and relevant authority requirements.

Stop Here When Directed TM1-35C FAQs

What is the Stop Here When Directed TM1-35C panel used for?

This panel displays a STOP HERE WHEN DIRECTED message for temporary traffic management and site access arrangements where motorists may need to stop at a controlled point when directed under the applicable site arrangement.

Is this a regulatory sign panel?

No. This product should not be described as a regulatory sign panel. It is supplied as a standard-listed TM Series temporary traffic management sign panel with the TM1-35C signface design.

Does this panel legally require motorists to stop by itself?

No. The panel does not legally require motorists to stop by itself and does not authorise traffic control. It may form part of a broader temporary traffic management arrangement where stopping, redirection or access control is managed under the applicable TMP, TGS, site arrangement, project requirements and relevant authority requirements.

What signface design does this panel follow?

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for TM1-35C. This wording refers to signface design only, not site compliance, road authority approval or TMP/TGS compliance.

What reflective sheeting is used?

This panel uses Class 400T retroreflective white sheeting. Reflective wording relates to the supplied signface material only. Selection and use remain subject to the applicable TMP, TGS, site conditions and project requirements.

Which frames is this panel compatible with?

This 1200x600mm corflute panel is designed to slide into compatible temporary roadwork sign frames, including suitable Multi-Message Sign Frame No. 1 arrangements where the frame accepts a 1200x600mm corflute panel. Frame slot size, panel arrangement and deployment requirements should be confirmed before use.

Can this panel be used with other traffic control signs or devices?

It may be used with logically related temporary traffic management signs and devices such as Road Work Ahead, Prepare To Stop, Traffic Controller Ahead, stop / slow bats, Detour, Road Closed, Lane Closed Ahead, cones, bollards, barriers, delineation devices, portable traffic signals or traffic controllers where specified by the applicable TMP, TGS, site arrangement, project requirements, site conditions or relevant authority requirements.
