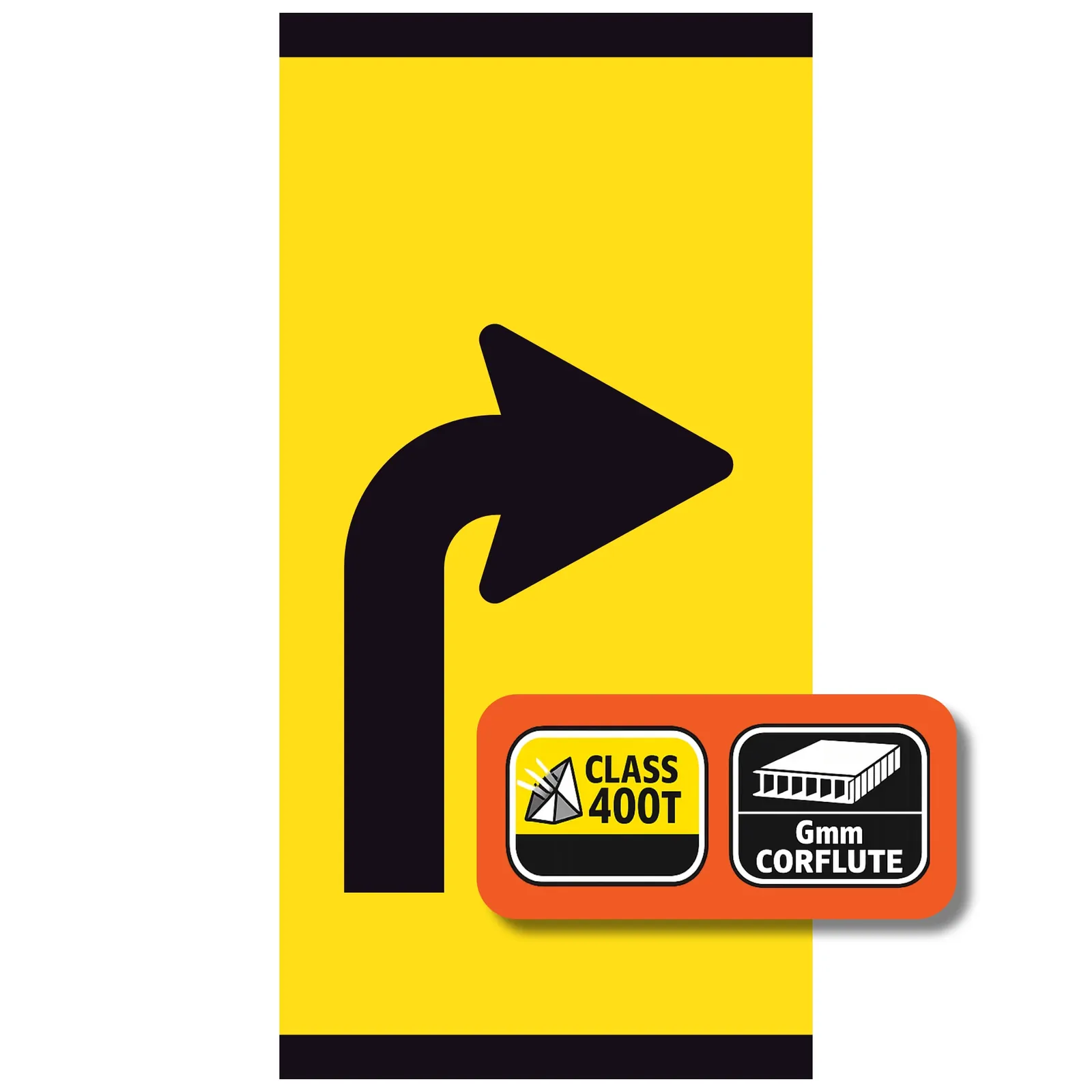

Right Turn Lane Ahead Partial Panel (300x600mm) corflute sign panel is a modular lane status partial panel used to display a black right-turn arrow / right-turn lane ahead symbol within a compatible Lane Status sign arrangement. It is intended to be used with other compatible partial panels, not as a complete Lane Status sign by itself.

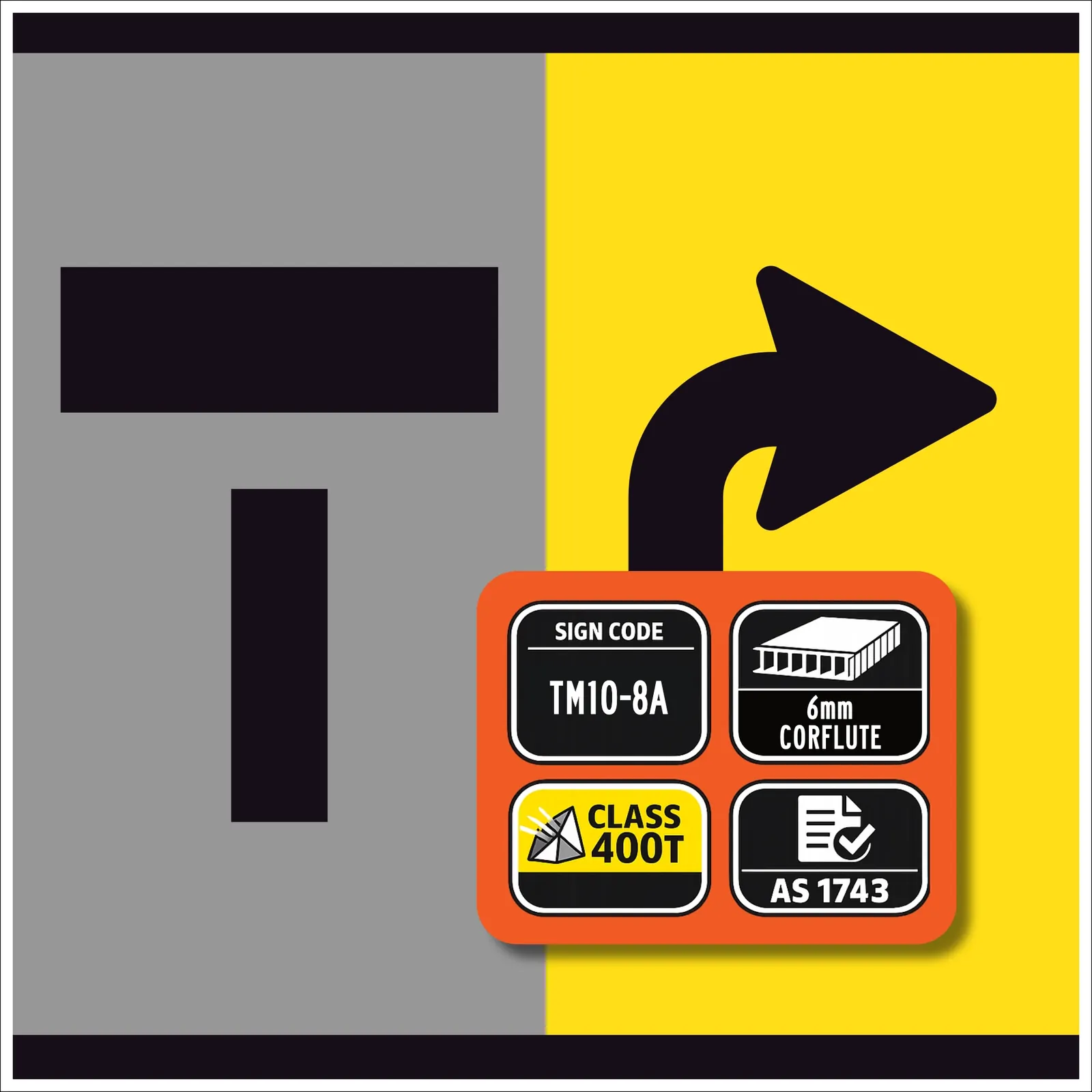

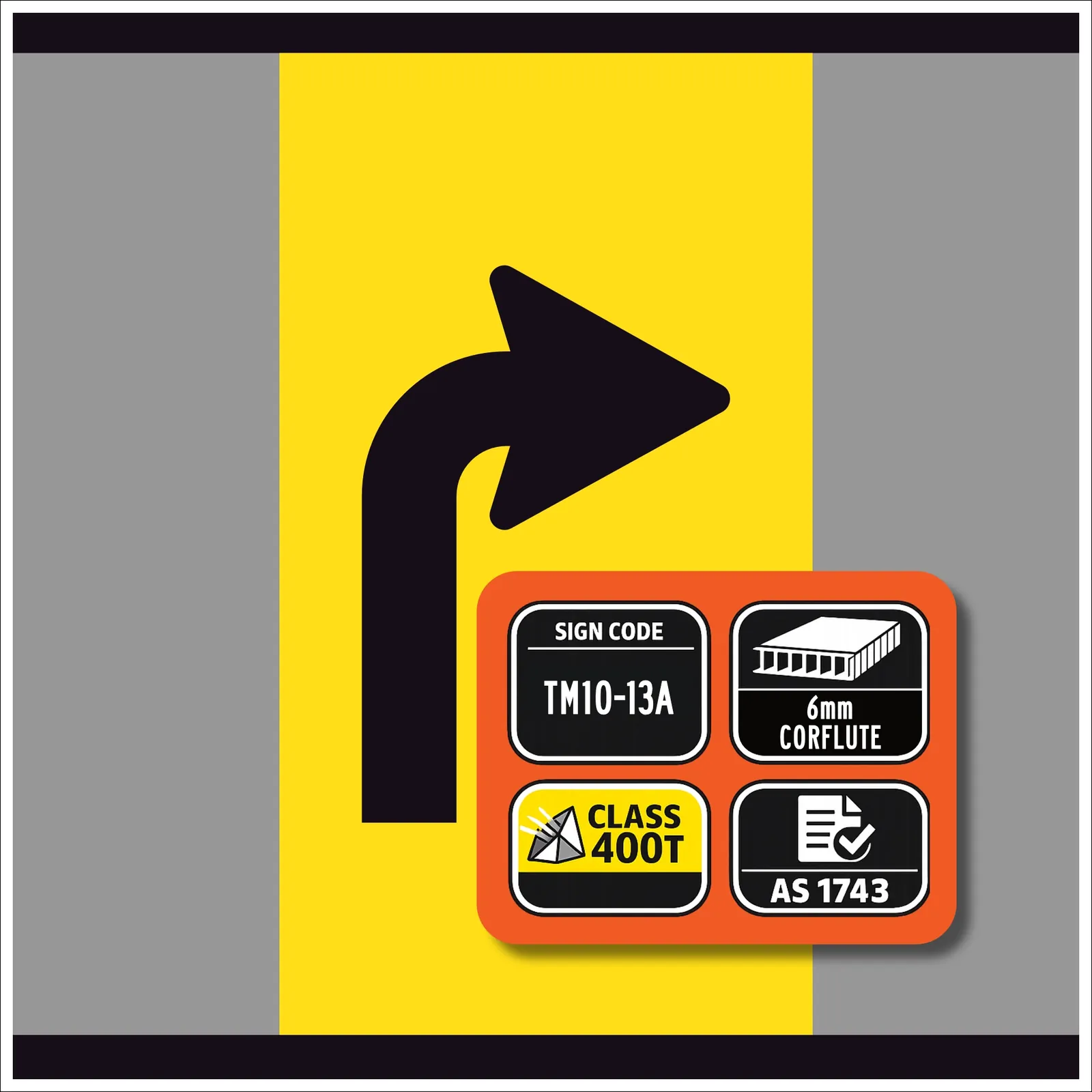

This is an individual 300x600mm lane status partial panel. No verified national code has been supplied for this partial panel by itself. It may be used with other compatible lane status partial panels to configure complete TM10 Series Lane Status sign arrangements, including arrangements such as TM10-8A and TM10-11A where the full panel combination, lane arrangement, frame layout, lane count, permitted movements and sign code relationship are specified. This individual panel must not be treated as the complete TM10-8A or TM10-11A sign by itself.

VicRoads Sign No. TM10-V101 and drawing no. 763697 are supplied as state / legacy references only. These references must not be treated as national codes, road authority approval claims, national use requirements or confirmation of site suitability.

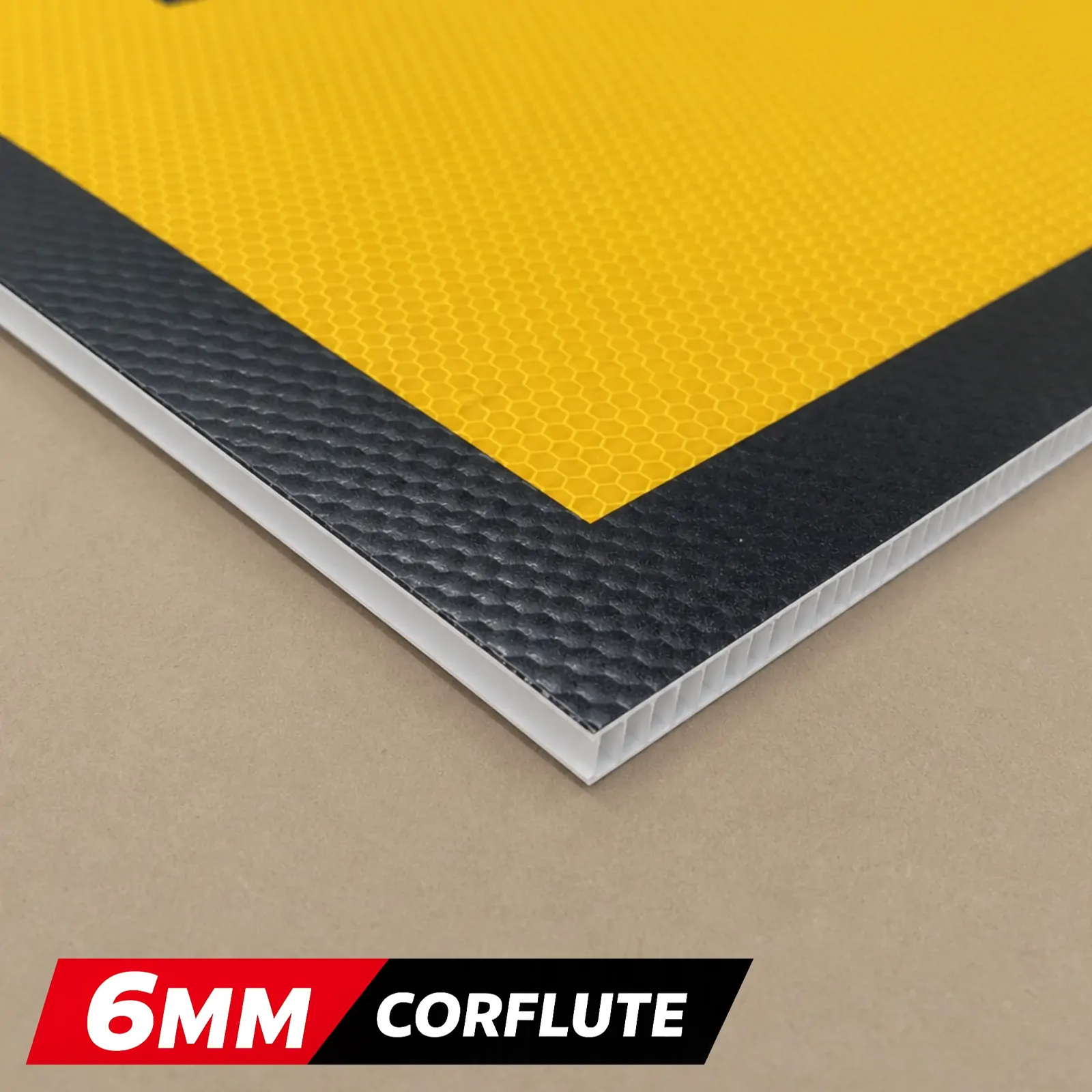

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black right-turn arrow symbol and yellow retroreflective background support clear lane status messaging where this partial panel is specified as part of a compatible sign arrangement.

In deployment-context terms, Lane Status signs are used to give advance warning where one or more lanes of a multilane roadway is closed or where the direction a lane leads to is altered, such as left turn, through/ahead or right turn. This partial panel provides one right-turn lane symbol only and must be used as part of a suitable complete lane status arrangement where required.

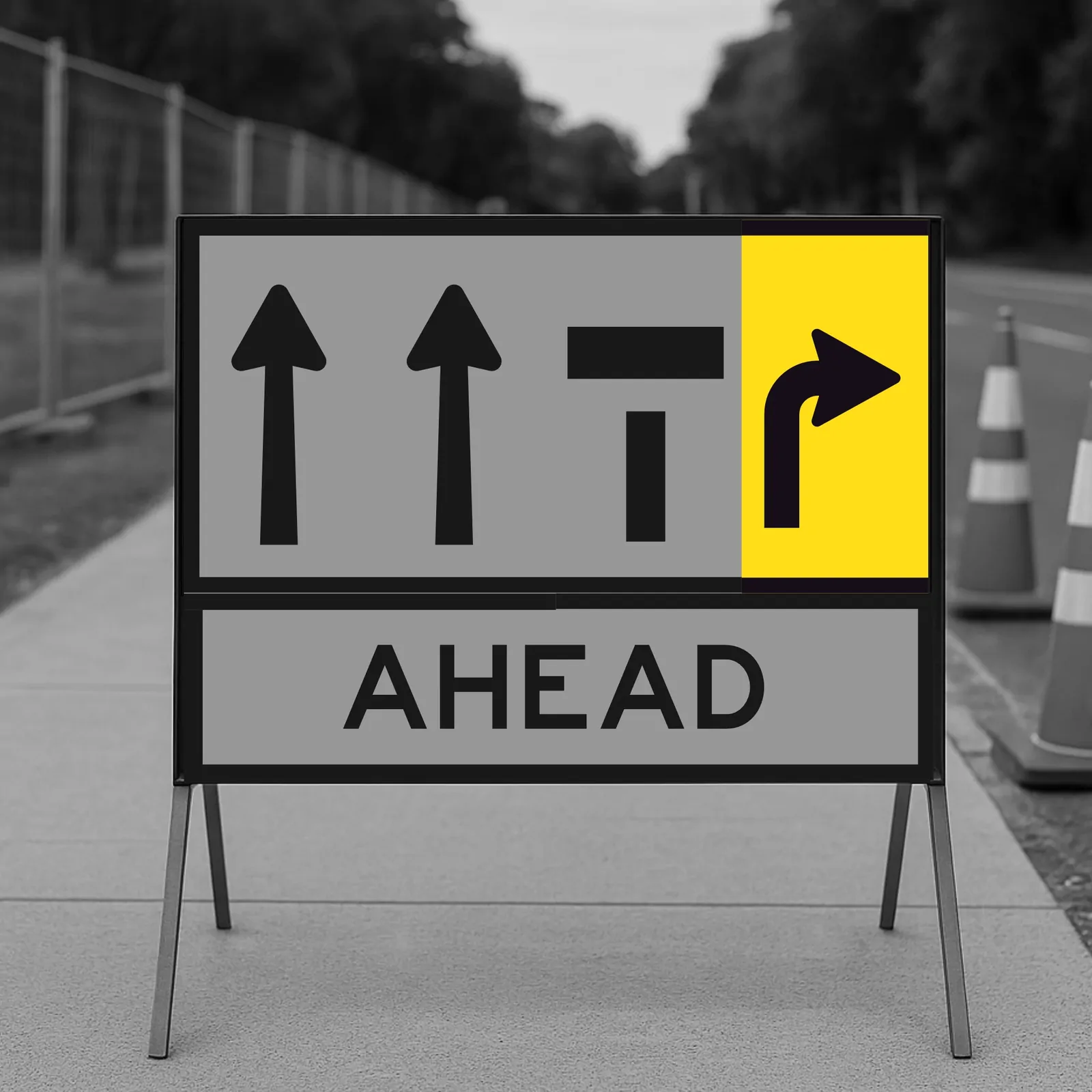

This 300x600mm corflute partial panel is compatible with suitable temporary roadwork sign frame systems that accept 300x600mm partial panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame layout, panel combination and lane status configuration are suitable.

This panel does not replace adequate signing, delineation, lane closure devices or other temporary traffic control measures where those are required. Selection, panel combination, lane count, arrow direction, placement, frame arrangement and use remain subject to the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.

Right Turn Lane Ahead Partial Panel FAQs

What is the Right Turn Lane Ahead partial panel used for?

This 300x600mm partial panel provides a right-turn lane-ahead symbol for use within a compatible Lane Status sign arrangement. It may be used where a right-turn lane status symbol is specified as part of a TGS, TMP, roadwork site arrangement, lane closure arrangement, lane direction arrangement or project requirement.

Does this 300x600mm partial panel have its own national code?

No verified national code has been supplied for this individual 300x600mm partial panel. It should be treated as a modular partial panel, not as a complete national-code Lane Status sign by itself.

Is this the same as TM10-8A?

No. TM10-8A may be referenced only as an example of a complete Lane Status sign arrangement that may be created using compatible partial panels where the full panel combination, lane arrangement and frame layout are specified. This individual 300x600mm panel must not be assigned TM10-8A as its product code.

What does VicRoads TM10-V101 mean?

VicRoads TM10-V101, drawing no. 763697, is supplied as a state / legacy reference for this lane status partial panel. It must not be treated as a national code, road authority approval claim, national use requirement or confirmation of site suitability.

Can this panel be used to configure TM10 Series national-code signs?

Yes, where specified as part of a complete compatible arrangement. This right-turn lane ahead partial panel may be used with other compatible lane status partial panels to configure complete TM10 Series Lane Status sign arrangements, including arrangements such as TM10-8A and TM10-11A where the full panel combination, lane arrangement, frame layout and sign code relationship are specified. The individual 300x600mm panel must not be treated as the complete national-code sign by itself.

What frame does this panel suit?

This 300x600mm panel is compatible with suitable temporary roadwork sign frame systems that accept 300x600mm corflute partial panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 300x600mm partial panels and the overall lane status arrangement is suitable.

How should multiple lane status partial panels be arranged?

Lane Status signs are made up of arrows and T symbols displayed across the complete sign. Each arrow or T symbol represents a single lane. If multiple partial panels are combined, the final arrangement should be checked against the applicable TMP, TGS, lane configuration, frame layout, site conditions and authority requirements.

Does this panel create a compliant lane closure or lane direction arrangement?

No. This partial panel alone does not create a compliant lane closure, lane direction arrangement, complete Lane Status sign, TMP validity, TGS validity, road authority approval or site compliance. Correct use depends on the complete sign arrangement, panel combination, frame system, lane count, lane direction, signing, delineation, site conditions and relevant authority requirements.

Does this panel replace other signing or delineation?

No. This panel does not replace adequate signing, delineation, lane closure devices or other temporary traffic control measures where those are required by the applicable TMP, TGS, site arrangement or project requirements.
