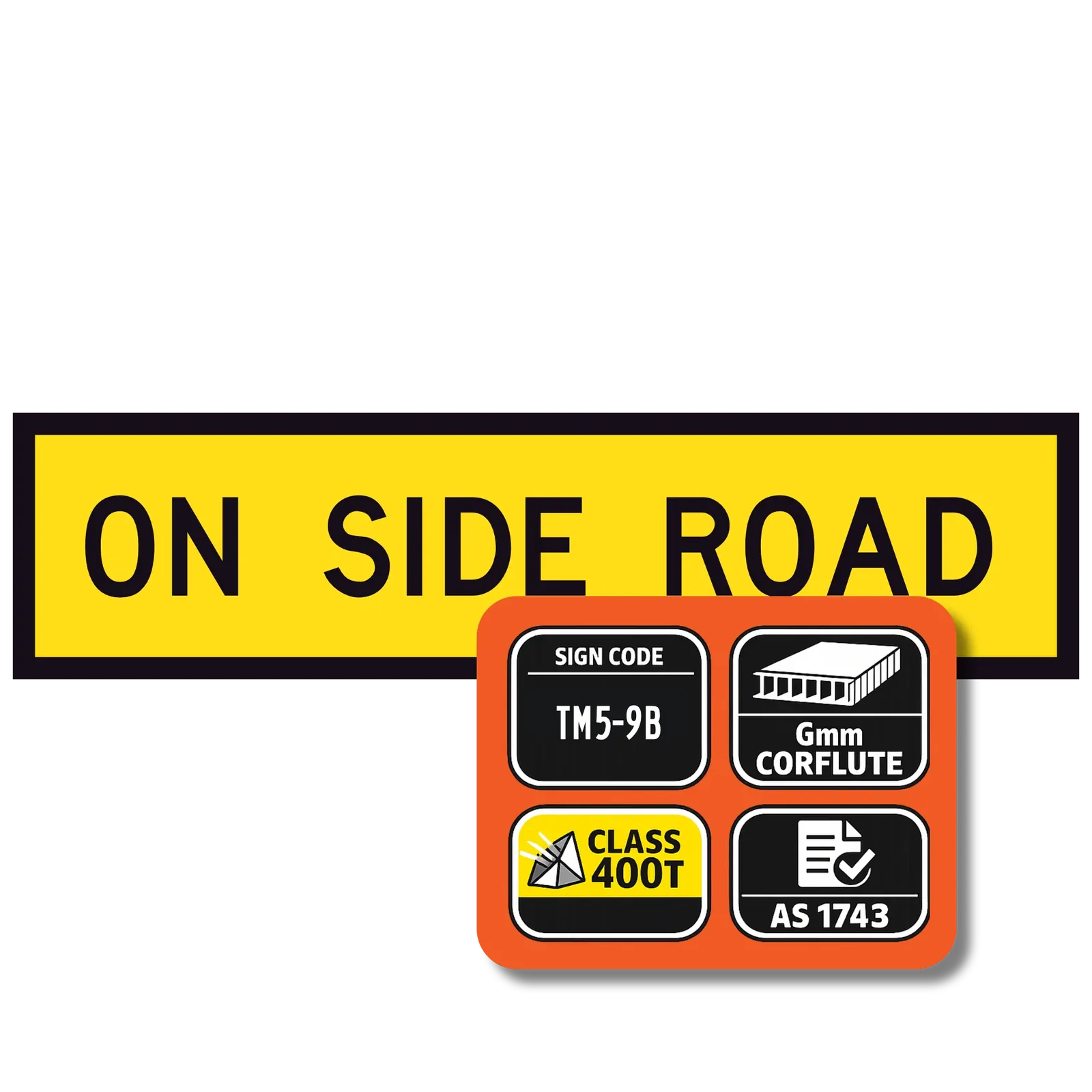

On Side Road TM5-9B (1200x300mm) corflute sign panel displays an ON SIDE ROAD supplementary message for temporary traffic management arrangements where the associated warning condition is located on an intersecting side road.

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for TM5-9B. This standard-listed supplementary / side-road message TM Series temporary traffic management sign panel is supplied as a modular corflute panel for use with compatible temporary roadwork sign frame systems.

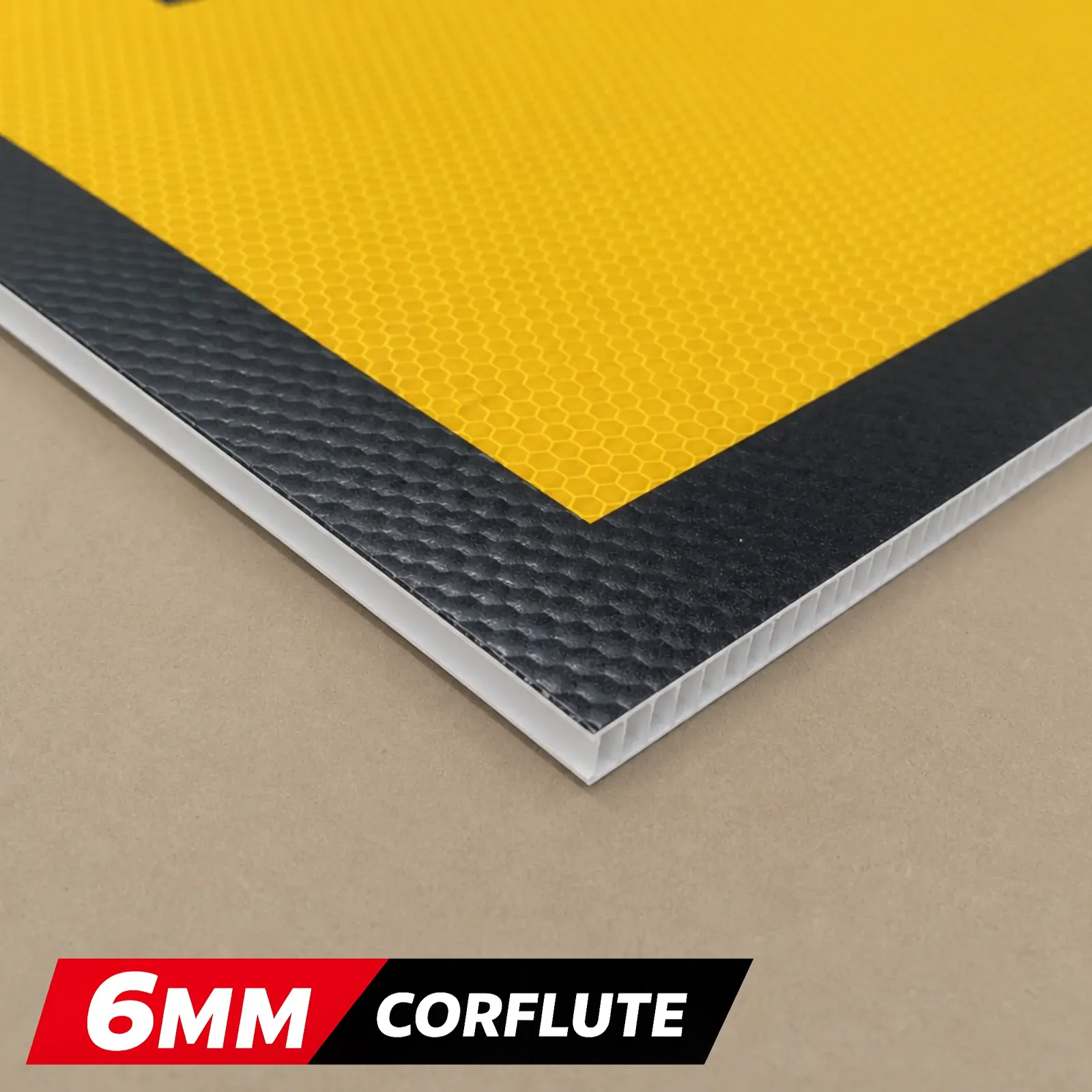

UAGS temporary traffic sign corflute panels are manufactured on 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting. The black uppercase legend and yellow retroreflective background support use in temporary traffic management setups where this supplementary side-road message is specified.

This 1200x300mm corflute sign panel is designed to slide into compatible temporary roadwork sign frames, including suitable Multi-Message Sign Frame No. 1 lower panel arrangements where the frame accepts a 1200x300mm corflute panel.

This panel may be used where the associated warning condition is located on an intersecting side road rather than directly on the main carriageway, where specified as part of the applicable temporary traffic management setup. Typical use may include side road works, intersecting road works, utility works, side street works, junction works, intersection modifications, local access changes, civil works, maintenance works and changed traffic condition arrangements.

As a supplementary side-road message panel, TM5-9B is used with a compatible primary warning sign where the applicable TMP, TGS, project requirements, site arrangement or relevant authority requirements specify that the warning condition is located on a side road. It should not be treated as a standalone warning sign, standalone roadwork warning sign or complete temporary traffic management arrangement by itself.

This panel may form part of a broader temporary traffic management arrangement with a compatible primary warning sign where an ON SIDE ROAD supplementary message is specified. It should not be treated as creating, authorising or legally controlling the side-road works arrangement by itself.

Selection, placement, panel arrangement and use remain subject to the applicable TMP, TGS, project requirements, site traffic management arrangement, site conditions and relevant authority requirements.

On Side Road TM5-9B Supplementary Panel FAQs

What is the On Side Road TM5-9B panel used for?

This panel displays an ON SIDE ROAD supplementary message for temporary traffic management arrangements where the associated warning condition is located on an intersecting side road rather than directly on the main carriageway.

Is this a standalone warning sign?

No. This product is a supplementary side-road message panel. It should be used with a compatible primary warning sign where specified, not as a standalone warning sign, standalone roadwork warning sign or complete traffic control arrangement by itself.

Which primary warning signs may this panel be used with?

This panel may be used with logically related primary warning signs such as Road Work Ahead, Worker symbolic or other suitable side-road warning arrangements where the applicable TMP, TGS, site arrangement, project requirements, site conditions or relevant authority requirements specify an ON SIDE ROAD supplementary message.

Is this a regulatory sign panel?

No. This product should not be described as a regulatory sign panel. It is a standard-listed supplementary / side-road message TM Series temporary traffic management sign panel with the TM5-9B signface design.

What signface design does this panel follow?

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for TM5-9B. TM1-V27, VicRoads Drawing No. 541484 and T1-25-1M are supplied as state or legacy references only and are not road authority approval claims.

What reflective sheeting is used?

This panel uses Class 400T retroreflective yellow sheeting. Reflective wording relates to the supplied signface material only. Selection and use remain subject to the applicable TMP, TGS, site conditions and project requirements.

Which frames is this panel compatible with?

This 1200x300mm corflute panel is designed to slide into compatible temporary roadwork sign frames, including suitable Multi-Message Sign Frame No. 1 lower panel arrangements where the frame accepts a 1200x300mm corflute panel. Frame slot size, panel arrangement and deployment requirements should be confirmed before use.

Does this panel create or authorise a side-road works arrangement?

No. This panel does not create, authorise or legally control a side-road works arrangement by itself. It may form part of a broader temporary traffic management arrangement where an ON SIDE ROAD supplementary message is specified by the applicable TMP, TGS, site arrangement, project requirements, site conditions or relevant authority requirements.

Can this panel be used with other signs or site controls?

Yes, where specified. This supplementary side-road message panel is generally used with a compatible primary warning sign where the applicable TMP, TGS, site arrangement, project requirements, site conditions or relevant authority requirements specify an ON SIDE ROAD supplementary message.
