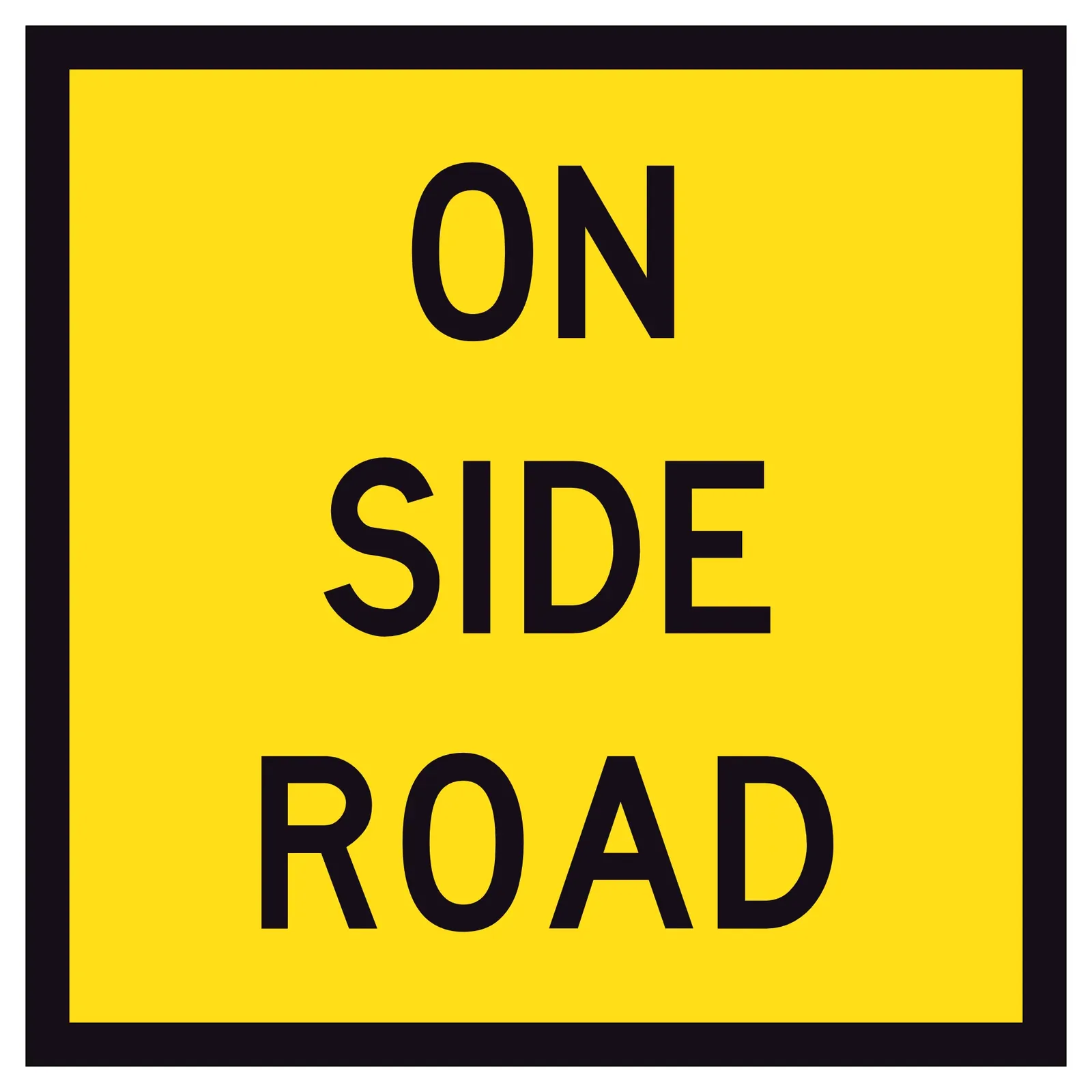

On Side Road TM5-9A (600x600mm) corflute sign panel displays an ON SIDE ROAD supplementary message on a yellow retroreflective background. It is used in temporary traffic management setups where the associated roadwork, detour, access change or warning condition applies to a side road as part of the site arrangement.

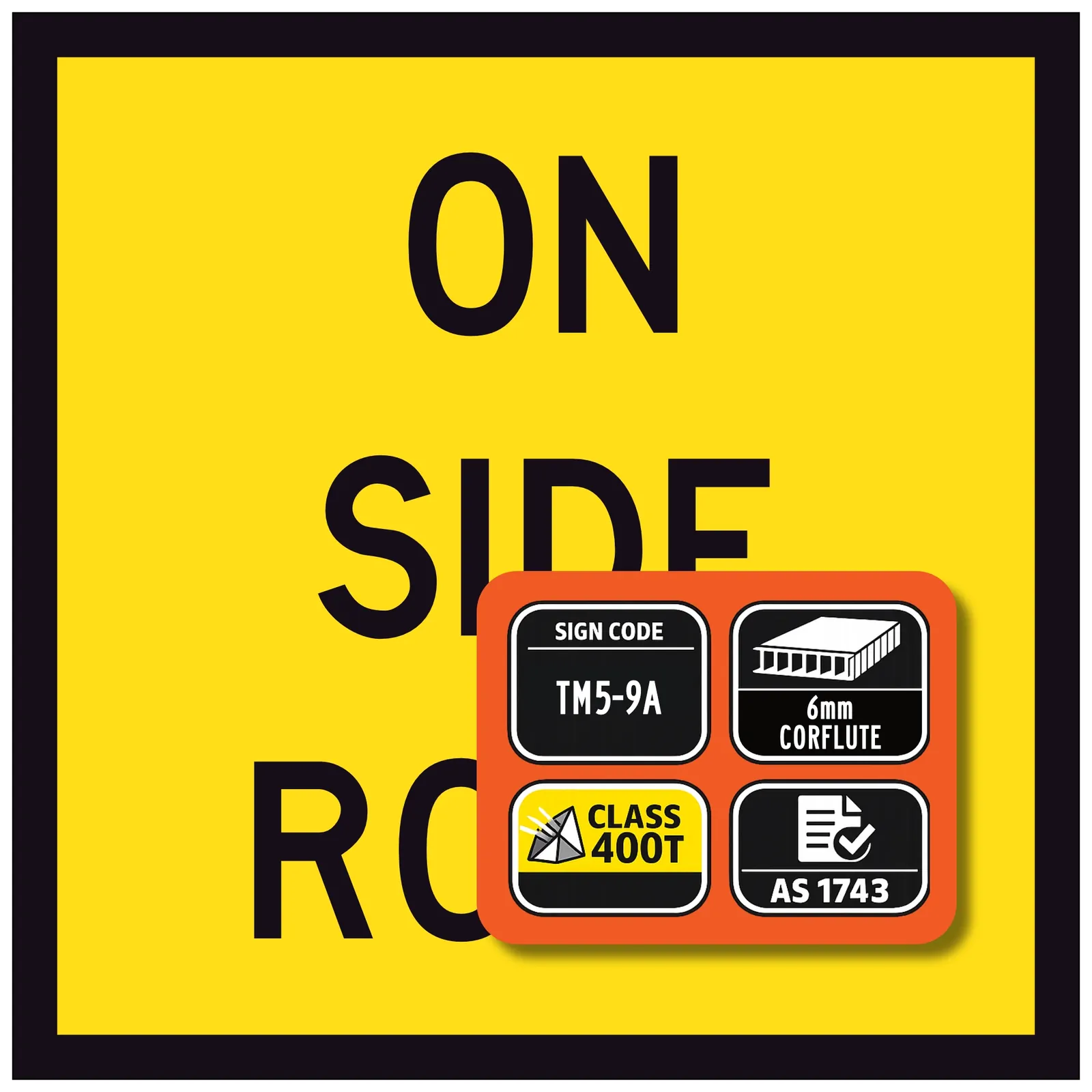

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for the TM5-9A code. This TM Series supplementary / side-road message panel is supplied as a modular corflute panel for use with compatible temporary roadwork sign frame systems.

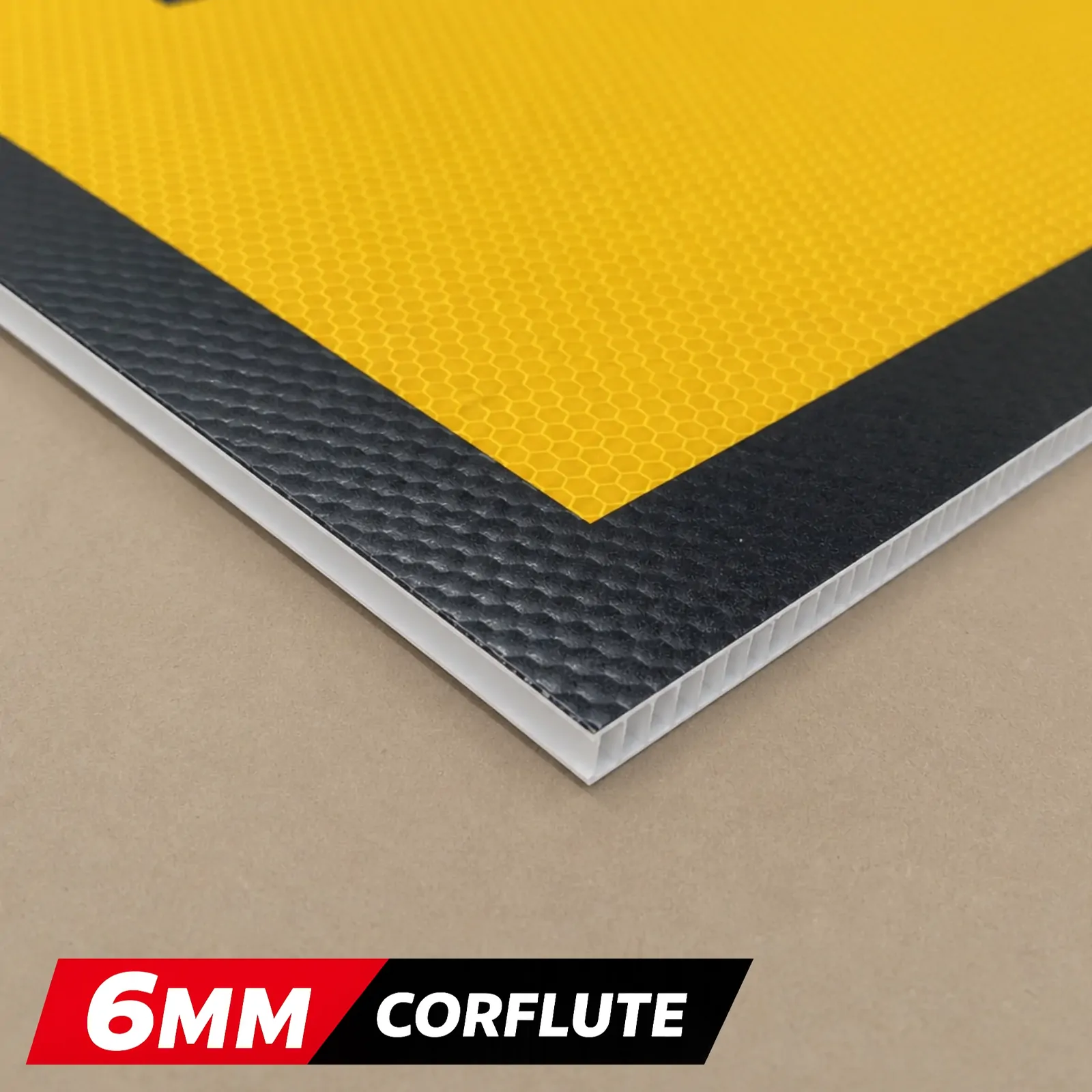

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black uppercase ON SIDE ROAD legend, black border and yellow retroreflective background support clear supplementary side-road messaging where this panel is specified.

This 600x600mm corflute sign panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm corflute panels, including suitable 600x600mm Double-Sided Traffic Sign Frame Type 5 arrangements. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 600x600mm corflute panels and the overall sign arrangement is suitable.

In practical use, this panel may be used for side road works, utility works on side roads, roadwork sites near intersections, temporary access changes, detour routes, event traffic management, maintenance works, side-road closures and other temporary traffic management layouts where an ON SIDE ROAD message is specified as part of the site arrangement.

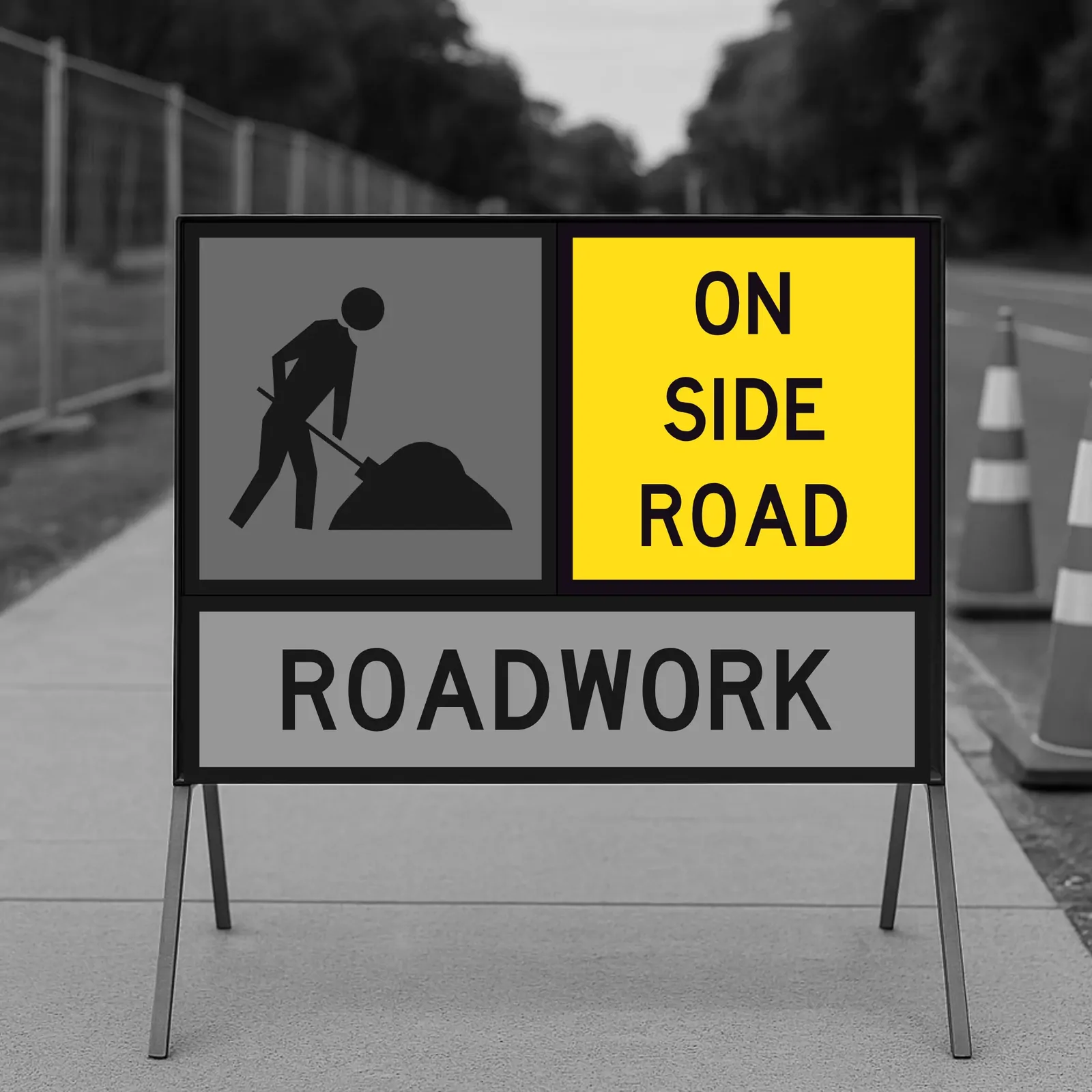

In Multi-Message Sign Frame No. 1 arrangements, this panel may be paired with relevant warning, roadwork or directional panels to show that the associated condition applies on a side road. Panel pairing, arrow direction, frame layout and placement should match the applicable TMP, TGS, side-road arrangement, site arrangement, project requirements and relevant authority requirements.

Where specified for the site arrangement, related panels may include Road Work, roadwork symbolic panels, directional arrow panels, Detour, Detour Ahead, Road Closed, Road Closed Ahead, Changed Traffic Conditions, Prepare To Stop, Traffic Controller Ahead, Local Traffic Only, No Through Road or suitable supplementary context panels.

This panel provides supplementary side-road message or site awareness information only. It does not create a lawful side-road closure, detour, roadwork arrangement, access restriction, site compliance, TMP validity, TGS validity or approved traffic control arrangement by itself. Selection, placement, panel pairing, visibility, frame arrangement and use remain subject to the applicable TMP, TGS, side-road arrangement, site arrangement, project requirements, site conditions and relevant authority requirements.

On Side Road TM5-9A Sign Panel FAQs

What is the On Side Road TM5-9A panel used for?

The On Side Road TM5-9A panel is used as a supplementary message panel to indicate that the associated temporary traffic management condition, roadwork activity, detour, access change or warning condition applies to a side road rather than the main traffic path.

Is this a standard-listed TM Series sign panel?

Yes. This panel is supplied with the verified national code TM5-9A and is classified as a TM Series temporary traffic management supplementary / side-road message sign panel. Site use still depends on the applicable TMP, TGS, side-road arrangement, site conditions and relevant authority requirements.

What do the QLD MUTCD TC1820 and SA DTI T1-25-2M references mean?

QLD MUTCD Sign Code TC1820 and SA DTI Sign Code T1-25-2M are supplied as state identification references only. They must not be treated as national codes, road authority approval claims, mandatory use requirements or confirmation of site suitability.

What signface design does this panel follow?

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for the TM5-9A code. This wording relates to the signface design only, not deployment approval or site compliance.

Is this a regulatory sign?

No. This product is supplied as a TM Series supplementary / side-road message sign panel. It should not be described as a regulatory sign.

What reflective sheeting is used?

This panel is supplied with Class 400T retroreflective yellow sheeting with opaque black printing. Reflective wording relates to the supplied signface material only. Check project-specific reflective sheeting requirements where applicable.

Which frames is this 600x600mm panel compatible with?

This 600x600mm panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm corflute panels, including suitable 600x600mm Double-Sided Traffic Sign Frame Type 5 arrangements. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 600x600mm corflute panels and the overall sign arrangement is suitable.

Can this panel be used in a Multi-Message Sign Frame No. 1?

Yes, where the frame configuration accepts 600x600mm corflute panels and the overall sign arrangement is suitable. Panel pairing, arrow direction, frame layout, placement and use should match the applicable TMP, TGS, side-road arrangement, site arrangement, project requirements and relevant authority requirements.

Can this panel be used with Road Work or directional arrow panels?

Yes, where specified. This panel may be paired with relevant warning, roadwork or directional panels to show that the associated condition applies on a side road. Final use should match the applicable TMP, TGS, side-road arrangement, site arrangement, project requirements and site conditions.

Can this panel be used for side road works, utility works or temporary access changes?

Yes, where specified as part of the temporary traffic management arrangement. Typical use may include side road works, utility works on side roads, roadwork sites near intersections, temporary access changes, detour routes, maintenance works and side-road closures.

Does this panel create a lawful side-road traffic arrangement by itself?

No. This panel provides supplementary side-road message or site awareness information only. It does not create a lawful side-road closure, detour, roadwork arrangement, access restriction, site compliance, TMP validity, TGS validity or approved traffic control arrangement by itself.

Does this panel replace warning signs, arrows, barriers or traffic control devices?

No. This panel does not replace the primary warning panel, roadwork panel, directional arrow panel, detour panel, Road Closed sign, barriers, cones, bollards, delineation, traffic controllers or other required temporary traffic control devices where those are required by the applicable TMP, TGS, side-road arrangement, project requirements, site conditions or relevant authority requirements.

Should placement be checked against the TMP, TGS or side-road arrangement?

Yes. Selection, placement, panel pairing, visibility, frame arrangement and use remain subject to the applicable TMP, TGS, side-road arrangement, site arrangement, project requirements, site conditions and relevant authority requirements.
