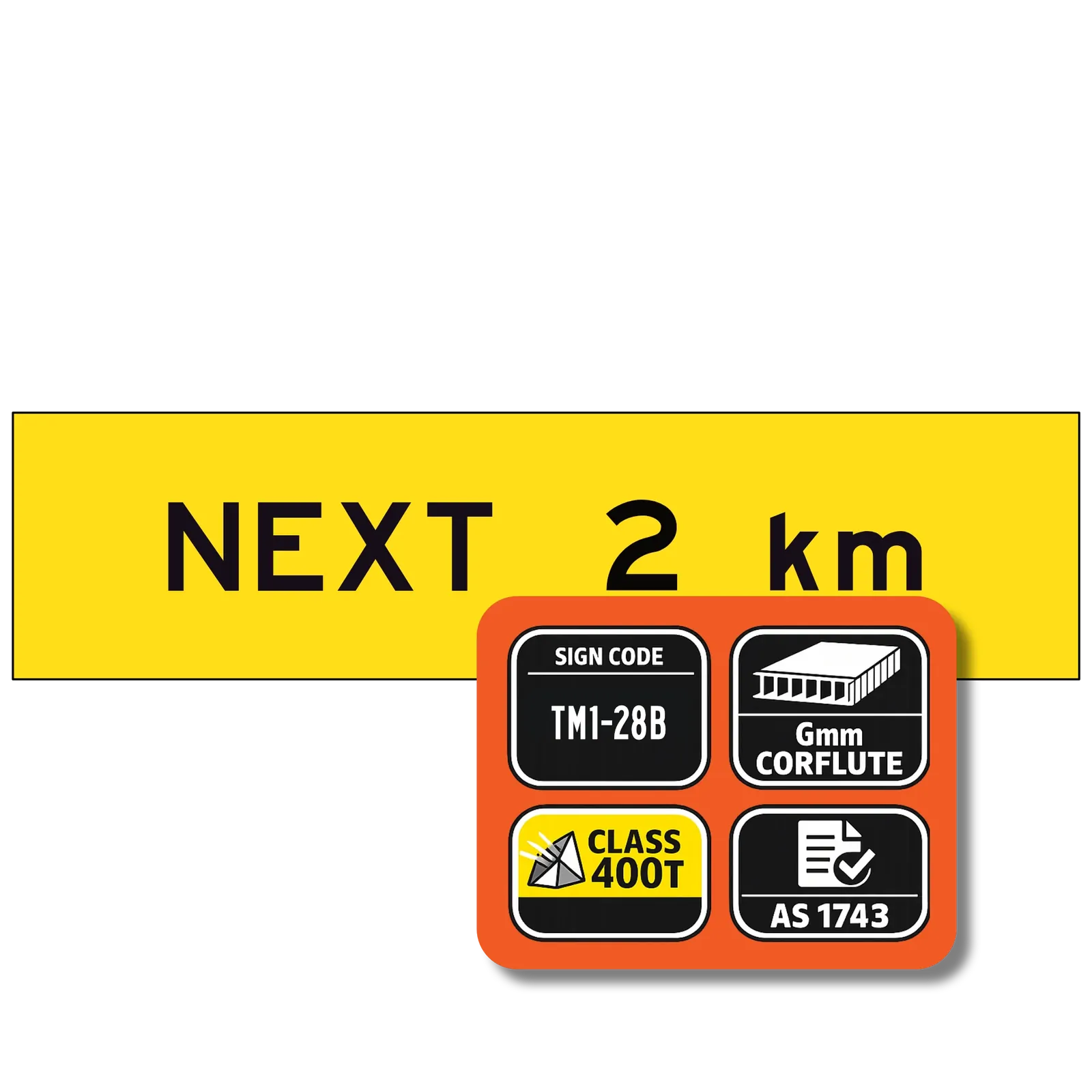

Next 2 km TM1-28B (1200x300mm) corflute sign panel displays a NEXT 2 km supplementary distance message for temporary traffic management arrangements where the associated warning condition applies over the next 2 km.

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for TM1-28B. This standard-listed supplementary / distance message TM Series temporary traffic management sign panel is supplied as a modular corflute panel for use with compatible temporary roadwork sign frame systems.

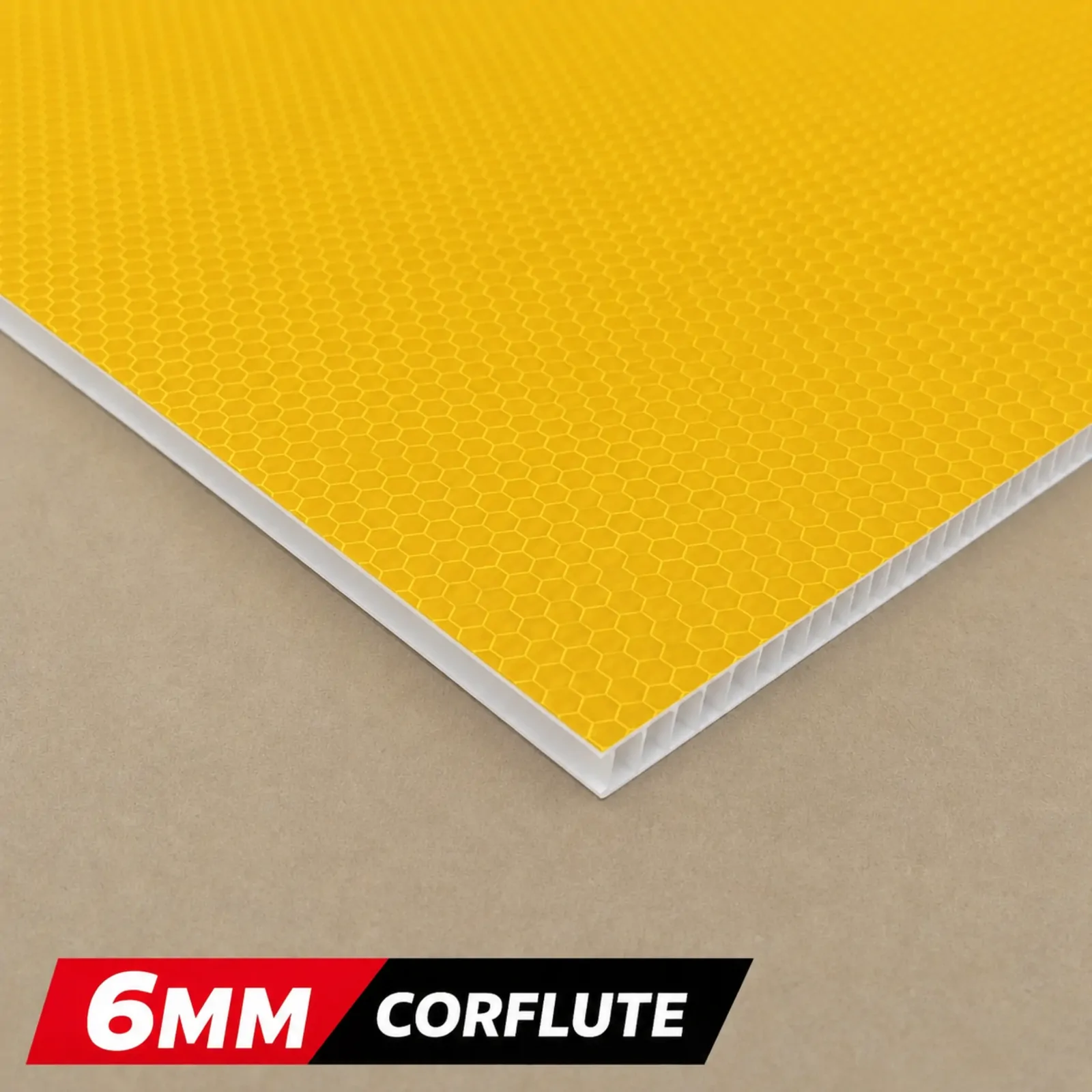

UAGS temporary traffic sign corflute panels are manufactured on 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting. The black uppercase legend and yellow retroreflective background support use in temporary traffic management setups where this supplementary distance message is specified.

This 1200x300mm corflute sign panel is designed to slide into compatible temporary roadwork sign frames, including suitable Multi-Message Sign Frame No. 1 lower panel arrangements where the frame accepts a 1200x300mm corflute panel.

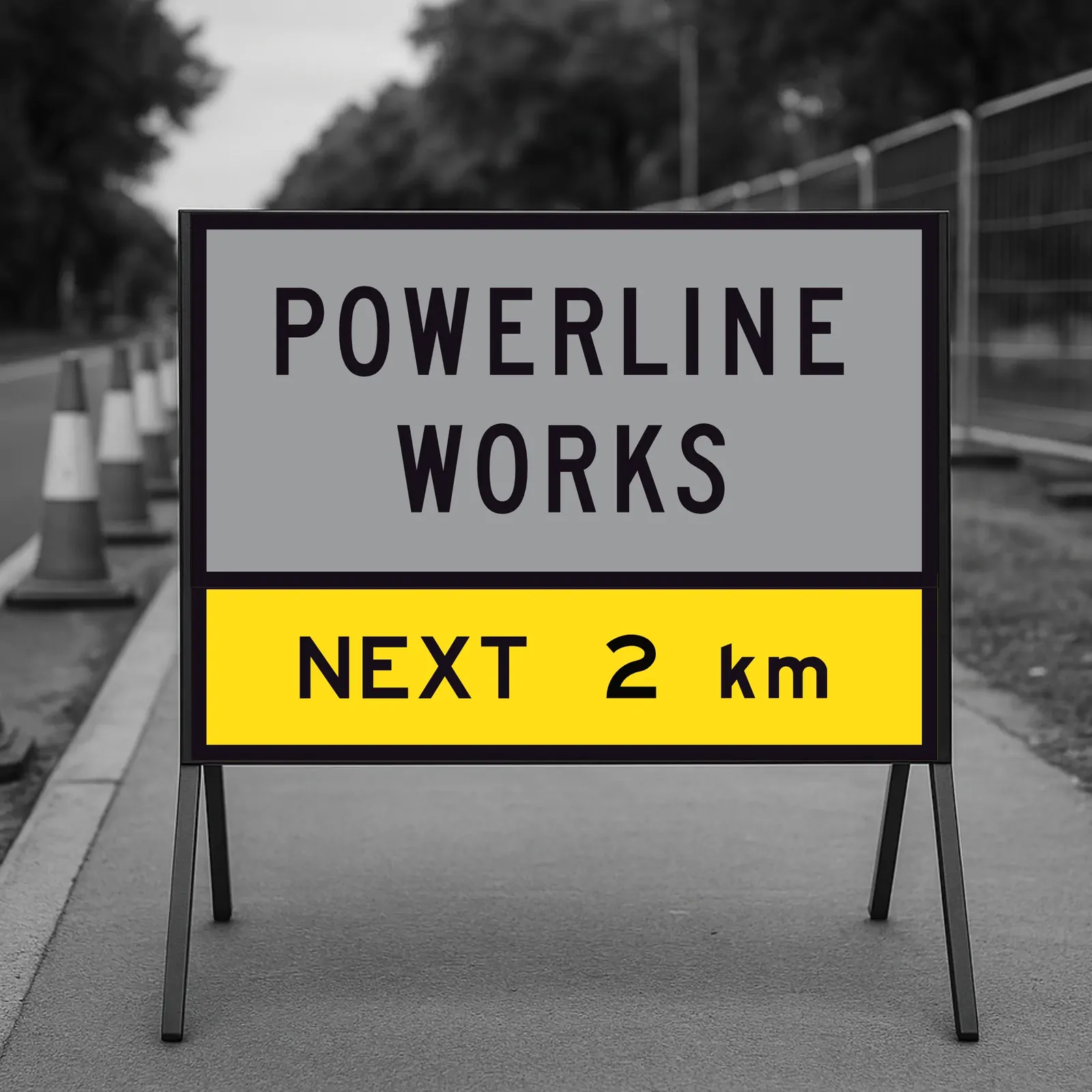

In deployment-context terms, a NEXT X km sign may be used with a compatible primary warning sign such as a Worker symbolic sign, ROAD PLANT AHEAD sign or GRADER AHEAD sign where those signs are used to warn of a frequently changing work area. This wording describes deployment context only and does not mean the panel itself creates a compliant traffic management arrangement.

This panel may be used to show that the associated warning condition applies over the next 2 km, where specified as part of a broader temporary traffic management setup. Typical use may include roadwork, frequently changing work areas, mobile or moving work activities, road plant operations, grader works, worker warning arrangements, civil works, shoulder works, maintenance works and staged works where a suitable primary warning sign is also specified.

As a supplementary distance message panel, TM1-28B should not be treated as a standalone warning sign, standalone roadwork warning sign or complete traffic control arrangement by itself. It is used with a compatible primary warning sign where a NEXT 2 km distance message is specified as part of the broader temporary traffic management arrangement.

Selection, placement, panel arrangement and use remain subject to the applicable TMP, TGS, project requirements, site traffic management arrangement, site conditions and relevant authority requirements.

Next 2 km TM1-28B Supplementary Panel FAQs

What is the Next 2 km TM1-28B panel used for?

This panel displays a NEXT 2 km supplementary distance message for temporary traffic management arrangements where the associated warning condition applies over the next 2 km.

Is this a standalone warning sign?

No. This product is a supplementary distance message panel. It should be used with a compatible primary warning sign where specified, not as a standalone warning sign or complete traffic control arrangement by itself.

Which primary warning signs may this panel be used with?

In deployment-context terms, a NEXT X km sign may be used with a Worker symbolic sign, ROAD PLANT AHEAD sign or GRADER AHEAD sign where those signs are used to warn of a frequently changing work area. The required sign pairing and arrangement should be confirmed against the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.

Is this a regulatory sign panel?

No. This product should not be described as a regulatory sign panel. It is a standard-listed supplementary / distance message TM Series temporary traffic management sign panel with the TM1-28B signface design.

What signface design does this panel follow?

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for TM1-28B. TM1-V109 and VicRoads Drawing No. 541489 are supplied as state or legacy references only and are not road authority approval claims.

What reflective sheeting is used?

This panel uses Class 400T retroreflective yellow sheeting. Reflective wording relates to the supplied signface material only. Selection and use remain subject to the applicable TMP, TGS, site conditions and project requirements.

Which frames is this panel compatible with?

This 1200x300mm corflute panel is designed to slide into compatible temporary roadwork sign frames, including suitable Multi-Message Sign Frame No. 1 lower panel arrangements where the frame accepts a 1200x300mm corflute panel. Frame slot size, panel arrangement and deployment requirements should be confirmed before use.

Does this panel create or authorise a work area warning arrangement?

No. This panel does not create, authorise or legally control a work area, mobile works operation or roadwork setup by itself. It may form part of a broader temporary traffic management arrangement where a NEXT 2 km distance message is specified by the applicable TMP, TGS, site arrangement, project requirements, site conditions or relevant authority requirements.

Can this panel be used with other signs or site controls?

Yes, where specified. This supplementary distance message panel is generally used with a compatible primary warning sign, such as Worker symbolic, Road Plant Ahead or Grader Ahead, where the applicable TMP, TGS, site arrangement, project requirements, site conditions or relevant authority requirements specify a NEXT 2 km distance message.
