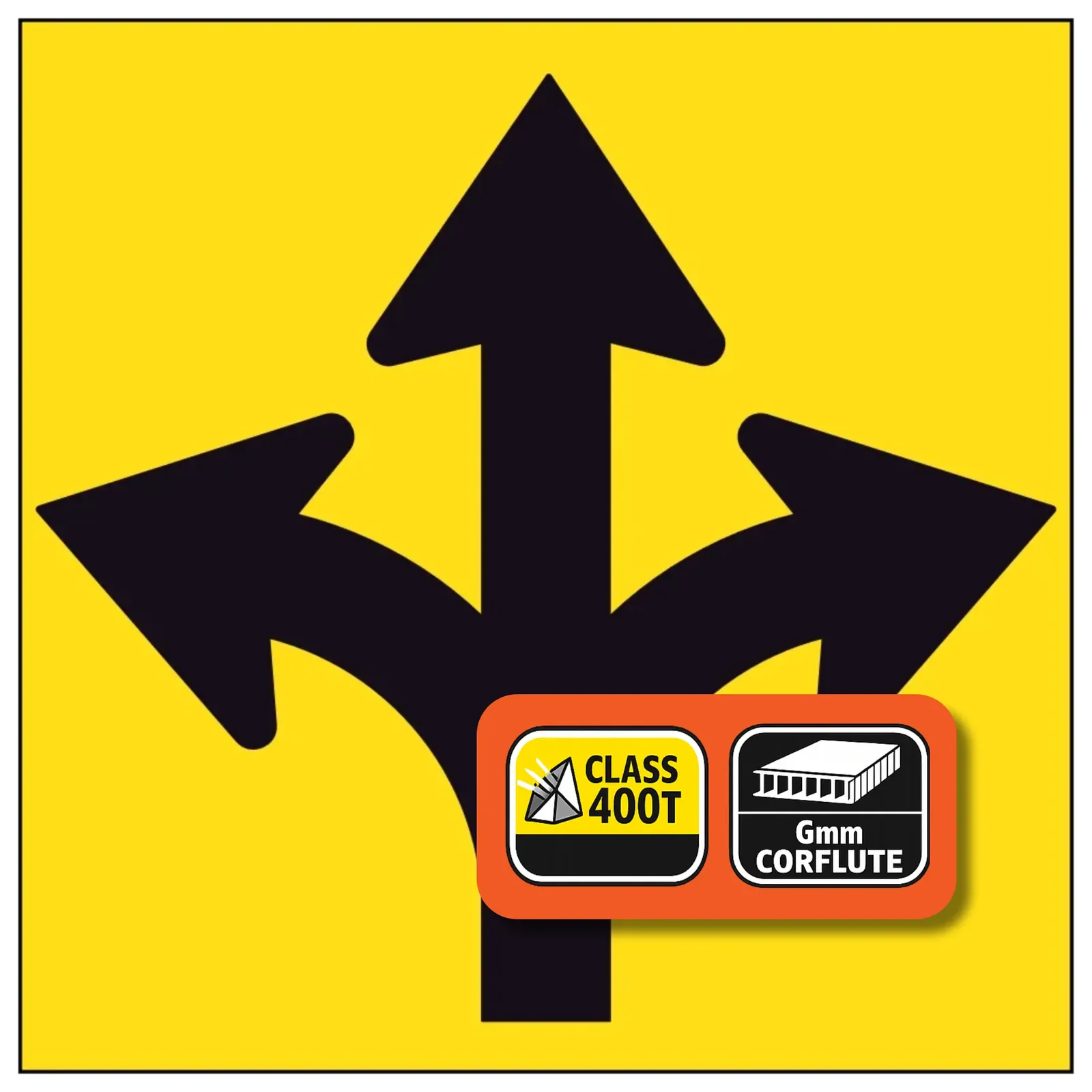

Left Straight Right Lanes Open (600x600mm) corflute sign panel displays a black multi-directional arrow symbol showing left, straight-ahead and right travel directions on a yellow retroreflective background. It is used in temporary traffic management setups where a left-straight-right lane-open symbol is specified as part of a compatible TM10 Series Lane Status sign arrangement.

This 600x600mm panel should not be confused with the smaller 300x600mm modular partial panel. It provides a larger left-straight-right lane-open symbol for compatible Lane Status sign arrangements where the 600x600mm panel size and frame layout are specified. Where a smaller modular component is required, see the Lane Open Left Straight Right 300x600mm Corflute Partial Panel.

No verified national standalone code has been supplied for this 600x600mm panel. It may be used within TM10 Series Lane Status arrangements where the full panel combination, lane arrangement and frame layout are specified. VicRoads TM10-V106 and Drawing No. 763702 are supplied as state / legacy references only and must not be treated as national codes, road authority approval claims or confirmation of site suitability.

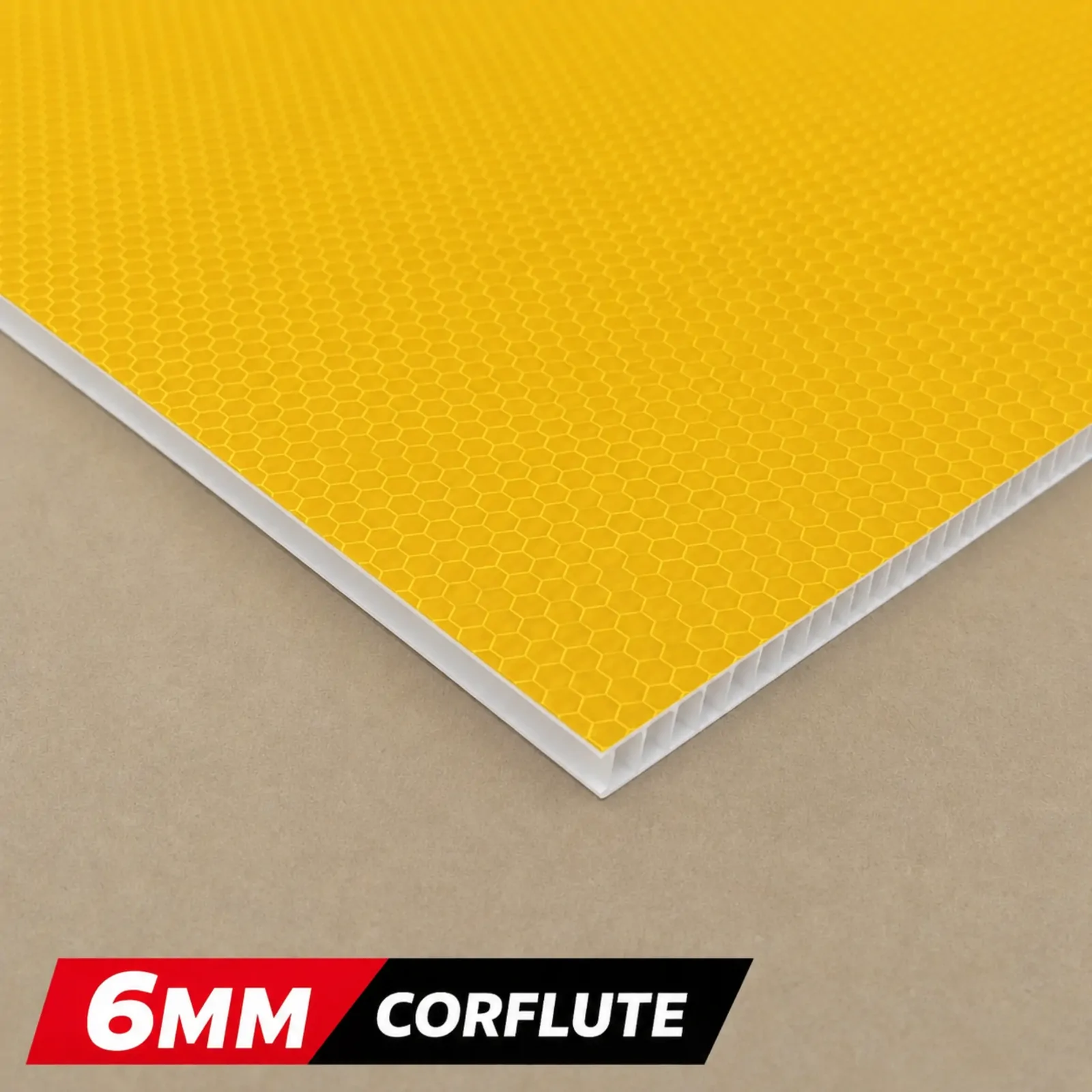

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black left, straight-ahead and right arrow symbol on the yellow retroreflective background supports clear lane status messaging where this panel is specified as part of a compatible sign arrangement.

In deployment-context terms, Lane Status signs are used to give advance warning where one or more lanes of a multilane roadway is closed or where the direction a lane leads to is altered. This panel shows one lane-open symbol with left, straight and right options and must be selected as part of a suitable complete lane status arrangement where required.

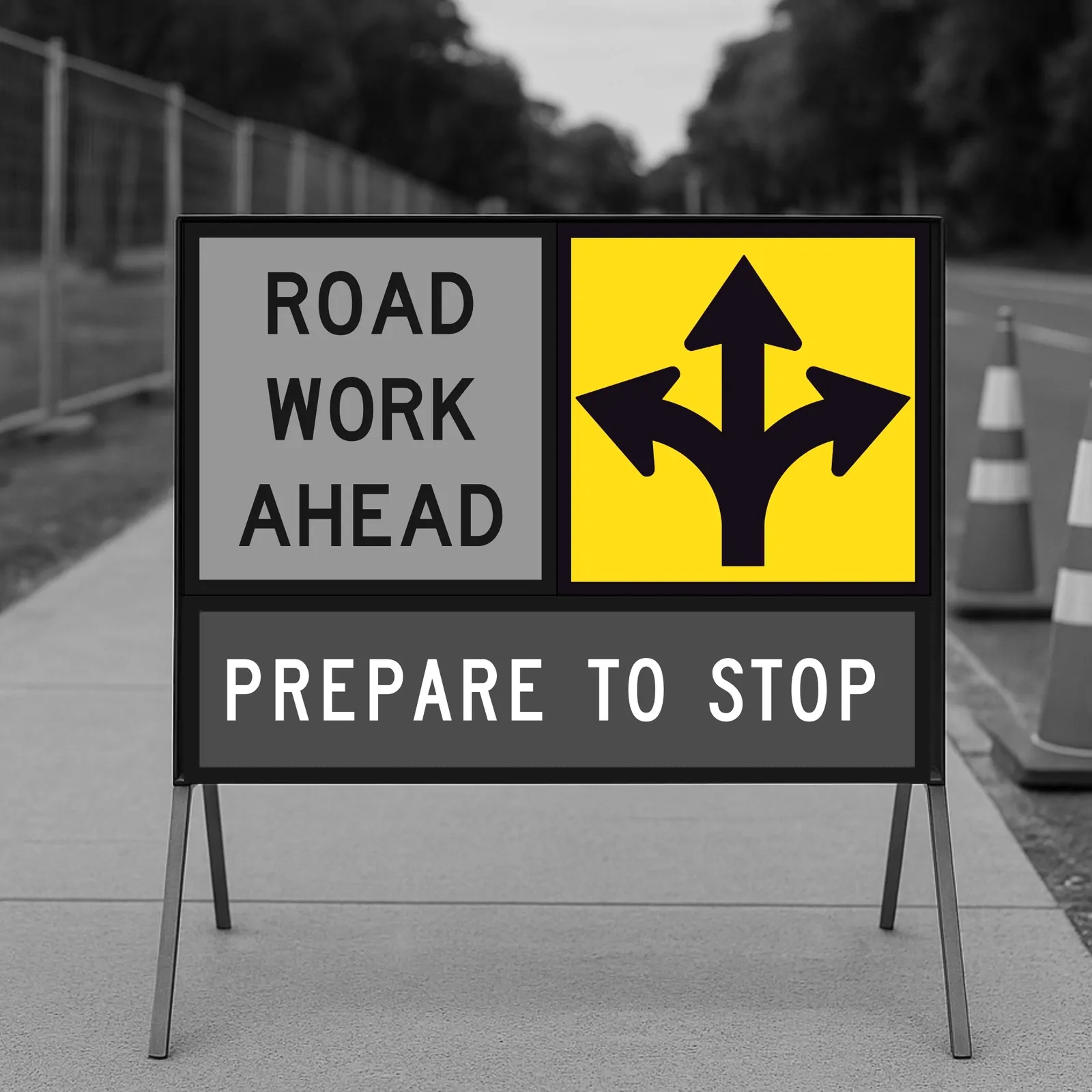

This 600x600mm corflute panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame layout, panel combination and lane status configuration are suitable.

This panel does not replace adequate signing, delineation, lane closure devices or other temporary traffic control measures where those are required. Selection, panel combination, lane count, arrow direction, placement, frame arrangement and use remain subject to the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.

Lane Open Left Straight Right 600x600mm Panel FAQs

What is the Lane Open Left Straight Right 600x600mm panel used for?

This 600x600mm panel displays a left, straight-ahead and right arrow symbol for use within a compatible Lane Status sign arrangement. It may be used where a multi-direction open lane symbol is specified as part of a TGS, TMP, roadwork site arrangement, lane diversion, lane closure arrangement, lane direction arrangement or project requirement.

Is this the same as the 300x600mm partial panel?

No. This is the larger 600x600mm panel version. The 300x600mm version is a smaller modular partial panel used where that panel size and frame layout are specified. Panel size, frame arrangement and final sign configuration should be checked before use.

Does this 600x600mm panel have its own national code?

No verified national standalone code has been supplied for this 600x600mm panel. It should not be treated as a national-code Lane Status sign by itself unless the full arrangement and code relationship have been separately verified.

What does VicRoads TM10-V106 mean?

VicRoads TM10-V106, Drawing No. 763702, is supplied as a state / legacy reference for this lane status panel. It must not be treated as a national code, road authority approval claim, national use requirement or confirmation of site suitability.

Can this panel be used by itself?

This panel should be selected as part of a suitable Lane Status sign arrangement where required. It should not be treated as creating a complete traffic control arrangement, lane closure setup or lane direction arrangement by itself.

What frame does this panel suit?

This 600x600mm panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm corflute panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 600x600mm panels and the overall lane status arrangement is suitable.

How should this panel be used with other lane status panels?

Lane Status signs are made up of arrows and T symbols displayed across the complete sign. Each arrow or T symbol represents a single lane. If multiple panels are combined, the final arrangement should be checked against the applicable TMP, TGS, lane configuration, frame layout, site conditions and authority requirements.

Does this panel create a compliant lane direction or lane closure arrangement?

No. This panel alone does not create a compliant lane direction arrangement, lane closure arrangement, TMP validity, TGS validity, road authority approval or site compliance. Correct use depends on the complete sign arrangement, panel combination, frame system, lane count, lane direction, signing, delineation, site conditions and relevant authority requirements.

Does this panel replace other signing or delineation?

No. This panel does not replace adequate signing, delineation, lane closure devices or other temporary traffic control measures where those are required by the applicable TMP, TGS, site arrangement or project requirements.
