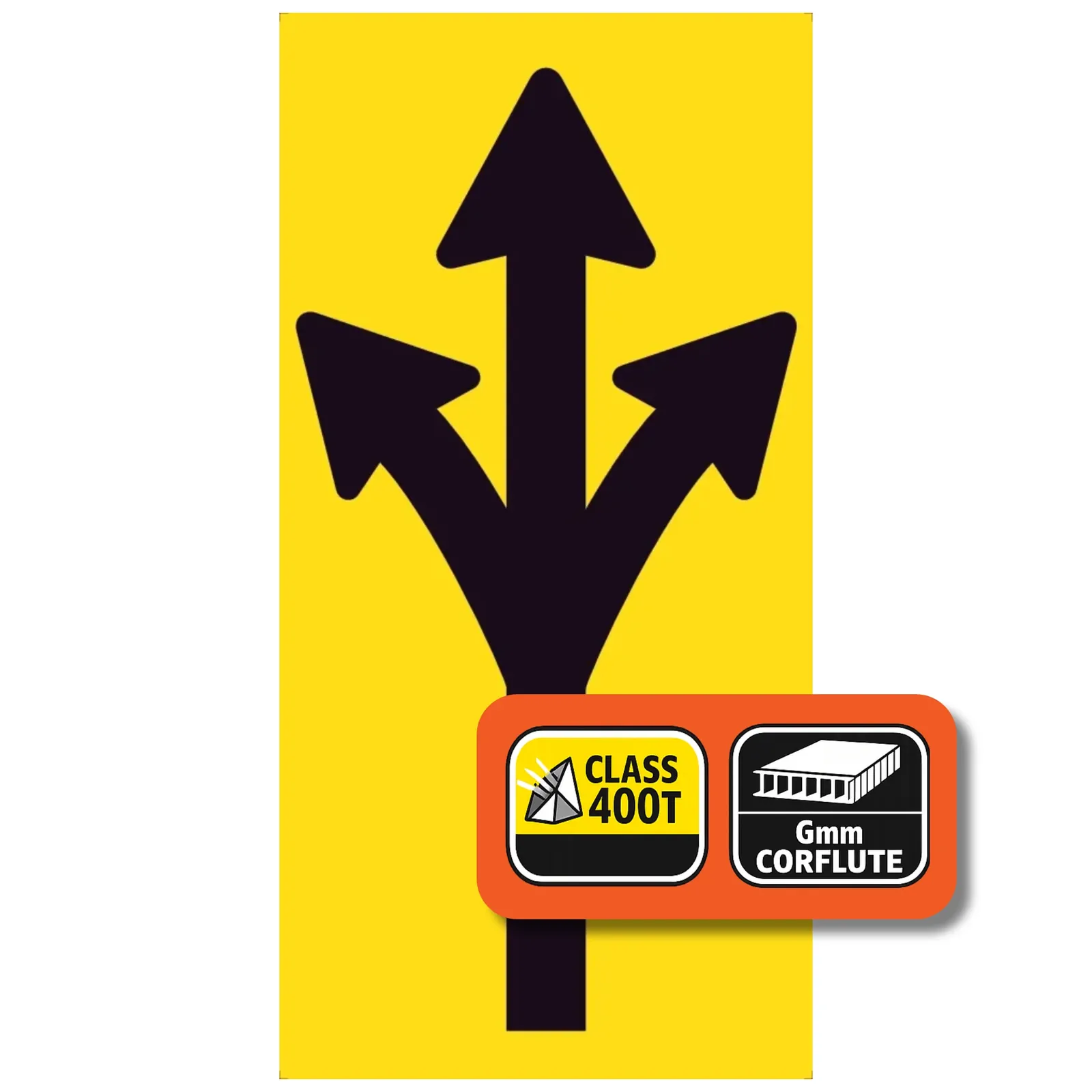

Left Straight Right Lanes Open Partial Panel (300x600mm) corflute sign panel is a modular lane status partial panel used to display a black three-direction arrow symbol showing left, straight-ahead and right travel directions within a compatible Lane Status sign arrangement. It is intended to be used with other compatible partial panels, not as a complete Lane Status sign by itself.

This is an individual 300x600mm lane status partial panel. No verified national standalone code has been supplied for this partial panel by itself. It may be used with other compatible lane status partial panels to create complete TM10 Series Lane Status sign arrangements where specified, but this individual panel should not be treated as a complete TM10 Series sign by itself. VicRoads TM10-V106 and Drawing No. 763702 are supplied as state / legacy references only.

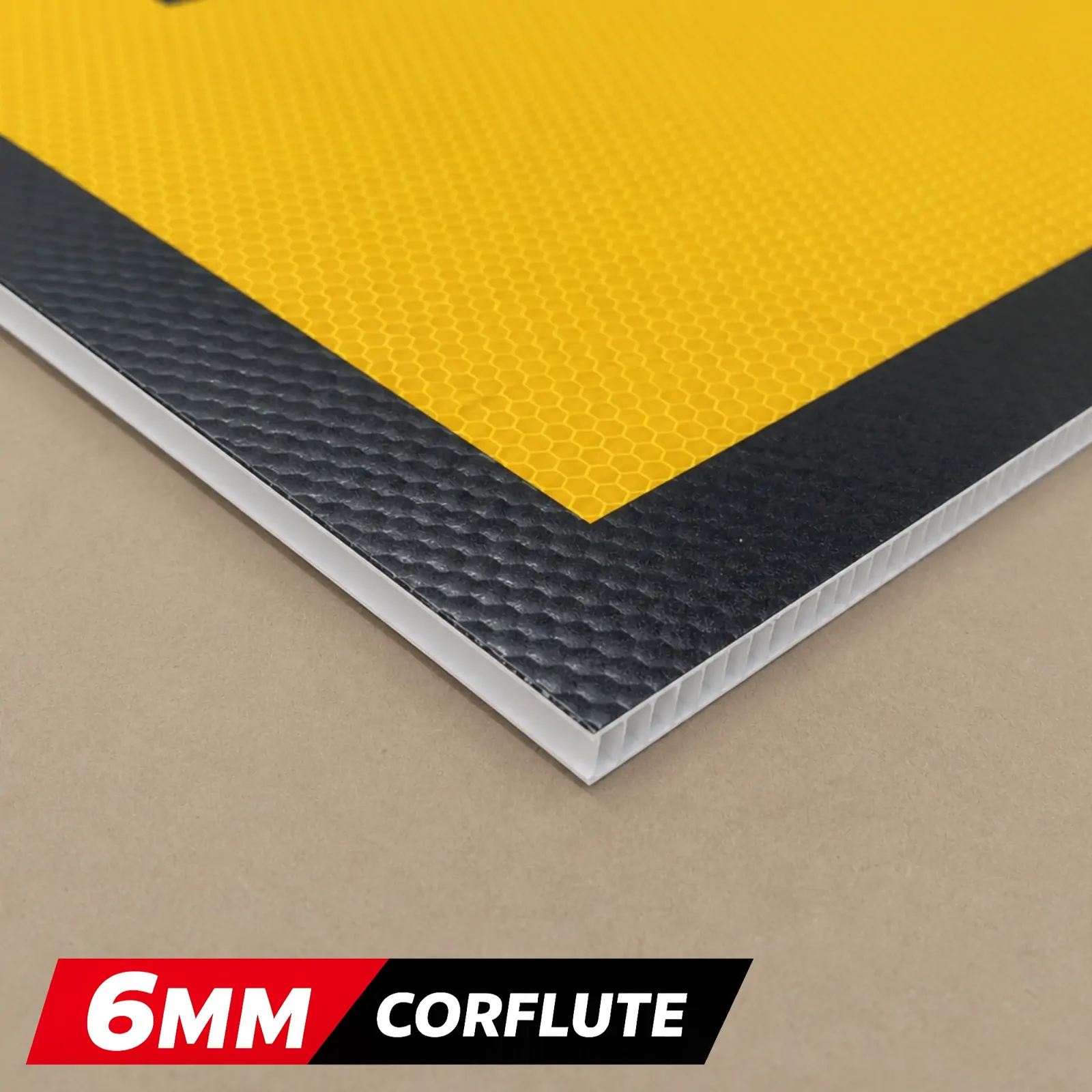

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black left, straight-ahead and right arrow symbol on the yellow retroreflective background supports clear lane status messaging where this partial panel is specified as part of a compatible sign arrangement.

In deployment-context terms, Lane Status signs are used to give advance warning where one or more lanes of a multilane roadway is closed or where the direction a lane leads to is altered. This partial panel provides one lane status symbol showing left, straight-ahead and right travel options only and must be used as part of a suitable complete lane status arrangement where required.

This partial panel may be combined with other compatible lane status partial panels to show the appropriate lane arrangement ahead. For larger frame layouts or where a larger left-straight-right lane-open panel is specified, see the Left Straight Right Lanes Open 600x600mm Corflute Partial Panel. The final combination should match the number of lanes, permitted movements, lane directions and closure conditions shown in the applicable TMP, TGS, site arrangement or project requirements.

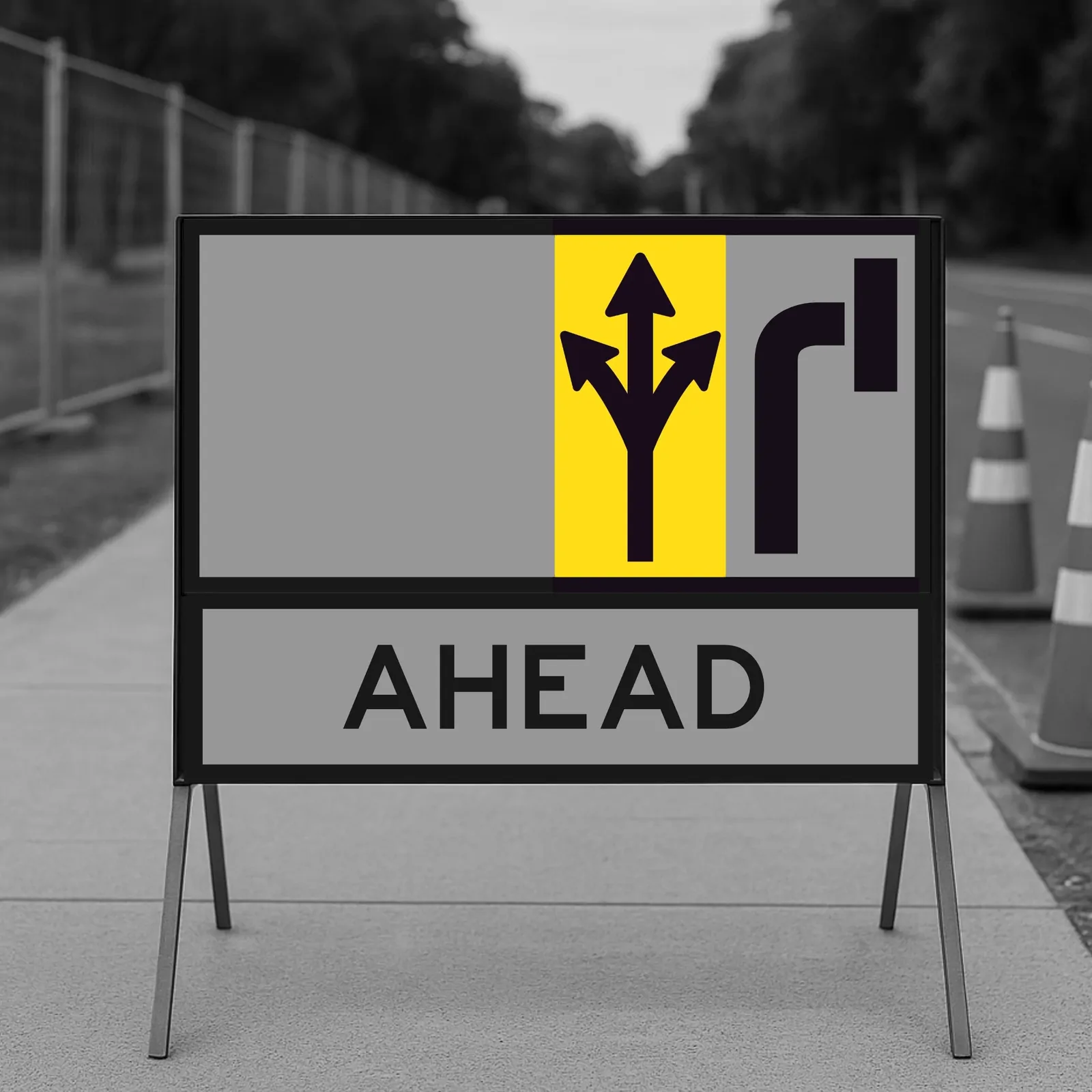

This 300x600mm corflute partial panel is compatible with suitable temporary roadwork sign frame systems that accept 300x600mm partial panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame layout, panel combination and lane status configuration are suitable.

This panel does not replace adequate signing, delineation, lane closure devices or other temporary traffic control measures where those are required. Selection, panel combination, lane count, arrow direction, placement, frame arrangement and use remain subject to the applicable TMP, TGS, project requirements, site conditions and relevant authority requirements.
