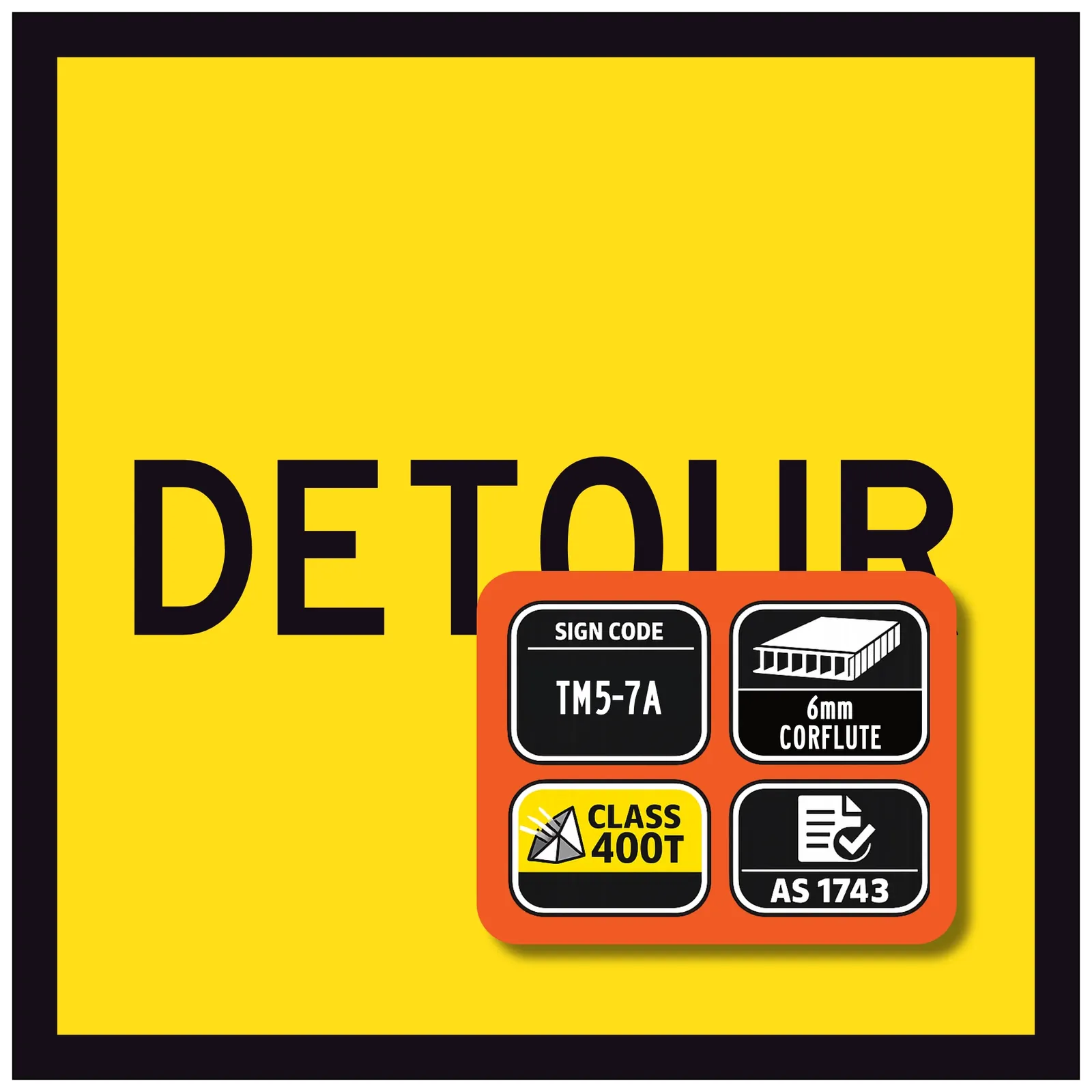

Detour TM5-7A (600x600mm) corflute sign panel displays a DETOUR message on a yellow retroreflective background. It is used in temporary traffic management setups where road users need to be directed along a temporary diversion route because the normal road, travel path, access route or turning movement is unavailable or temporarily changed.

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for the TM5-7A code. This TM Series detour / route guidance panel is supplied as a modular corflute panel for use with compatible temporary roadwork sign frame systems.

VicRoads Sign Code TM5-V101, Drawing No. 541478 is supplied as a state / legacy identification reference only. It must not be treated as a national code, road authority approval claim, mandatory use requirement or confirmation of site suitability.

Where specified, the TM5-7A Detour panel should be used in conjunction with a suitable TM5-6A detour marker / arrow panel to help guide road users along the intended detour route. The required panel pairing and arrangement should match the applicable TMP, TGS, detour layout, site arrangement and relevant authority requirements.

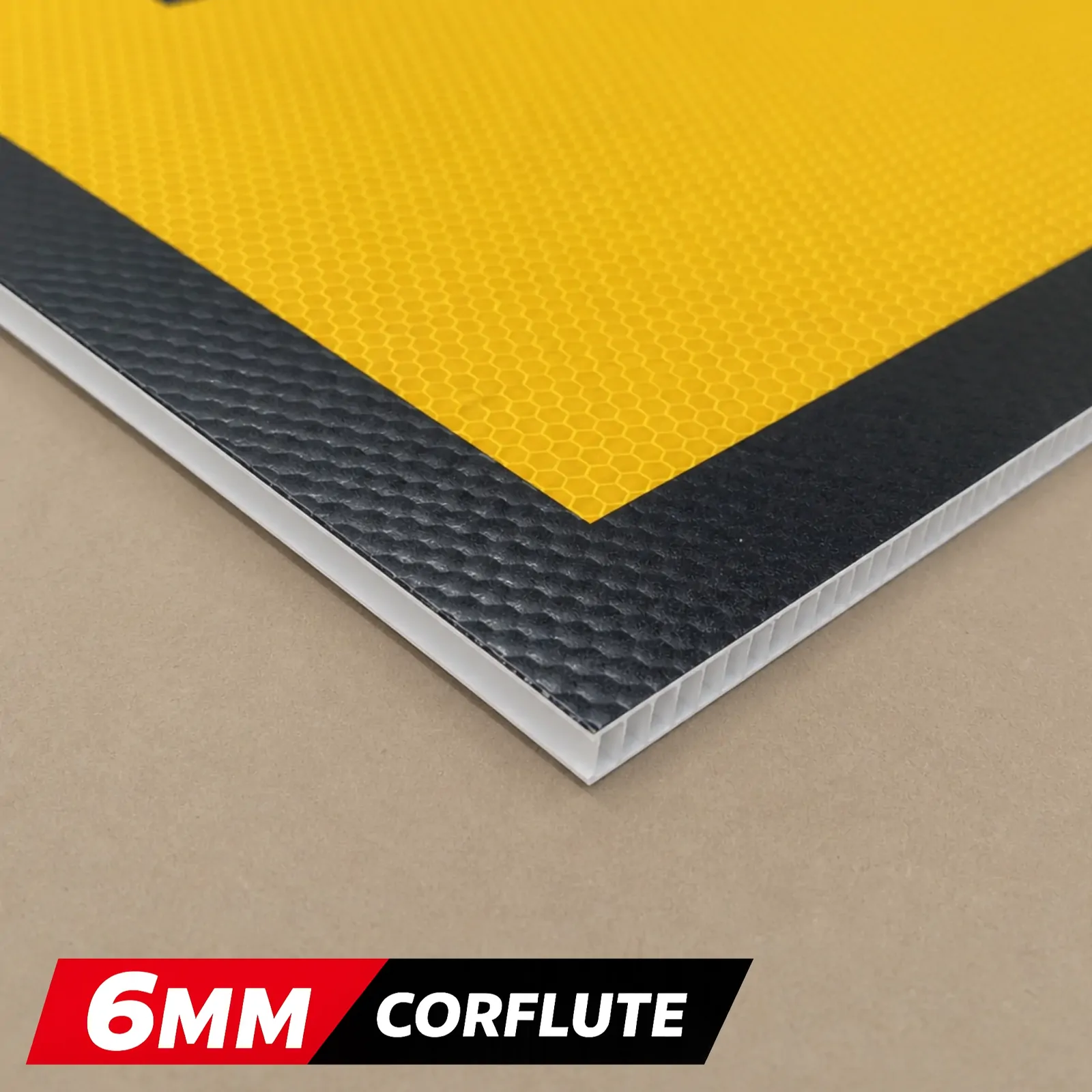

UAGS temporary traffic sign corflute panels are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black uppercase legend, black border and yellow retroreflective background support clear detour route messaging where this panel is specified.

This 600x600mm corflute sign panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm corflute panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 600x600mm corflute panels and the overall detour sign arrangement is suitable.

In practical use, this panel may be used during road closures, resurfacing works, bridge works, utility maintenance, civil works, event traffic management, traffic switches, temporary access changes and other temporary route diversions where a detour message is specified as part of the site arrangement.

Where specified for the site arrangement, related panels may include Arrow (SYM) TM5-6A detour marker panels, Detour Ahead, End Detour, Road Closed, Road Closed Ahead, Changed Traffic Conditions, Road Work Ahead, Prepare To Stop, directional arrow panels, On Side Road, Local Traffic Only or suitable supplementary context panels.

This panel provides detour route guidance or site awareness information only. It does not create a lawful detour, road closure, access restriction, traffic diversion, site compliance, TMP validity, TGS validity or approved traffic control arrangement by itself. Selection, placement, panel pairing, visibility, frame arrangement and use remain subject to the applicable TMP, TGS, detour arrangement, site arrangement, project requirements, site conditions and relevant authority requirements.

Detour TM5-7A Sign Panel FAQs

What is the Detour TM5-7A panel used for?

The Detour TM5-7A panel is used to indicate a temporary detour route where road users are required to follow a diversion because the normal route, road section, turning movement or travel path is unavailable or temporarily changed as part of a broader temporary traffic management arrangement.

Is this a standard-listed TM Series sign panel?

Yes. This panel is supplied with the verified national code TM5-7A and is classified as a TM Series temporary traffic management detour / route guidance sign panel. Site use still depends on the applicable TMP, TGS, detour arrangement, site conditions and relevant authority requirements.

What does the VicRoads TM5-V101 reference mean?

VicRoads Sign Code TM5-V101, Drawing No. 541478 is supplied as a state / legacy identification reference only. It must not be treated as a national code, road authority approval claim, mandatory use requirement or confirmation of site suitability.

What signface design does this panel follow?

The signface layout, legend and colours follow the applicable AS 1743:2023 signface design for the TM5-7A code. This wording relates to the signface design only, not deployment approval or site compliance.

Should this panel be used with a TM5-6A detour marker panel?

Where specified, the TM5-7A Detour panel should be used in conjunction with a suitable TM5-6A detour marker / arrow panel to help guide road users along the intended detour route. The required panel pairing and arrangement should match the applicable TMP, TGS, detour layout, site arrangement and relevant authority requirements.

Is this a regulatory sign?

No. This product is supplied as a TM Series detour / route guidance sign panel. It should not be described as a regulatory sign.

What reflective sheeting is used?

This panel is supplied with Class 400T retroreflective yellow sheeting with opaque black printing. Reflective wording relates to the supplied signface material only. Check project-specific reflective sheeting requirements where applicable.

Which frames is this 600x600mm panel compatible with?

This 600x600mm panel is compatible with suitable temporary roadwork sign frame systems that accept 600x600mm corflute panels. It may also be used in compatible Multi-Message Sign Frame No. 1 arrangements where the frame configuration accepts 600x600mm corflute panels and the overall detour sign arrangement is suitable.

Can this panel be used in a Multi-Message Sign Frame No. 1?

Yes, where the frame configuration accepts 600x600mm corflute panels and the overall detour sign arrangement is suitable. Panel pairing, placement and use should match the applicable TMP, TGS, detour arrangement, site arrangement, project requirements and relevant authority requirements.

Can this panel be used with Detour Ahead, Road Closed or End Detour signs?

Yes, where specified. Related panels may include Arrow (SYM) TM5-6A detour marker panels, Detour Ahead, End Detour, Road Closed, Road Closed Ahead, Changed Traffic Conditions, Road Work Ahead, Prepare To Stop, directional arrow panels, On Side Road, Local Traffic Only or suitable supplementary context panels. Final use should match the applicable TMP, TGS, detour arrangement, site arrangement, project requirements and site conditions.

Does this panel create a lawful detour by itself?

No. This panel provides detour route guidance or site awareness information only. It does not create a lawful detour, road closure, access restriction, traffic diversion, site compliance, TMP validity, TGS validity or approved traffic control arrangement by itself.

Does this panel replace barriers, detour markers, directional arrows or traffic control devices?

No. This panel does not replace detour marker panels, directional arrows, Road Closed signs, barriers, cones, bollards, delineation, traffic controllers, access controls or other required temporary traffic control devices where those are required by the applicable TMP, TGS, detour arrangement, project requirements, site conditions or relevant authority requirements.

Should placement be checked against the TMP, TGS or detour arrangement?

Yes. Selection, placement, panel pairing, visibility, frame arrangement and use remain subject to the applicable TMP, TGS, detour arrangement, site arrangement, project requirements, site conditions and relevant authority requirements.
