Vertical Chevron Bollard Sleeve (300x1200mm) corflute panel is a temporary traffic control chevron delineator designed to slide over a compatible T-top bollard stem. It turns a standard orange T-top plastic bollard into a taller vertical chevron marker for use in temporary traffic management setups, lane shifts, tapers, lateral shifts, worksite edges and delineated travel paths.

This 300x1200mm 3-chevron bollard sleeve is supplied as a derived temporary vertical chevron marker product. It is related to the national T5-7 temporary vertical chevron marker style, but no verified national code has been supplied for this exact 3-chevron corflute sleeve format. The TfNSW T5-7 and South Australia DIT T4-SA101 references are similar or related reference points only and must not be treated as codes, approval claims or mandatory use requirements for this exact UAGS product.

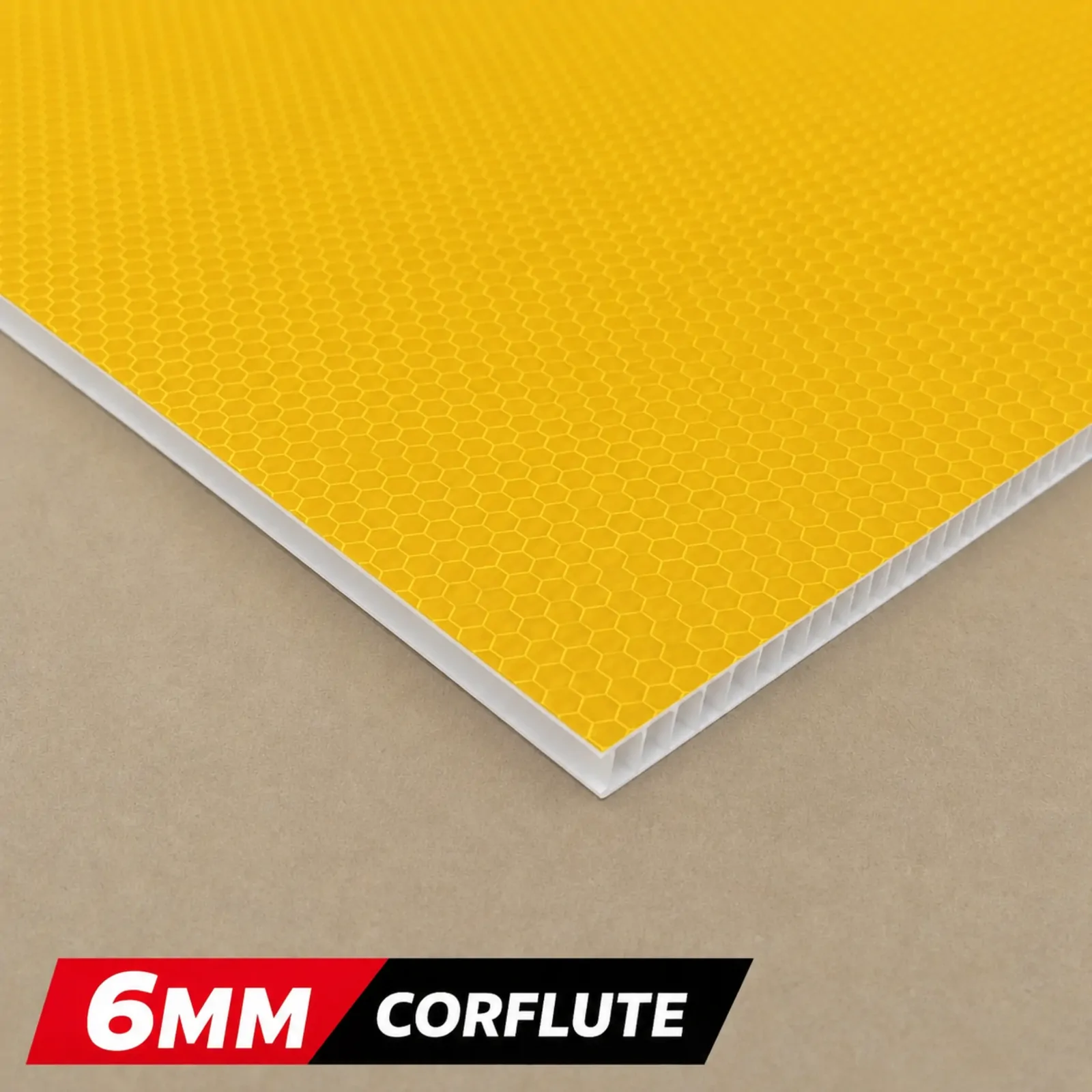

UAGS temporary traffic control chevron sleeves are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The yellow reflective face and three black chevrons provide strong visual definition through temporary lane shifts, tapers and delineated worksite paths where a bollard-mounted chevron marker is specified or accepted by the site arrangement.

Rather than requiring a dedicated heavy rubber base for the panel itself, this chevron sleeve is engineered with pre-cut holes near the top and bottom. It is designed to slip directly over compatible standard T-top plastic bollards, using the existing suitable bollard stem and base setup to create a prominent vertical chevron marker.

The chevron sleeve can be flipped or rotated so the chevrons point left or right, depending on the required travel path guidance, taper direction or site layout. Compatibility depends on the bollard stem dimensions, top shape, hole spacing and selected site setup, so fitment should be checked against the bollard being used before ordering or deployment.

In deployment-context terms, a vertical chevron marker can help define a temporary travel path through a lane shift, lateral shift, taper, worksite edge or changed traffic alignment. This product provides visual delineation only and does not replace required signs, barriers, bollards, cones, traffic control devices, approved layouts or physical controls where those are required.

Selection, placement, orientation, spacing and use remain subject to the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements.

For a complete bollard setup, pair this sleeve with a compatible T-top bollard stem and suitable weighted bollard base. Confirm the bollard stem profile, top shape and hole alignment before use.

Vertical Chevron Marker 3 Chevron Bollard Sleeve FAQs

What is the 300x1200mm Vertical Chevron Marker used for?

The 300x1200mm Vertical Chevron Marker is used as a temporary traffic control chevron delineator. It is designed to slide over a compatible T-top bollard stem to provide added visual definition through lane shifts, lateral shifts, tapers, worksite edges, access control areas and delineated travel paths.

Is this the same as T5-7?

No. T5-7 is a related national reference for a temporary vertical chevron marker format with two chevrons. This UAGS product is a 300x1200mm 3-chevron corflute bollard sleeve and must not be described as a T5-7 product unless that exact 3-chevron sleeve format is separately verified.

Does this product have a verified national code?

No verified national code has been supplied for this exact 300x1200mm 3-chevron bollard sleeve version. Similar or related references such as TfNSW T5-7 and South Australia DIT T4-SA101 are supplied as reference points only and must not be treated as codes, approval claims or mandatory use requirements for this exact product.

What reflective sheeting is used?

This sleeve is manufactured using Class 400T retroreflective yellow sheeting with opaque black printing.

How does it fit onto a T-top bollard?

The sleeve has pre-cut holes near the top and bottom. It is designed to slip over a compatible T-top bollard stem so the bollard supports the vertical chevron panel.

Does it need a dedicated heavy rubber base?

No dedicated heavy rubber base is required for the sleeve panel itself. It uses the existing compatible T-top bollard and base setup. The bollard and base still need to be suitable for the site arrangement and the sleeve being fitted.

Is it compatible with all T-top bollards?

No. Compatibility depends on the T-top bollard stem dimensions, top shape, hole spacing and selected setup. Check the bollard profile and fit before use.

Can the chevron direction be changed?

Yes. The sleeve can be flipped or rotated so the chevrons point left or right, depending on the required travel path guidance, taper direction or site layout.

Where is this product typically used?

It is typically used in temporary traffic control, roadworks, civil works, construction zones, lane shifts, merge tapers, lateral shifts, event traffic management, worksite delineation, access control areas and temporary pedestrian or vehicle separation layouts where a bollard-mounted chevron marker is specified or accepted by the site arrangement.

Does this replace cones, bollards, signs or barriers?

No. This product provides visual delineation only. It does not replace required signs, barriers, bollards, cones, traffic control devices, approved layouts or physical controls where those are required.

Should placement and spacing be checked against the TMP or TGS?

Yes. Selection, placement, orientation, spacing and use should be checked against the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements.
