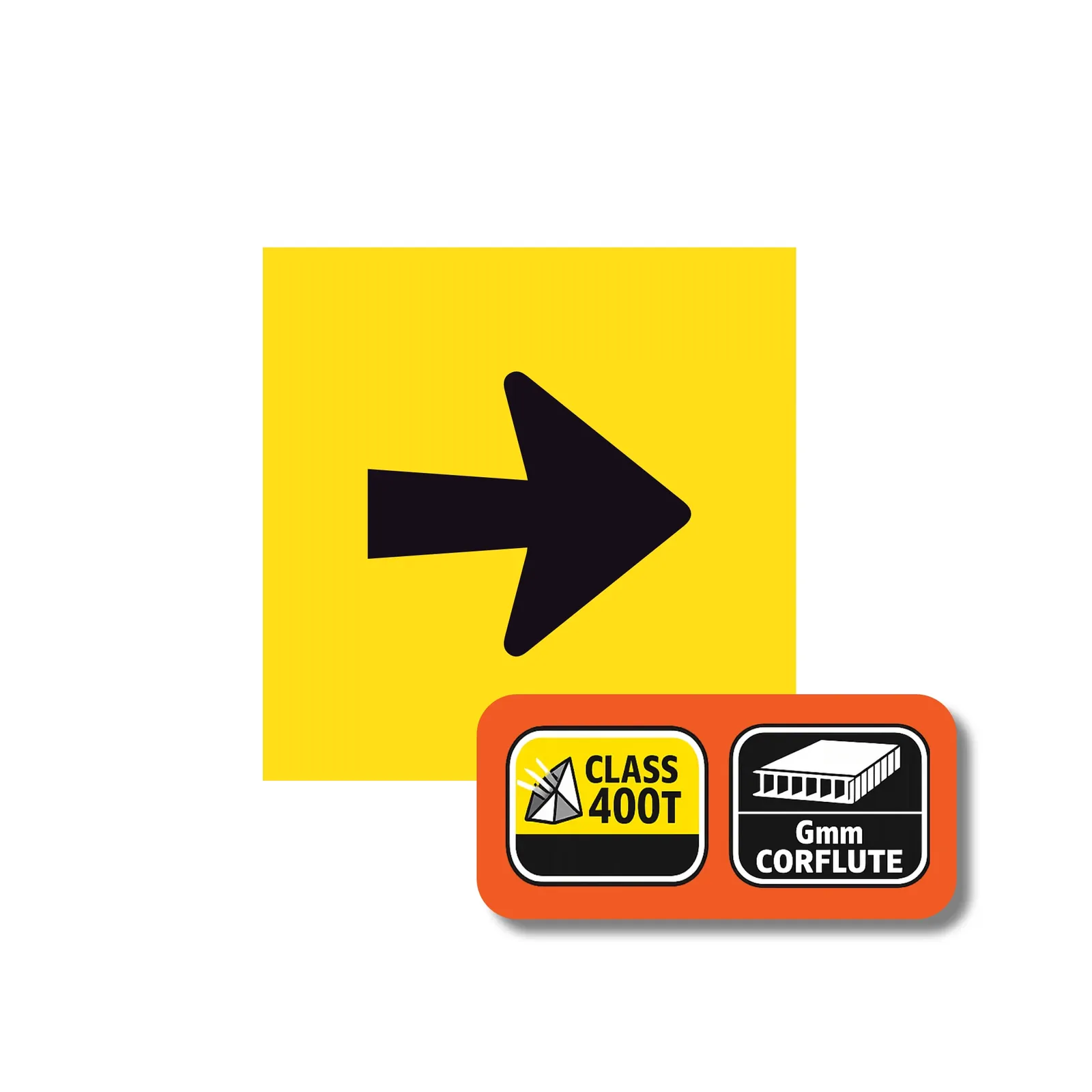

Arrow (SYM) CF33AS (300x300mm) corflute overlay insert is a directional insert panel used to modify the indicated direction on compatible temporary signage without replacing the entire sign panel. It is intended for practical field adjustment of directional signs where an arrow overlay is specified or accepted by the site arrangement.

This overlay insert is identified by UAGS Sign Code CF33AS. No national sign code or state code has been supplied for this 300x300mm arrow overlay insert. CF33AS should be treated as a UAGS product/sign code only and not as a road authority code, approval claim or national sign reference.

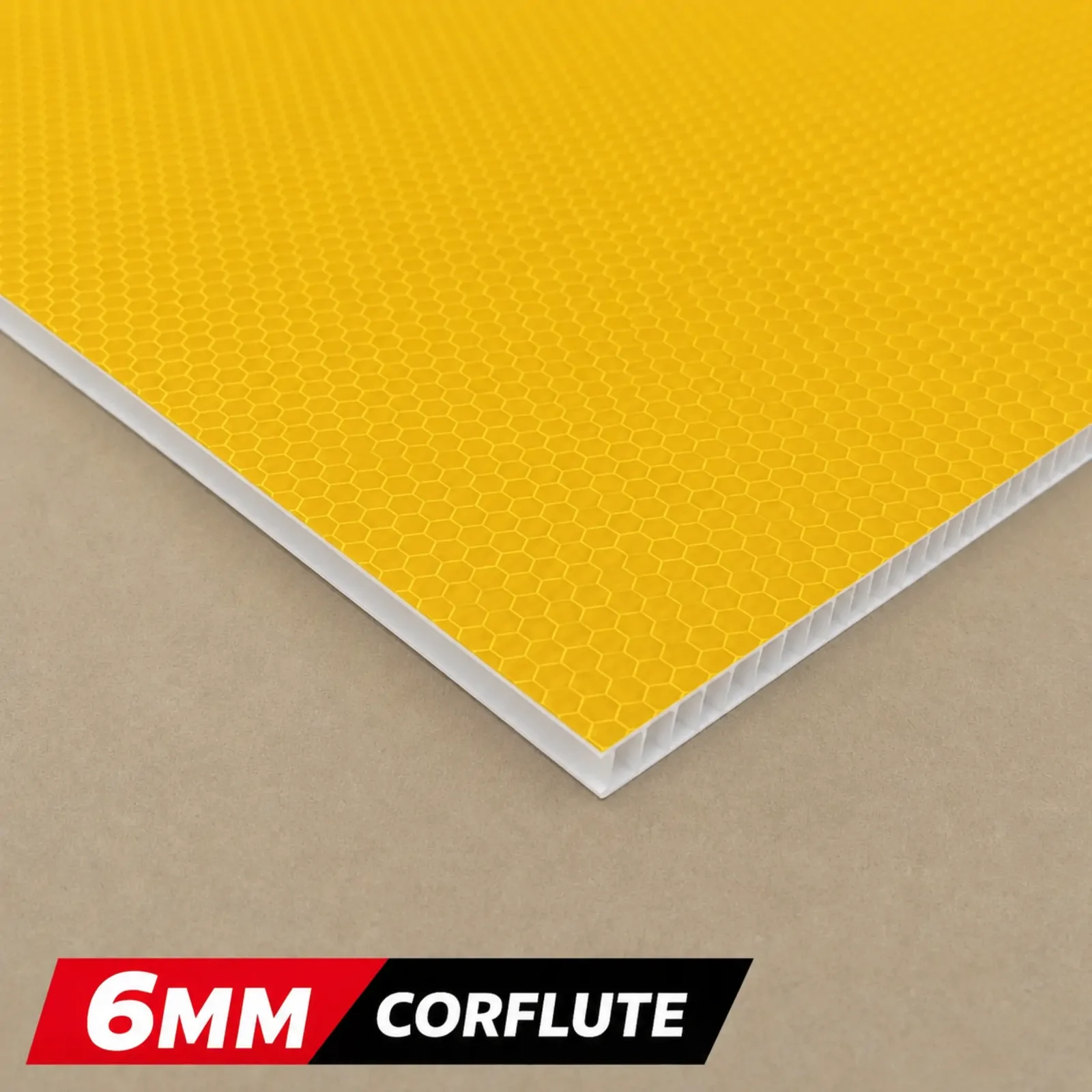

UAGS corflute overlay inserts are manufactured from 6mm UV stabilised corflute using Class 400T retroreflective yellow sheeting with opaque black printing. The black arrow symbol on a yellow retroreflective background supports clear directional display where this overlay insert is specified or accepted for the sign arrangement.

This 300x300mm arrow overlay insert is designed to help field crews adapt compatible temporary signage without replacing the entire sign panel. It may be used with compatible detour, pedestrian direction or temporary route guidance panels where a directional arrow needs to be updated, reversed or adjusted to suit the site layout.

The insert should only be used with compatible sign panels, frames or overlay positions where a 300x300mm overlay is suitable. Final fitment, orientation and use should be checked against the sign panel, frame arrangement, site layout and project requirements before deployment.

This product provides a directional overlay function only. It does not create a compliant sign arrangement by itself and does not replace correct sign selection, an approved TMP, TGS, traffic management layout or any required site-specific controls.

Selection, placement, orientation, overlay use and final sign arrangement remain subject to the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements.

It may be used alongside compatible directional sign panels, pedestrian direction panels, detour panels, temporary route guidance panels and other 300x300mm overlay inserts where the selected sign arrangement supports that use.

Arrow (SYM) CF33AS Overlay Insert FAQs

What is the Arrow (SYM) CF33AS overlay insert used for?

The Arrow (SYM) CF33AS overlay insert is used to modify the indicated direction on compatible temporary signage. It may be used with compatible detour, pedestrian direction or temporary route guidance panels where a directional arrow overlay is specified or accepted by the site arrangement.

Does this overlay insert have a national sign code?

No. No national sign code has been supplied for this 300x300mm arrow overlay insert.

What does CF33AS mean?

CF33AS is the UAGS product/sign code for this overlay insert. It must not be treated as a national sign code, state code, road authority code, approval claim or AS 1743 sign reference.

What reflective sheeting is used?

This overlay insert is manufactured using Class 400T retroreflective yellow sheeting with opaque black printing.

What signs can this overlay be used with?

It should only be used with compatible sign panels, frames or overlay positions where a 300x300mm insert is suitable. Compatibility should be checked against the sign panel, frame arrangement, overlay position and site requirements before use.

Can it be used to reverse or modify a sign direction?

Yes. The overlay may be used to update, reverse or modify the indicated direction on compatible temporary signage, provided the final sign arrangement is suitable for the site layout and project requirements.

Does the overlay create a compliant sign arrangement by itself?

No. This overlay insert provides a directional overlay function only. It does not create a compliant sign arrangement by itself and does not replace correct sign selection, an approved TMP, TGS, traffic management layout or required site-specific controls.

Is this a regulatory sign?

No. This product is a directional overlay insert / temporary traffic control corflute overlay panel. It should not be described as a regulatory sign.

Should the final sign arrangement be checked against the TMP or TGS?

Yes. Selection, placement, orientation, overlay use and the final sign arrangement should be checked against the applicable TMP, TGS, site arrangement, project requirements, site conditions and relevant authority requirements.
