(FD24MINI)

3-Year Warranty

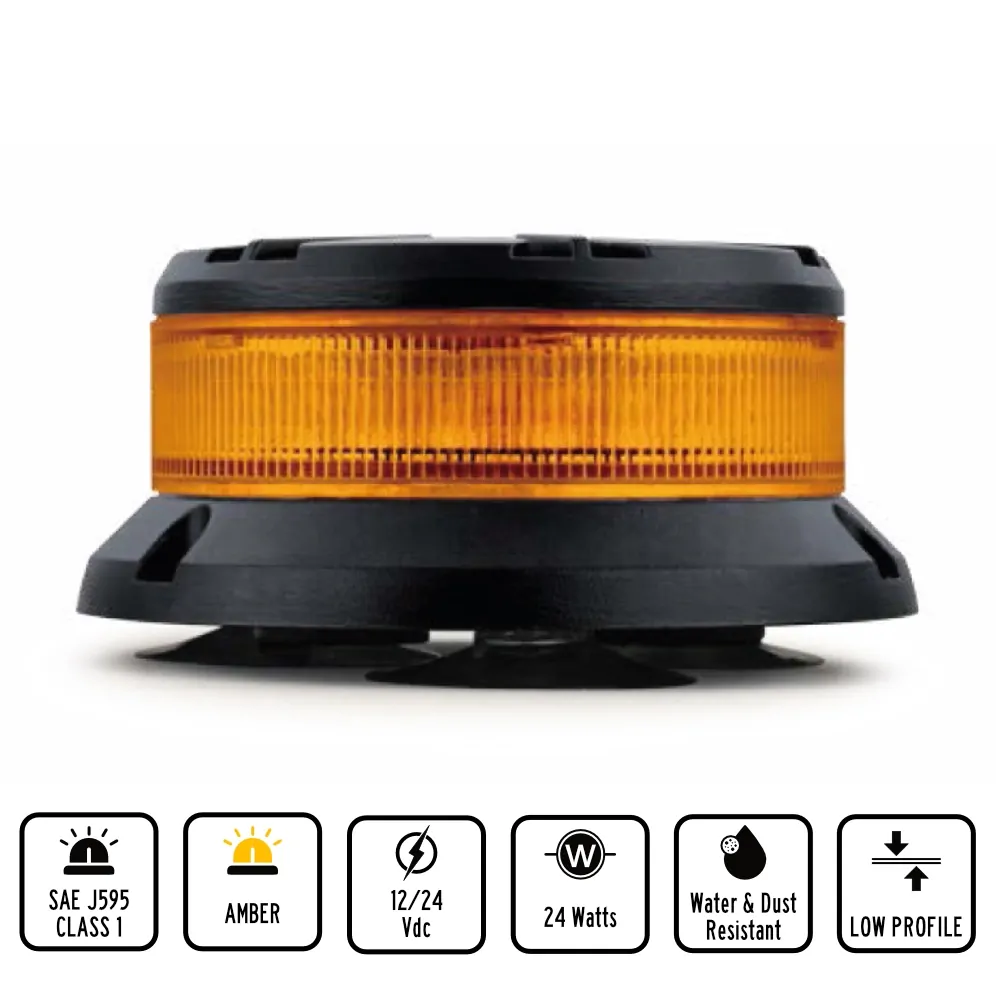

The 24W Amber Compact LED Warning Beacon comes with a 3-year warranty, ensuring peace of mind for your investment. This warranty covers defects in materials and workmanship under normal use. If any issues arise, contact our customer service team at UAG Services for prompt assistance. Proof of purchase is required for warranty claims. Note that the warranty does not cover damage due to misuse, improper installation, or external factors such as accidents or natural disasters.

• High-Intensity Illumination: 24W output with 24 x 1W LEDs for bright, 360-degree visibility, perfect for day or night use.
• Versatile Flash Patterns: 8 customizable patterns, including rotating and strobe, with easy switching via cigarette plug.
• Durable Construction: Aluminium alloy housing and PMMA lens with 92% transmittance for long-lasting performance.
• Compact and Low-Profile: 110mm diameter and 47.5mm height, ideal for tight spaces or height-restricted applications.
• Flexible Mounting Options: Magnetic or fixed mount for easy installation on vehicles, machinery, or equipment.
• Certified for Safety: Meets SAE J845 and ECE R65 Class 1 standards for professional compliance.
• Weatherproof Design: IP68 rating ensures resistance to dust, water, and extreme temperatures (-30°C to +70°C).
• Energy Efficient: Low power draw for reliable, everyday use without draining vehicle systems.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Light Characteristics

• LED Power: 24W (24 x 1W LEDs)
• LED Lifespan: 100,000 hours
• Lens: Reflex PMMA with 92% transmittance
• Flash Settings: 1-4Hz (8 patterns, including rotating and strobe)
• Light Output: 360-degree coverage

Electrical Characteristics

• Voltage: DC 10-33V
• Max Power: 24W
• Current Draw: Low power consumption for efficient operation
• Wiring: 3-core (18AWG x 3C, 3m length) with A13-163 cigarette lighter plug for on/off and pattern change

Physical Characteristics

• Color: Amber
• Materials: Aluminium alloy housing and top hat, PMMA lens
• Dimensions: 110mm (diameter) x 47.5mm (height)
• Mounting: Magnetic or fixed (bolt-down) with foam gasket
• Waterproof Rating: IP68
• Operating Temperature: -30°C to +70°C
• Weight: Lightweight design for easy handling

Certifications

• SAE J845 Class 1
• ECE R65 TA1 00 0064
• ECE R65 TB1 00 0065

Applications

• Suitable for utes, trucks, plant machinery, equipment, traffic control, pilot vehicles, and OSOM vehicles.

SKU	FD24MINI
Barcode #	2020124227938
Brand	911 Signal
Shipping Weight	0.6000kg
Shipping Width	0.120m
Shipping Height	0.100m
Shipping Length	0.120m
Shipping Cubic	0.001440000m3
Unit Of Measure	ea
