24W Amber Compact Square LED Warning Beacon
More infoQuick Description
High-performance 24W amber LED beacon with a compact square design, delivering bright 360° coverage for vehicles and equipment. IP67 waterproof, ECE R65 and SAE Class 1 certified, with dimming and synchronisation features.Availability Description
This warning Beacon is part of our standard product line and is typically held in stock for immediate availability. In the event that this item is temporarily out of stock, please contact our sales team directly. These beacons are restocked quickly to ensure minimal delay in fulfilling your order.U3-24 24W Compact Amber LED Beacon – IP67 Rated Square Warning Light
Model: U3-24-AA

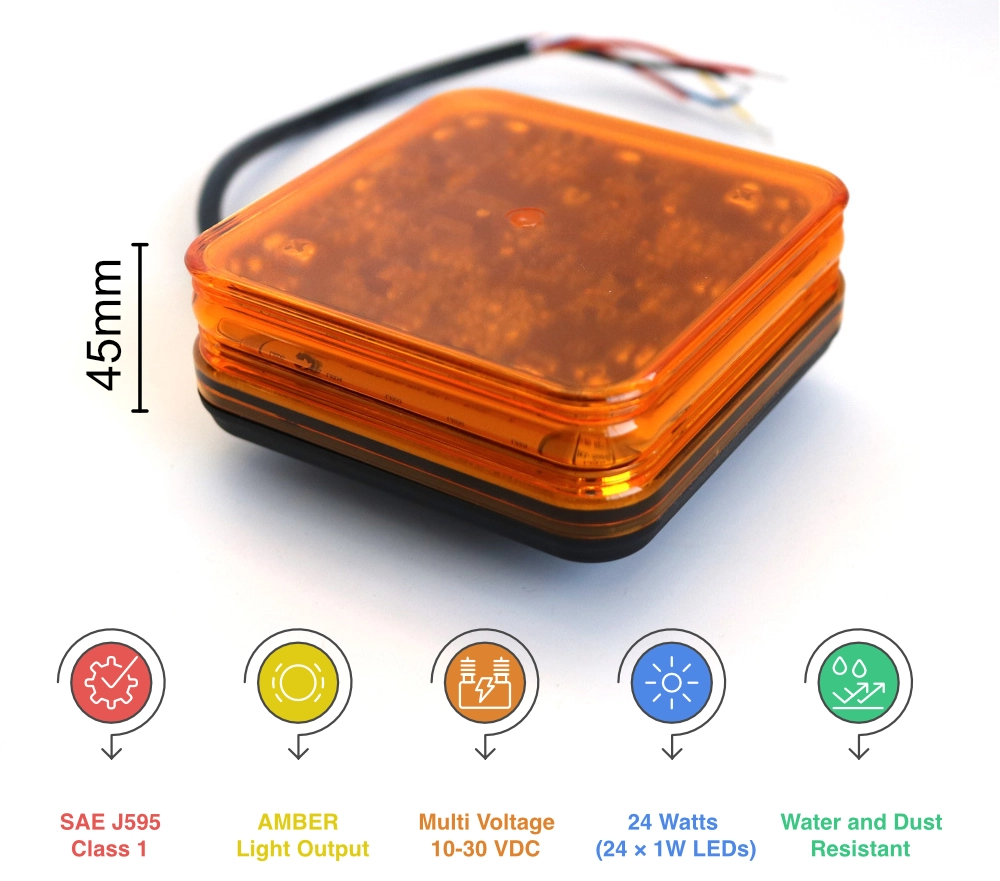

The U3-24 24W Compact Amber LED Beacon is designed for maximum visibility and durability in demanding Australian environments. Ideal for utes, trucks, plant machinery, pilot vehicles, OSOM transport and traffic control applications, this square beacon offers intense 360° illumination and multiple certified flash patterns.
It features 9 versatile modes including ECE R65 and SAE Class 1-compliant rotator, single, double and quad flashes. Built with a durable polycarbonate lens and aluminium base, the beacon is rated IP67 to withstand dust, water and harsh conditions. The compact 100mm x 100mm x 45mm form factor allows easy installation on space-limited vehicles or equipment.
Additional features include a dimming function for night operation and synchronisation for use with multiple units. Operating on 10–30V DC with low power consumption, the U3-24 delivers dependable performance with professional compliance.
(U3-24-AA)
3-YEAR WARRANTY
This LED Warning Beacon comes with a 3-year limited warranty, covering defects in materials and workmanship under normal use. If the product fails due to manufacturing issues, we will repair or replace it at no cost to you. The warranty does not cover damage from misuse, improper installation, or external factors such as accidents or natural disasters.
- Bright 360° Illumination: 24 high-intensity 1W LEDs provide amber light with full coverage.
- 9 Flash Patterns: Includes ECE R65 and SAE-compliant rotator, single, double and quad flashes.
- IP67 Waterproof: Sealed against dust and water for reliable outdoor performance.
- Dimming Function: Adjust brightness for day or night via white wire connection.
- Synchronisation Capability: Yellow wire enables coordinated flashing with multiple units.
- Compact Square Design: 100mm x 100mm x 45mm, perfect for tight installs.
- Durable Construction: Polycarbonate lens with robust aluminium base.
- Low Power Consumption: Operates efficiently on 10–30VDC.
- Certified Compliance: ECE R65 and SAE Class 1 standards for professional use.
Light Characteristics
- LED Power: 24 x 1W LEDs
- LED Colour: Amber
- Lens: Amber polycarbonate (PC)
- Light Output: 360° coverage
Electrical Characteristics
- Voltage: 10–30V DC
- Max Current: 2.0A @ 12VDC (flashing mode)
- Wiring:
- Red: Positive (+VDC)
- Black: Ground (Chassis)
- Blue: Flash pattern selection (momentary to Black/GND)
- Yellow: Synchronisation across units
- White: Dimming (connect to +VDC for reduced brightness)
Physical Characteristics
- Waterproof Rating: IP67
- Mounting: Surface mount with 2-point bolt-down base
- Dimensions: 100mm (L) x 100mm (W) x 45mm (H)
- Weight: Approx. 0.4kg
- Operating Temperature: -30°C to +50°C
Flash Patterns
- ECE R65 Rotator Flash (120 FPM)
- ECE R65 Single Flash (120 FPM)
- ECE R65 Double Flash (120 FPM)
- ECE R65 Quad Flash (120 FPM)
- SAE Rotator Flash (75 FPM)
- SAE Single Flash (75 FPM)
- SAE Double Flash (75 FPM)
- SAE Quad Flash (75 FPM)
- Off
Flash Pattern Selection
- Blue to Black wire:
- <1 second: Next pattern
- >1 second: Previous pattern
- >5 seconds: Turn off
Certifications
- ECE R65 Class 1
- SAE J845 Class 1
Availability
The U3-24 LED Beacon is currently available in limited supply. If you're looking to outfit your fleet or require a square compact beacon, we recommend securing stock now. Contact us for bulk orders or trade pricing while units remain available.
| SKU | U3-24-AA |
| Barcode # | 2020124228003 |
| Brand | UAG Services |
| Shipping Weight | 0.3600kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.070m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.001456000m3 |
| Unit Of Measure | ea |
