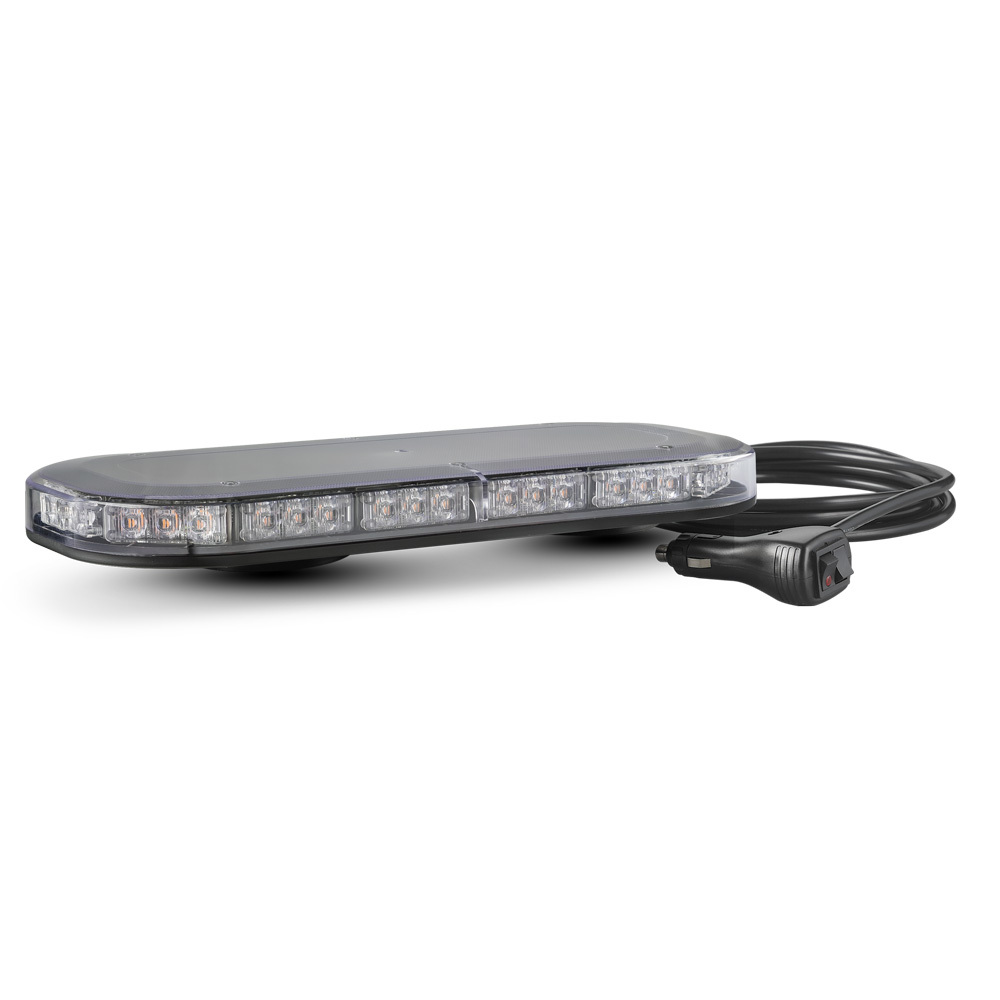

LB380ACMM Amber LED Magnetic Warning Mini Light Bar is a compact 380mm vehicle-mounted warning light designed to support vehicle visibility in traffic control, civil, utility, council and mobile works environments. Its magnetic suction cup mounting system provides a temporary rooftop warning light solution where a removable warning light is preferred.

This model features magnetic suction cup mounting with an integrated 3 metre cable and plug incorporating an on/off and flash pattern selection switch. It is suited to temporary installation on compatible steel vehicle roofs where a removable amber warning light is required.

The LB380ACMM operates across a 10–30V DC voltage range and uses 42 x 1W LEDs with 18 selectable flash patterns. The supplied product data also lists synchronisation capability when multiple compatible units are configured together.

The compact low-profile housing uses a polycarbonate lens with an ABS housing and is rated to IP67 ingress protection for demanding outdoor operating environments. Supplied product data states 360° omnidirectional amber warning output.

The supplied product data lists SAE J845 Class 1 compliance together with ECE R65 and ECE R10 approvals.

Commonly used on traffic management vehicles, civil fleet vehicles, utility vehicles, maintenance vehicles and council fleets where a removable rooftop warning light is required. Vehicle lighting requirements may vary by vehicle type, registration category, jurisdiction and intended use.

Vehicle warning systems support visibility but do not replace a traffic management plan or traffic guidance scheme. Selection, installation and operation should align with the relevant vehicle setup, operating conditions and project requirements.

Magnetic LED Warning Light Bar FAQs

How is the LB380ACMM mounted?

This model uses magnetic suction cups for temporary mounting to compatible steel vehicle roofs.

Does this light bar include a plug?

Yes. It includes a 3 metre cable with an integrated plug featuring on/off and flash pattern selection controls.

How many flash patterns are available?

The supplied product data lists 18 selectable flash patterns.

Can multiple LB380ACMM light bars be synchronised?

Yes. The supplied operating instructions describe synchronisation of multiple compatible units.

What standards are listed for this model?

The supplied product data lists SAE J845 Class 1 together with ECE R65 and ECE R10.

Can this magnetic light bar remain fitted while driving?

The supplied operating instructions state that the magnetic suction mount is intended for temporary use only and includes a warning that the magnetic warning lamp has been rated for use at speeds not exceeding 100 km/h. Users should always follow the manufacturer's instructions and ensure the unit is securely mounted before operation.
