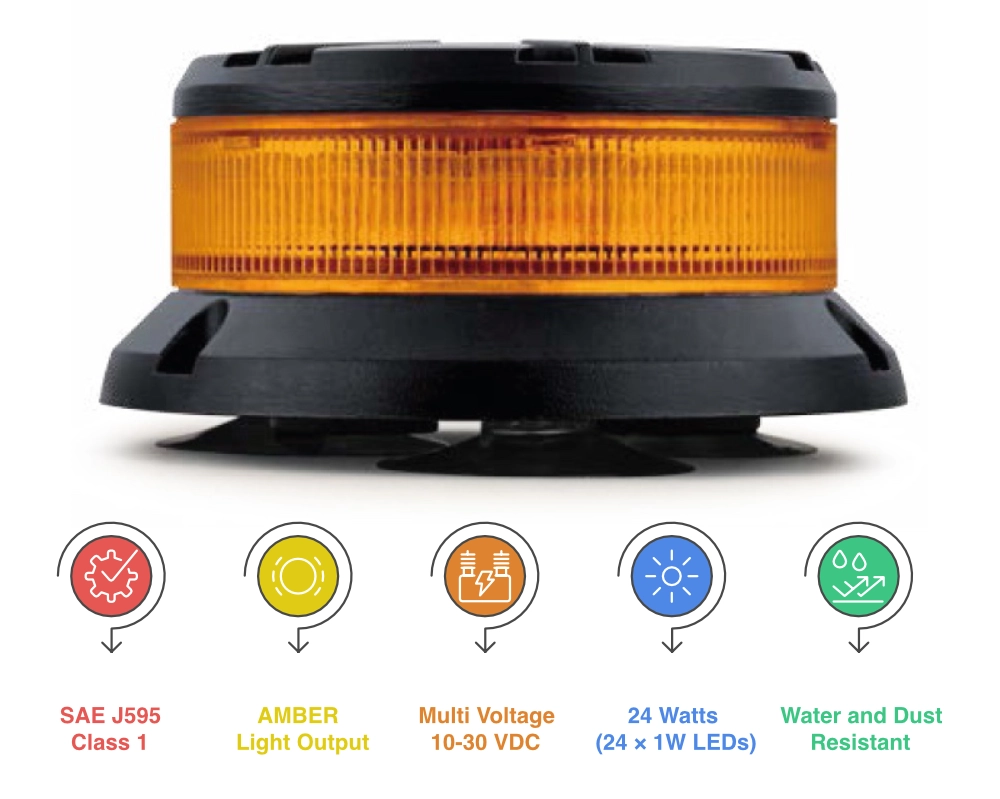

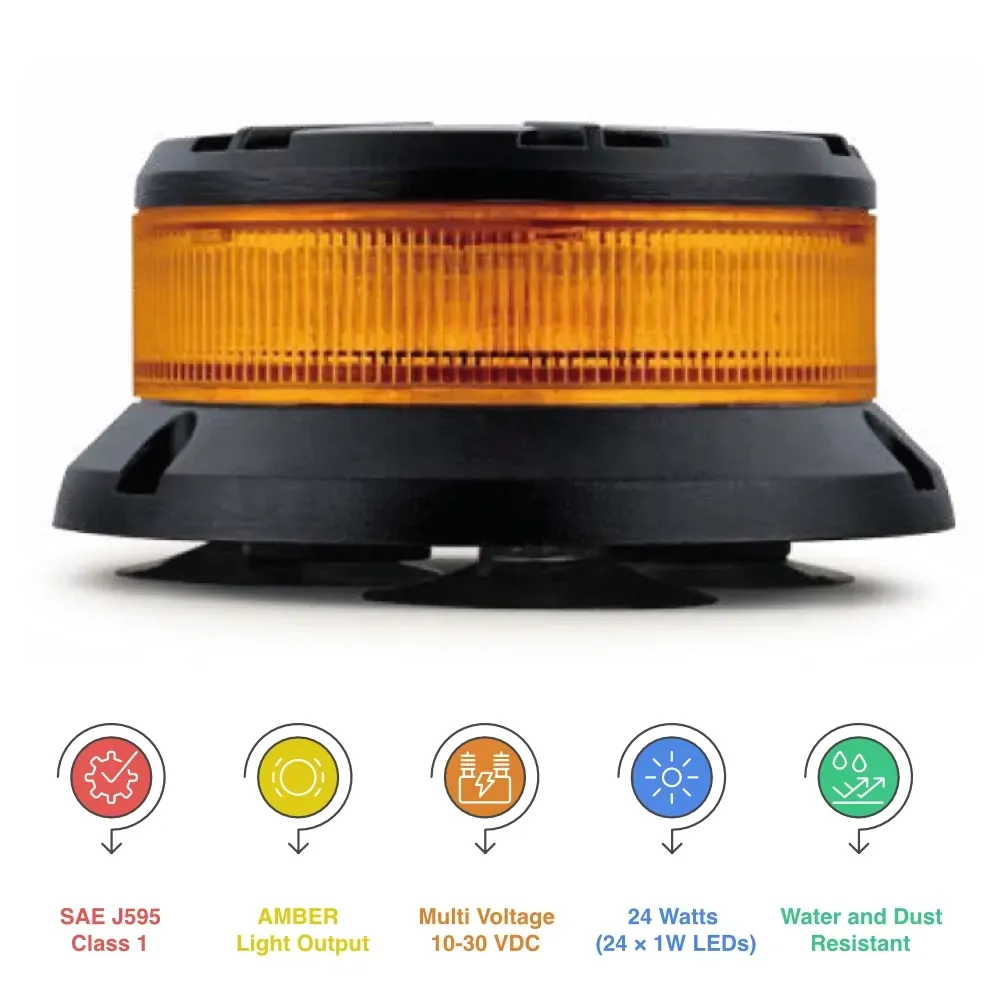

24W Amber Compact LED Warning Beacon Magnetic/Fixed
Quick Description
Class 1 24W Amber Compact LED Warning Beacon offers bright, 360-degree illumination with 8 flash patterns. Its low-profile aluminium alloy design ensures durability, while magnetic or fixed mounting provides versatility for vehicles and equipment.Availability Description
The FD24 Mini LED Warning Beacon is available in limited supply only. This model will not be restocked once current inventory is sold out. If you require this specific unit for your fleet or application, we recommend placing your order promptly to avoid missing out.FD24 MINI 24W LED Warning Beacon
Mount Type: Magnetic or Suction Cup
Model: FD24 Mini
Illuminate your workspace with the FD24 Mini 24W Amber Compact LED Warning Beacon, engineered for maximum visibility and durability in demanding Australian conditions. This low-profile beacon delivers powerful 360-degree light output, ideal for utes, trucks, plant machinery, traffic control, and pilot vehicles.
Constructed with a robust aluminium alloy housing and a high-transmittance PMMA lens, it ensures consistent brightness and long-lasting performance. With 8 versatile flash patterns (including rotating and strobe modes) and an easy-to-use cigarette plug for pattern selection, it offers reliable warning performance on the go.
Certified to SAE J845 and ECE R65 Class 1 standards, the FD24 Mini meets professional-grade compliance and safety. It is available with magnetic or fixed mounting for simple, secure installation.

(FD24MINI)
3-Year Warranty
The 24W Amber Compact LED Warning Beacon comes with a 3-year warranty, ensuring peace of mind for your investment. This warranty covers defects in materials and workmanship under normal use. If any issues arise, contact our customer service team at UAG Services for prompt assistance. Proof of purchase is required for warranty claims. Note that the warranty does not cover damage due to misuse, improper installation, or external factors such as accidents or natural disasters.
- High-Intensity Illumination: 24W output with 24 x 1W LEDs for bright, 360-degree visibility, ideal for day or night use.
- Versatile Flash Patterns: 8 customisable patterns including rotating and strobe, easily controlled via cigarette plug.
- Durable Construction: Aluminium alloy housing and PMMA lens with 92% light transmittance for long-lasting performance.
- Compact and Low-Profile: 110mm diameter and 47.5mm height, suitable for tight spaces or height-restricted installs.
- Flexible Mounting: Magnetic or bolt-down mounting options for easy attachment to vehicles or machinery.
- Certified Safety: Complies with SAE J845 and ECE R65 Class 1 standards for professional use.
- Weatherproof Design: IP68 rating ensures resistance to dust, water and extreme temperatures (-30°C to +70°C).
- Energy Efficient: Low current draw for reliable operation without draining your vehicle’s system.
Light Characteristics
- LED Power: 24W (24 x 1W LEDs)
- LED Lifespan: 100,000 hours
- Lens: Reflex PMMA with 92% transmittance
- Flash Settings: 1–4Hz (8 patterns including rotating and strobe)
- Light Output: 360-degree coverage
Electrical Characteristics
- Voltage: DC 10–33V
- Max Power: 24W
- Current Draw: Low power consumption for efficient operation
- Wiring: 3-core (18AWG x 3C, 3m length) with A13-163 cigarette lighter plug for on/off and pattern control
Physical Characteristics
- Colour: Amber
- Materials: Aluminium alloy housing and top hat, PMMA lens

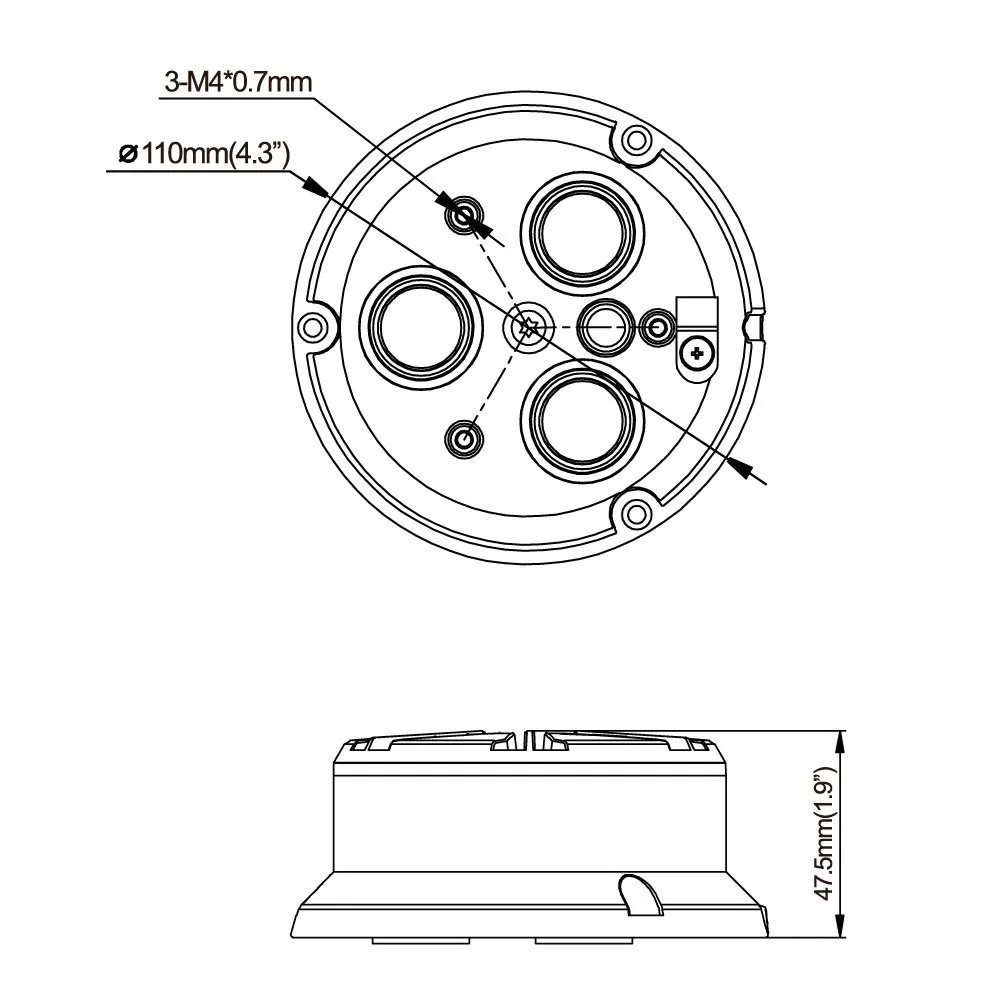

- Dimensions: 110mm (diameter) x 47.5mm (height)
- Mounting: Magnetic or bolt-down (with foam gasket)
- Waterproof Rating: IP68
- Operating Temperature: -30°C to +70°C
- Weight: Lightweight design for easy handling
Certifications
- SAE J845 Class 1
- ECE R65 TA1 00 0064
- ECE R65 TB1 00 0065
Applications
- Suitable for utes, trucks, plant machinery, equipment, traffic control, pilot vehicles and OSOM vehicles.
SKU | FD24MINI |
Barcode # | 2020124227938 |
Brand | 911 Signal |
Shipping Weight | 0.6000kg |
Shipping Width | 0.120m |
Shipping Height | 0.100m |
Shipping Length | 0.120m |
Shipping Cubic | 0.001440000m3 |
Unit Of Measure | ea |
